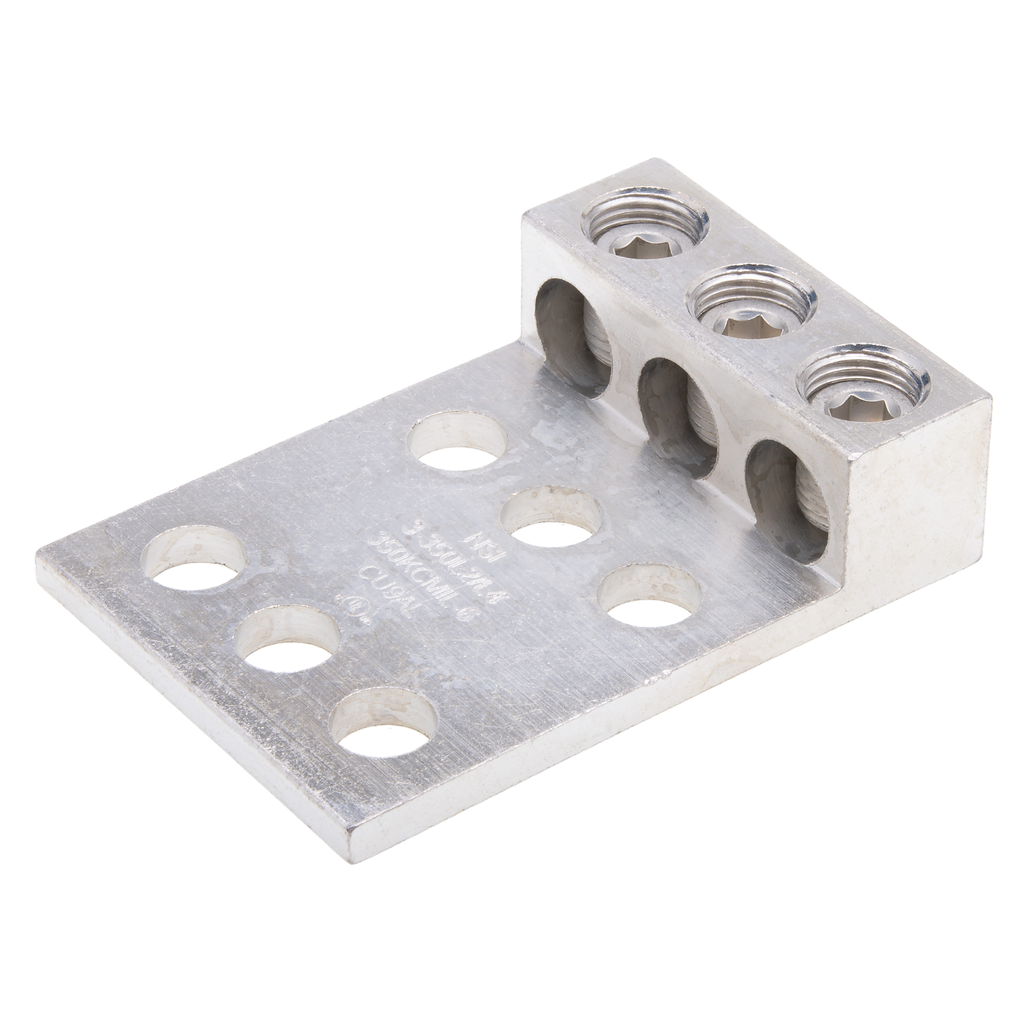

Nema Panel Lug (3)350-6 – Panelboard Lug for Electrical Distribution

This Nema Panel Lug (3)350-6 is designed for wire termination in electrical distribution systems, suitable for use by electrical distributors and switchgear suppliers. It supports multi-conductor connections with NEMA mounting hole spacing, ensuring secure and reliable terminations for wire and cable applications in panelboards. The lug is compatible with both copper and aluminum conductors and rated for 600 volts, making it appropriate for a range of lighting solutions and electrical installations.

Specifications

• Application: Wire Termination
• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Voltage Rating: 600 volts (2000 volts max per UL486B)
• Temperature Rating: 90 degrees Celsius
• Dimensions (L x W x H): 4.25 in x 2.92 in x 1.13 in
• Order Minimum: 1
• Product Weight: 1.3 lbs
• UL Listings: UL 486A/B Listed, cULus Listed Wire Connector
• Mounting Hole Spacing: NEMA standard 1.750 inches
• Country of Origin: United States
• Manufacturer: NSI Industries
• Manufacturer Part Number: 3-350L2/L4

Features

• Panelboard style lug designed for multi-conductor connections
• Electro-tin plated surface for low contact resistance
• Compatible with copper or aluminum conductors
• Provides secure mounting with NEMA standard hole spacing to prevent turning
• Made in USA with durable 6061T-6 aluminum alloy construction
