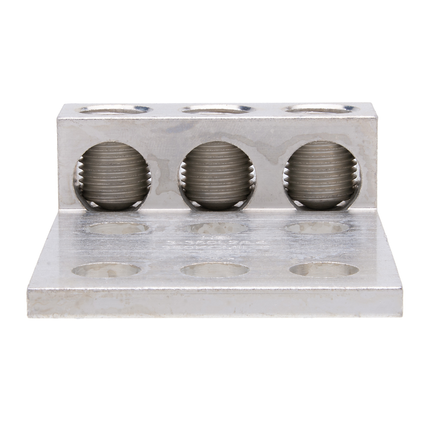

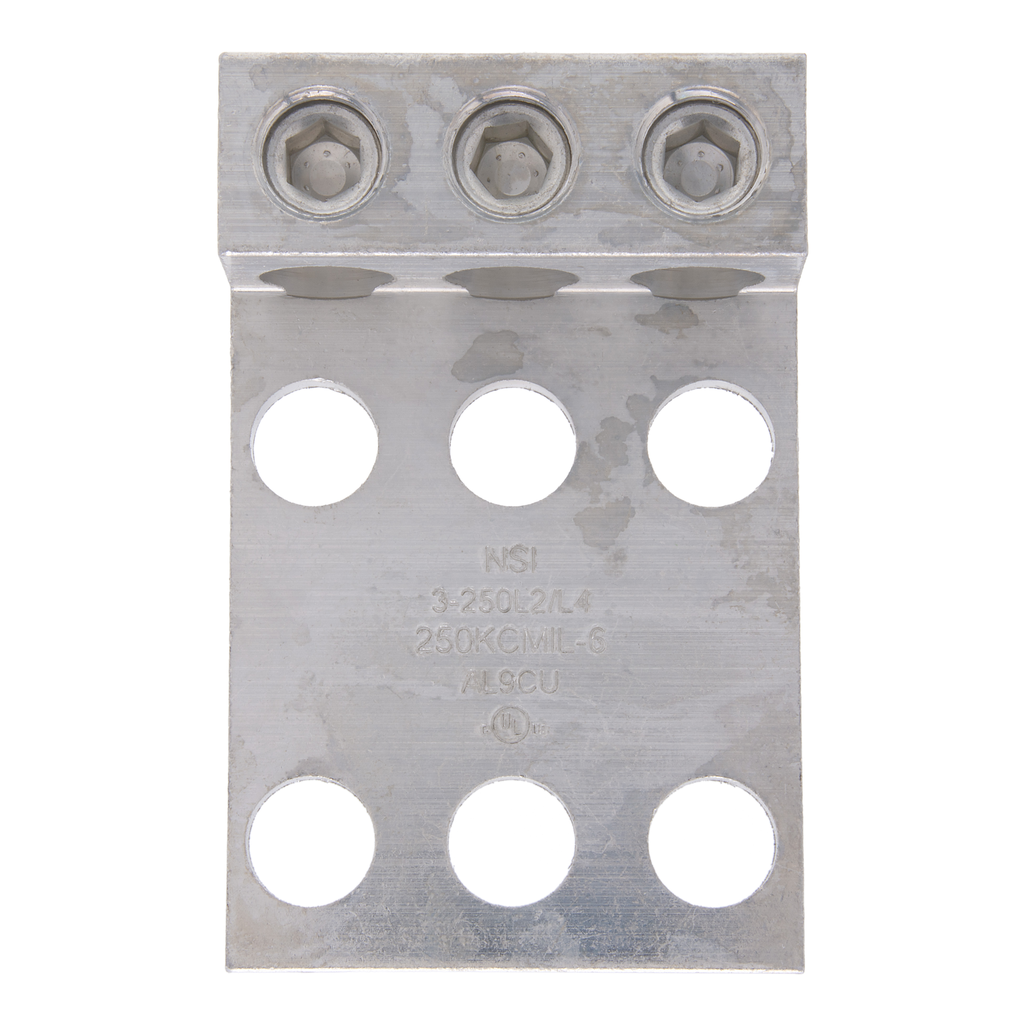

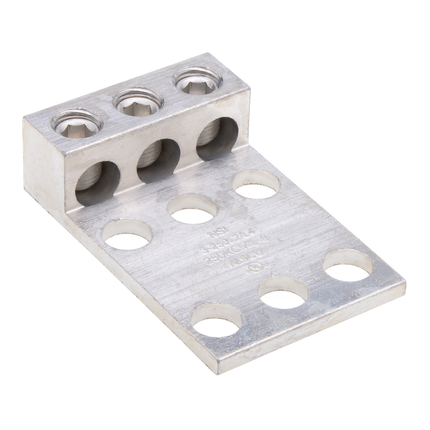

Nema Panel Lug (3)250-6
SKU: #303462
Part: #3-250L2/L4
UPC: 662381001504
Nema Panel Lug (3)250-6
SKU: #303462
Part: #3-250L2/L4
UPC: 662381001504
Description

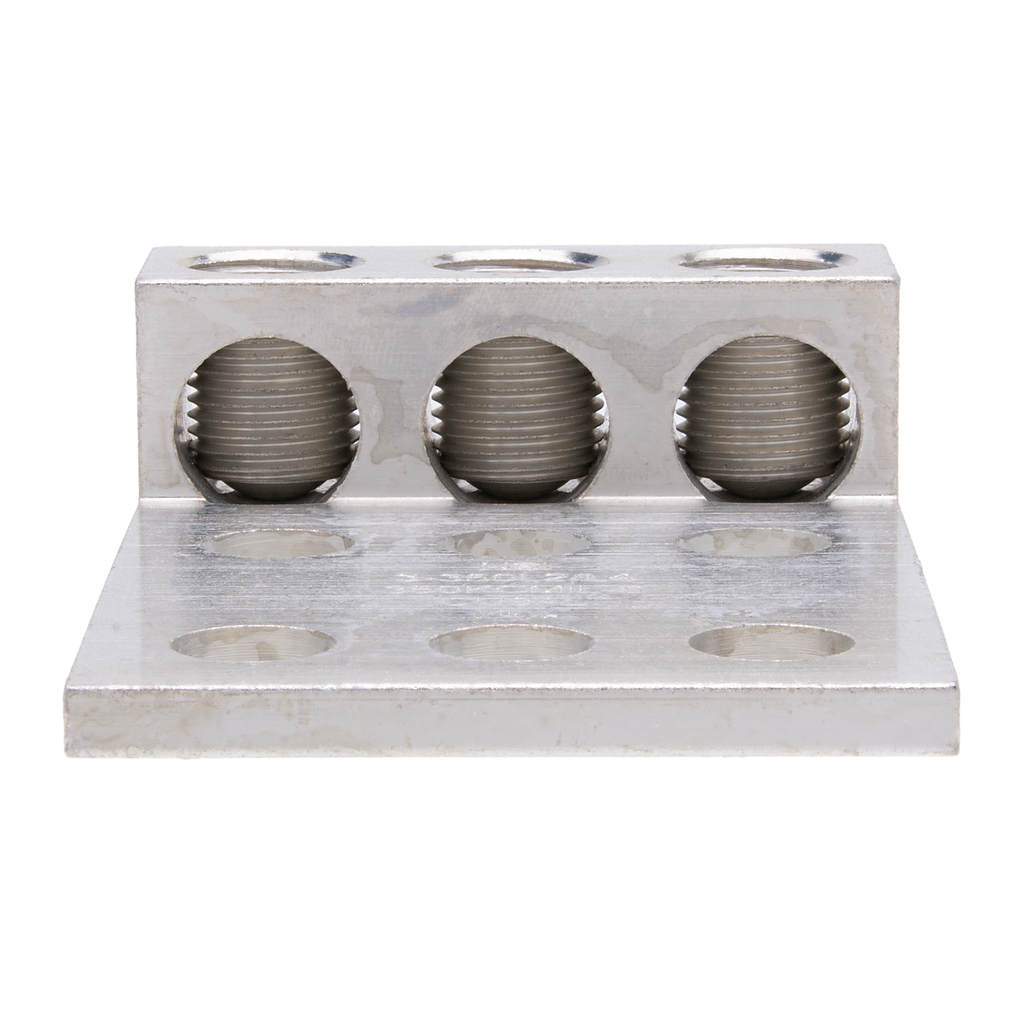

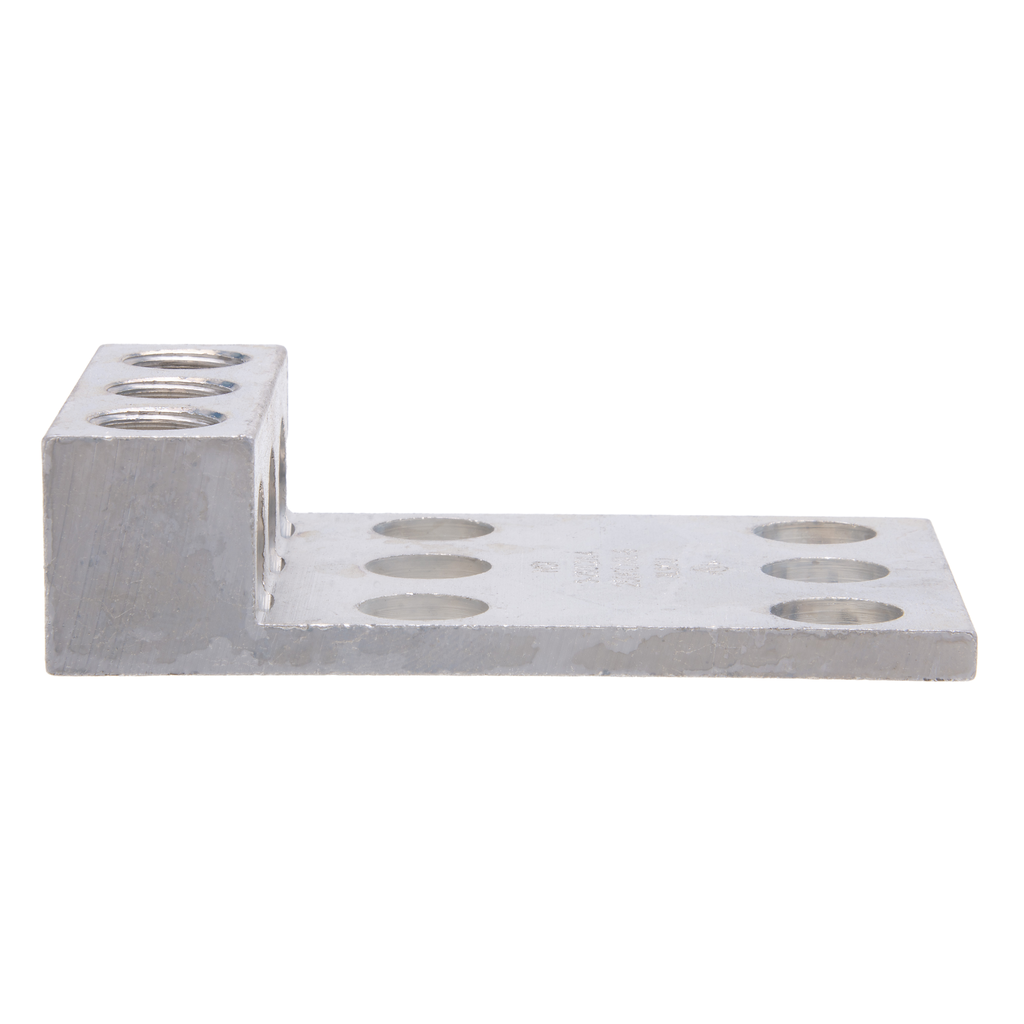

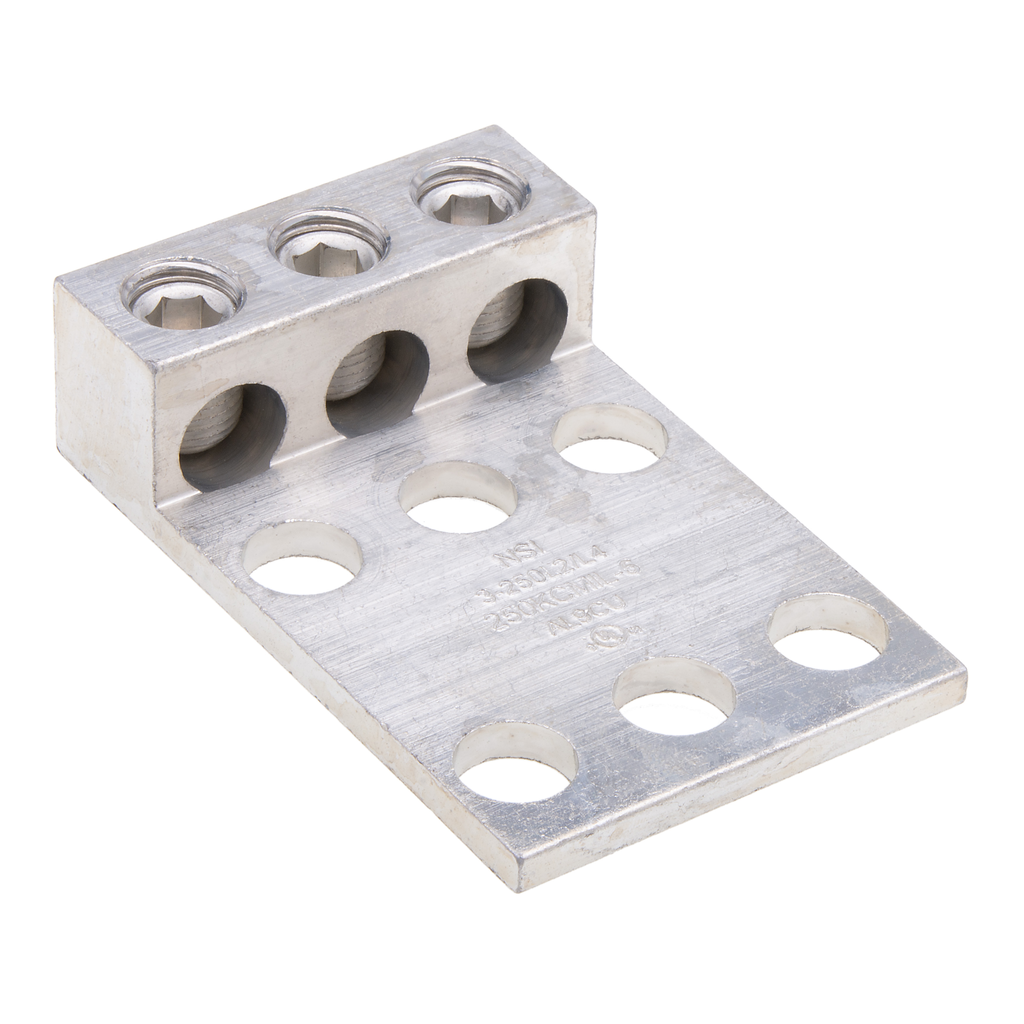

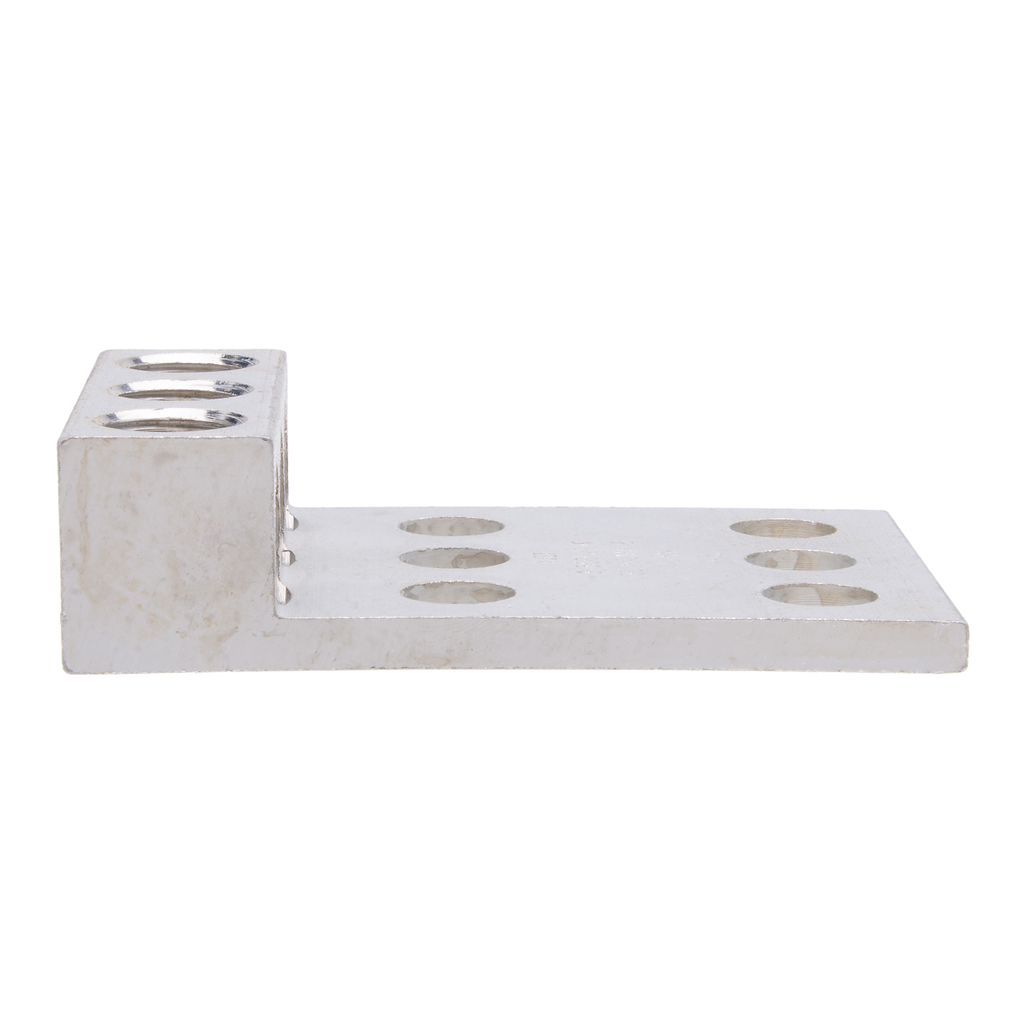

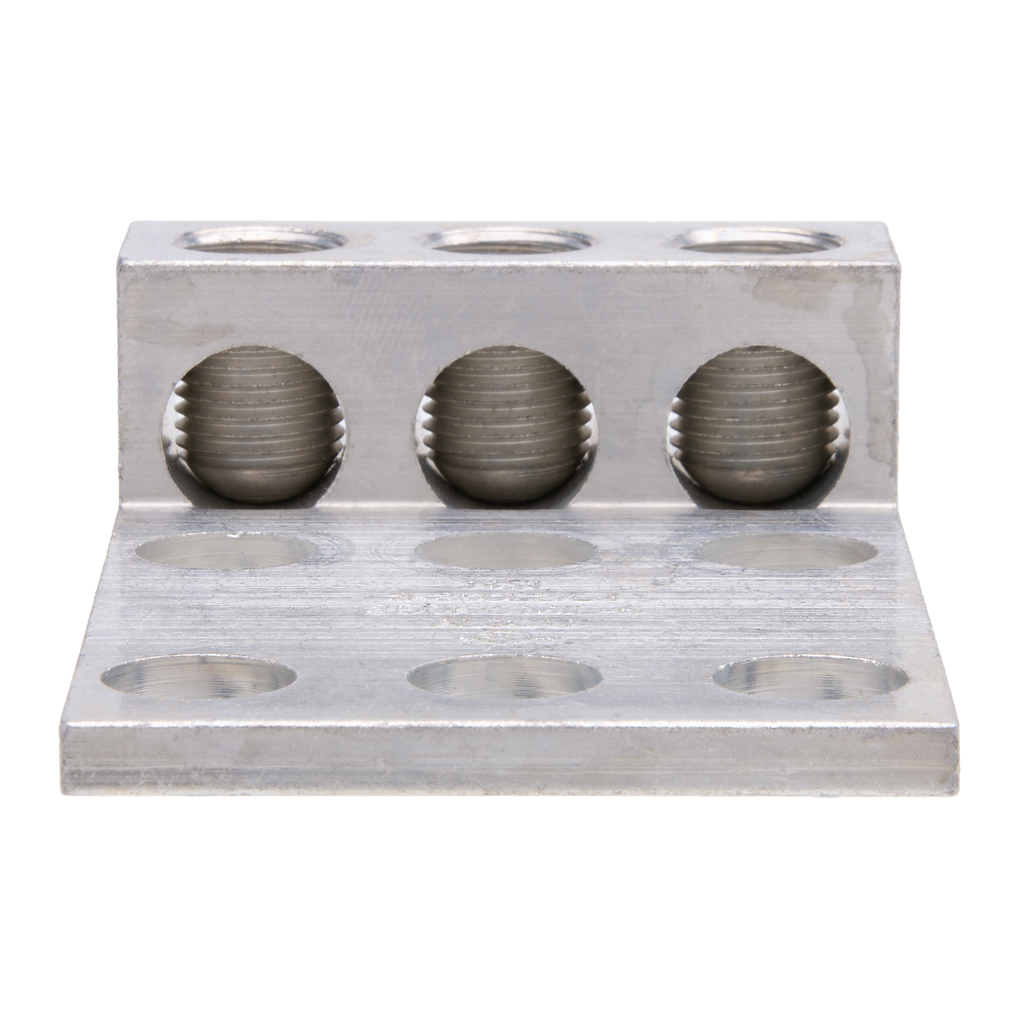

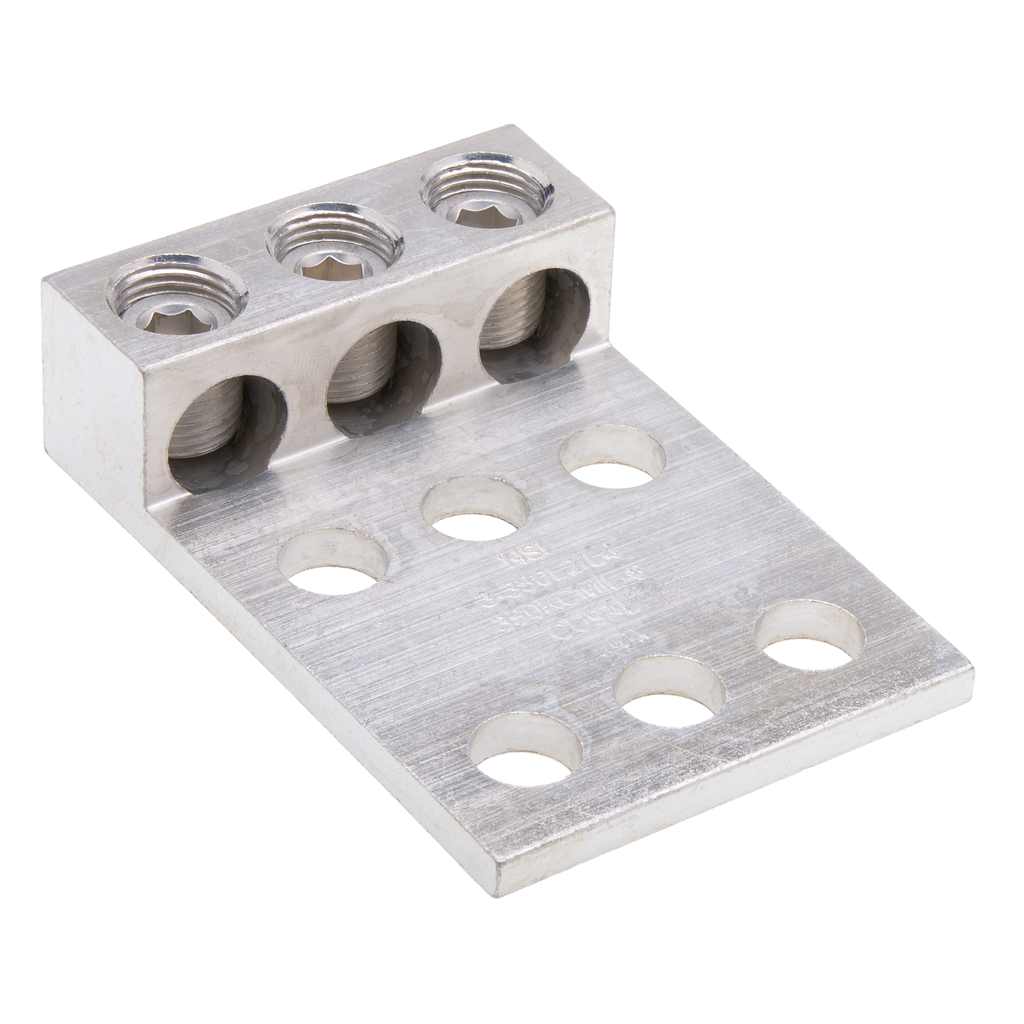

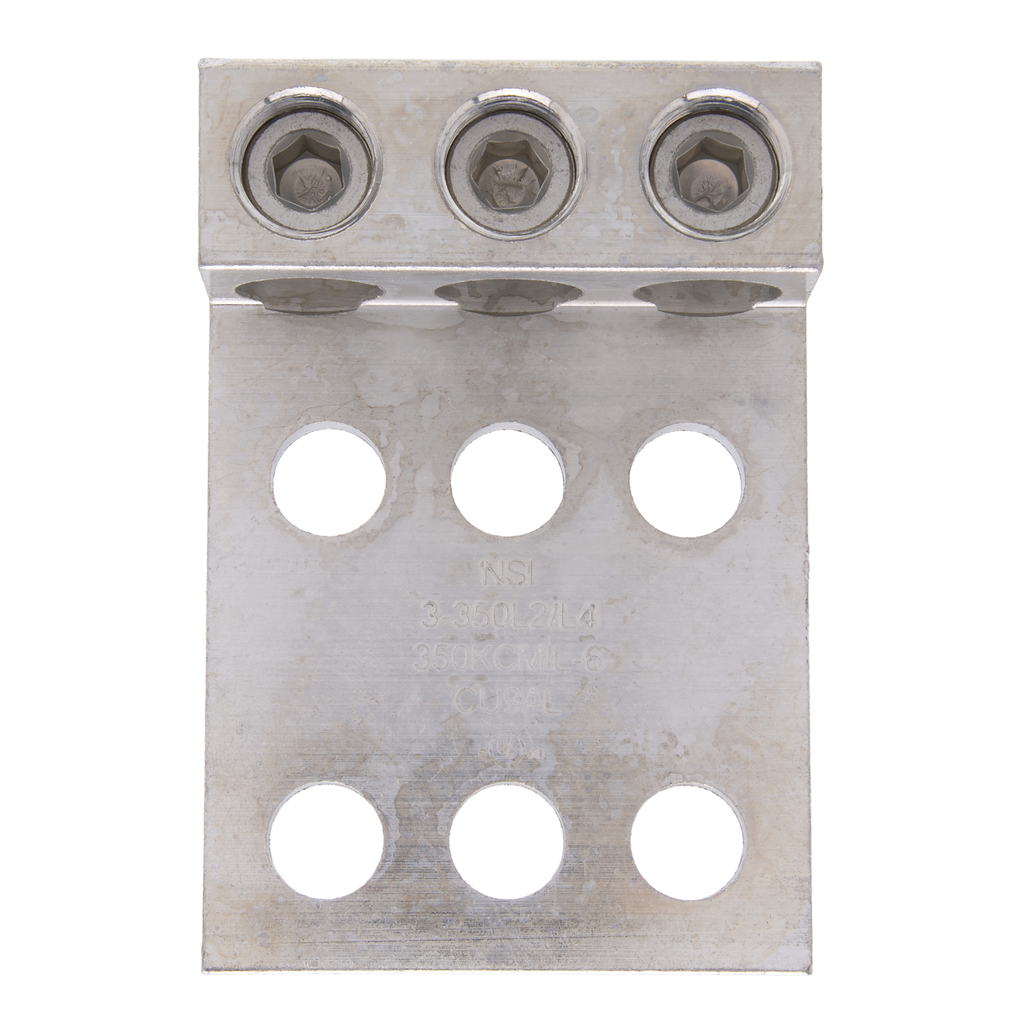

Nema Panel Lug (3)250-6 Panelboard Lug
This Nema Panel Lug is designed for wire termination applications in electrical distribution and lighting solutions. It is suitable for use with copper or aluminum conductors and features NEMA mounting hole spacing for secure installation. The lug is rated for 600 volts and complies with UL 486A/B standards, making it a reliable component for panelboard and switchgear assemblies.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Dimensions: 3.88 in (Length) x 2.5 in (Width) x 1.02 in (Height)
- Maximum Temperature Rating: 90 degrees Celsius
- Voltage Rating: 600 volts (2000V max per UL486B)
- Application: Wire Termination
- Manufacturer Part #: 3-250L2/L4
- Environmental Conditions: 90 C
- Country of Origin: United States
- Product Weight: 1.47 lbs
Features
- Electro-tin plated for low contact resistance
- Panelboard style for multi-conductor use
- NEMA standard hole spacing of 1.750" for turn prevent and secureness
- UL 486A/B Listed
- Compatible with copper and aluminum conductors
- Made in USA
