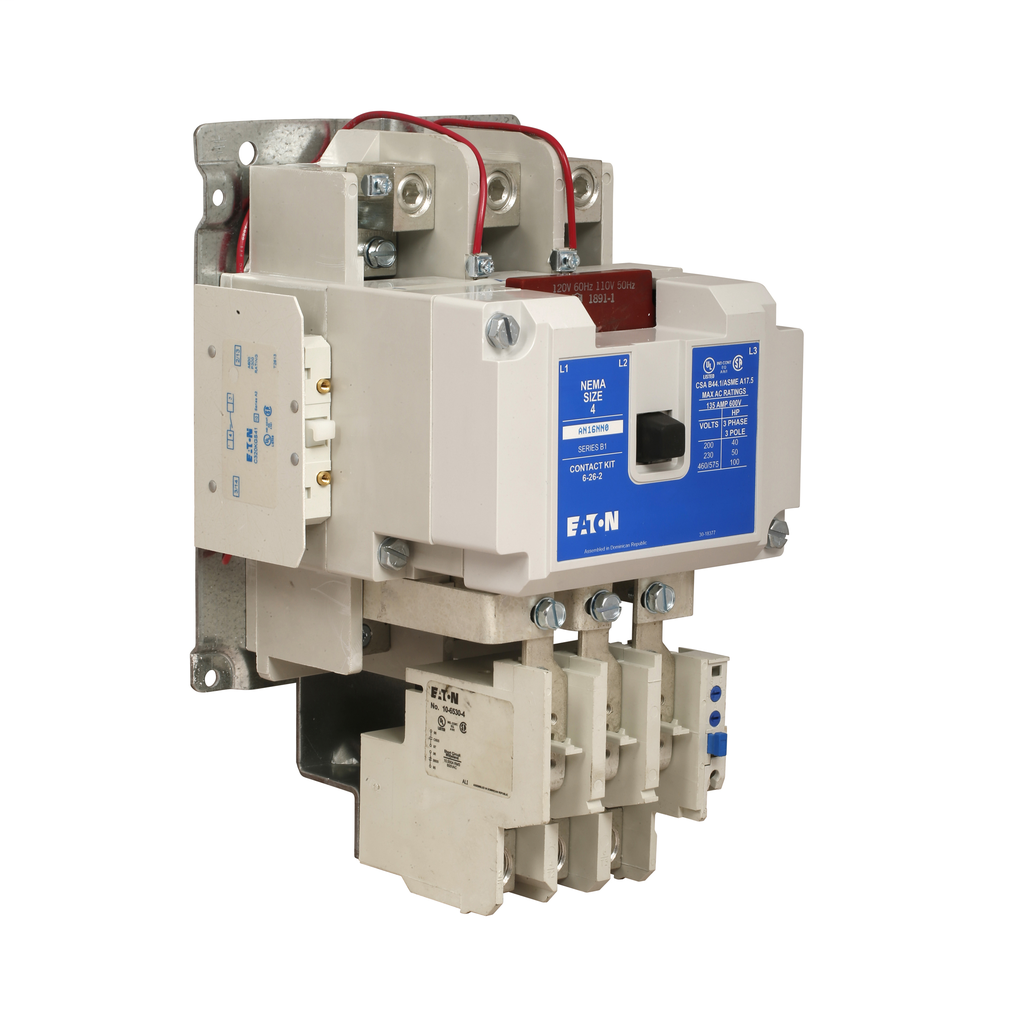

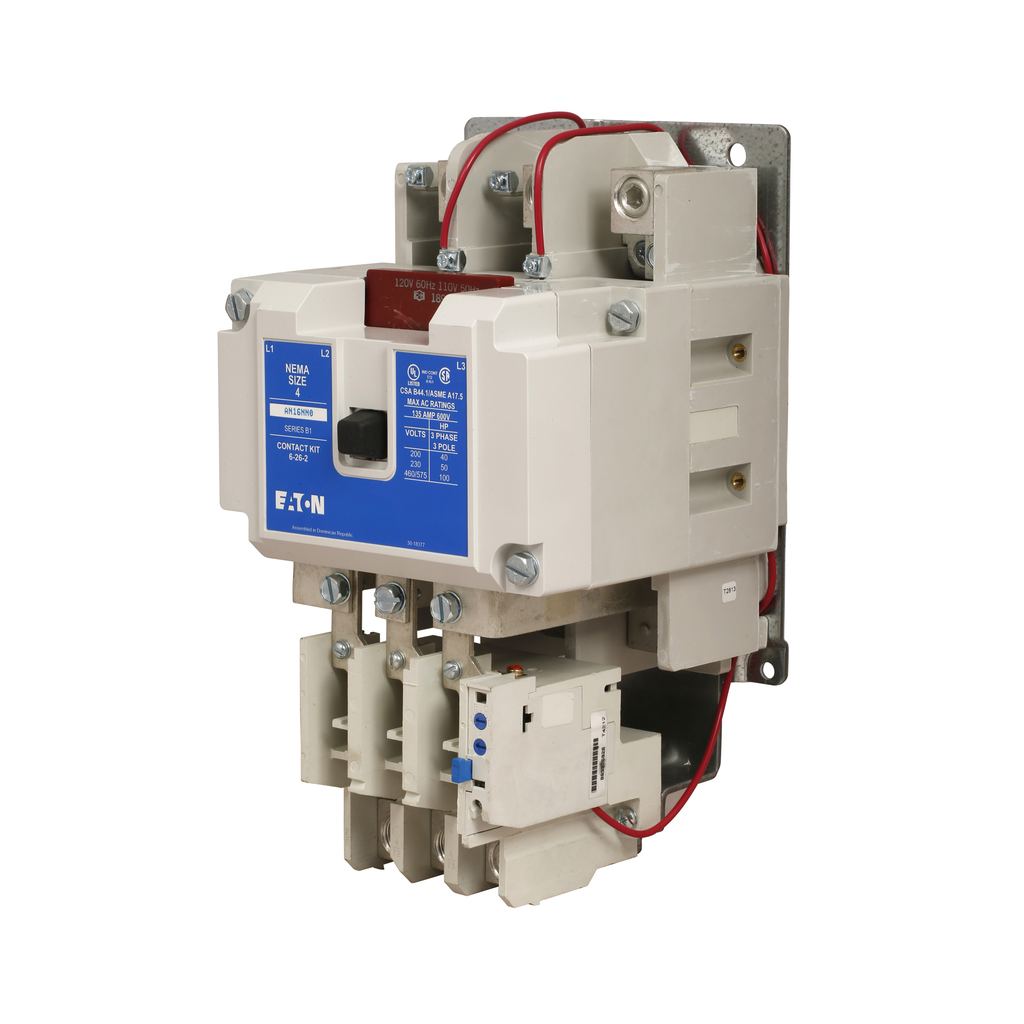

NEMA Freedom Series Non-Reversing Reset Overload Relay Starter
SKU: #394717
Part: #AN16NN0A
UPC: 782113604114
NEMA Freedom Series Non-Reversing Reset Overload Relay Starter
SKU: #394717
Part: #AN16NN0A
UPC: 782113604114
Description
NEMA Freedom Series Non-Reversing Reset Overload Relay Starter – Electrical Starter
The NEMA Freedom Series Non-Reversing Reset Overload Relay Starter by Cutler-Hammer is a three-phase, full voltage magnetic starter designed for switching AC motor loads in industrial and construction applications. This starter features bimetallic ambient compensated overload relays with interchangeable heater packs adjustable ±24% to match motor full load amperage (FLA), and selectable manual or automatic reset operation. It is suitable for electrical distributors and switchgear suppliers providing reliable motor protection and control solutions.
Specifications
- Manufacturer: Cutler-Hammer
- Manufacturer Part #: AN16NN0A
- Amperage: 135 amperes
- Horsepower: 100 horse power
- Number of Poles: 3
- Number of Phases: 3
- Mounting Type: Horizontal
- Product Weight: 23.1 lbs
Features
- Bimetallic ambient compensated overload relays
- Interchangeable heater packs adjustable ±24% for motor FLA matching
- Selectable manual or automatic reset operation
- Single-phase protection with Class 20 or Class 10 trip time
- Overload trip indication
- Electrically isolated normally open and normally closed contacts with reset button test
- Three-phase, full voltage magnetic starter suitable for industrial motor control
