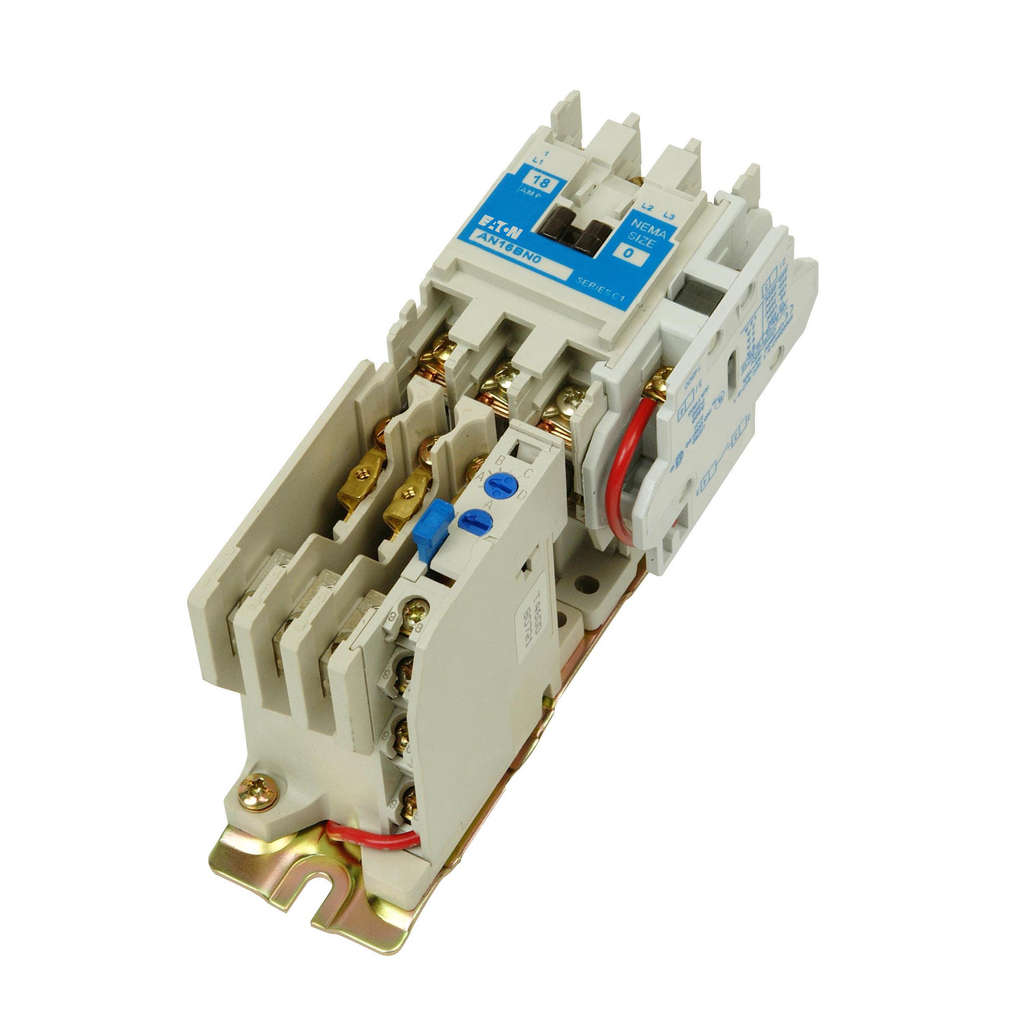

NEMA Freedom Series Non-Reversing Reset Overload Relay Starter – Electrical Starter

The NEMA Freedom Series Non-Reversing Reset Overload Relay Starter is designed for three-phase motor control applications, providing reliable overload protection and motor starting functionality. This product is suitable for electrical distributors and switchgear suppliers requiring robust and adjustable starters for industrial, HVAC, and pump systems. It features a bimetallic ambient compensated overload relay with selectable manual or automatic reset operation, enhancing motor protection and operational flexibility.

Specifications

• Name: NEMA Freedom Series Non-Reversing Reset Overload Relay Starter
• Amperage: 18 amperes
• Number of Poles: 3
• Number of Phases: 1
• Mounting Type: Horizontal
• Product Weight: 2.0000 lbs
• Manufacturer: B-Line
• Manufacturer Part #: AN16BN0CC
• UPC: 782113971582

Features

• Three-phase, full voltage magnetic starter for AC motor loads
• Bimetallic ambient compensated overload relay with adjustable heater packs (±24% to match motor FLA)
• Selectable manual or automatic reset operation
• Single-phase protection with Class 20 or Class 10 trip time
• Overload trip indication
• Electrically isolated normally open (NO) and normally closed (NC) contacts with reset button test functionality
• Horizontal mounting for flexible installation
