NEMA 1 SC121204STRC Grand Slam Junction Box

The NEMA 1 SC121204STRC Grand Slam Junction Box by RACO is designed for efficient termination of home runs and other electrical wiring in commercial applications. This surface-mounted junction box integrates patented STAB-IT® clamps for quick installation of flex, MC, MCI, MCI-A, HCF, AC, and EMT cables. It provides flexibility and ample space for wiring needs, making it suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable management solutions.

Specifications

• Dimensions: 12" x 12" x 4"
• Mounting Type: Surface Mounted
• Built-in STAB-IT® Clamps: 6 clamps for 14/2 to 10/3 cables

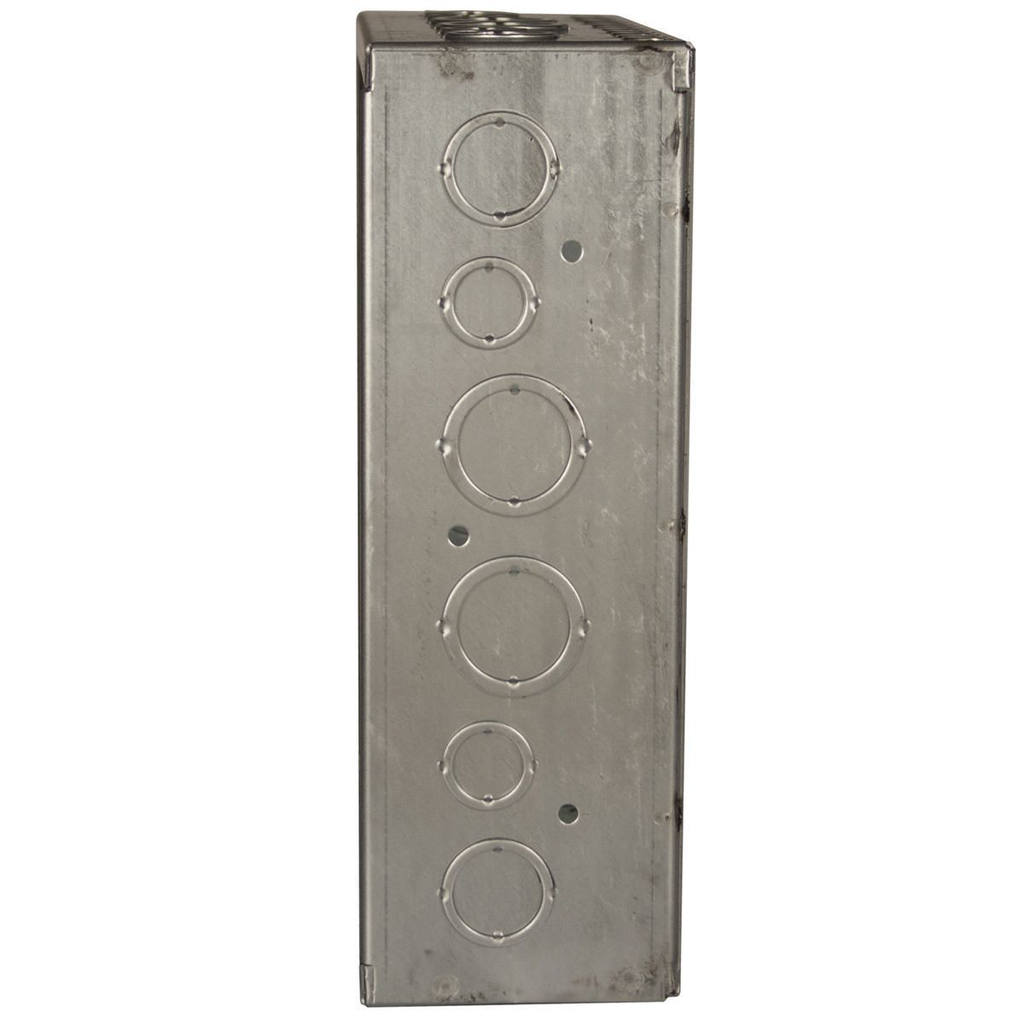

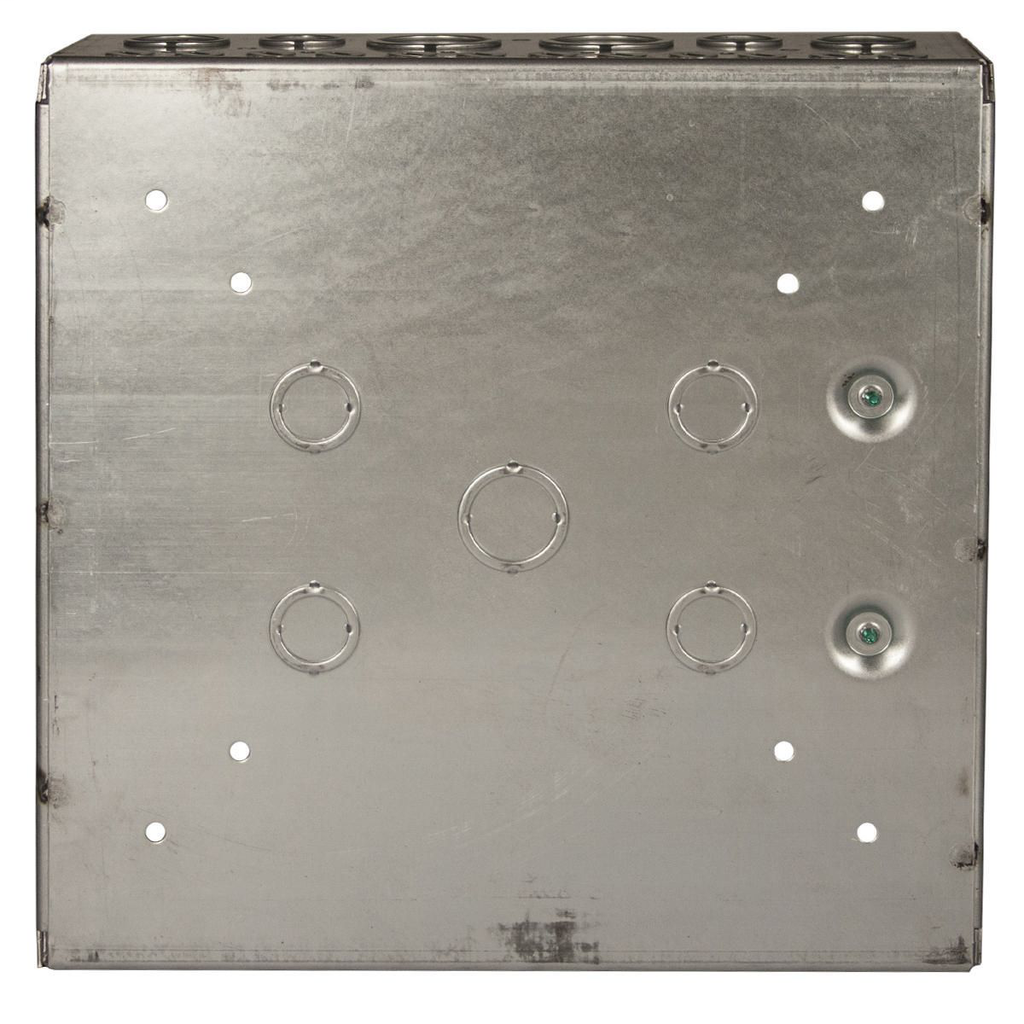

• Knockouts: (12) 1/2" & 3/4" concentric, (9) 3/4" & 1" concentric, (8) 1" & 1-1/4" concentric
• Cubic Inch Capacity: 546
• Manufacturer: RACO
• Manufacturer Part Number: SC121204STRC

Features

• Patented STAB-IT® clamp tested over 3 times faster than traditional MC connectors
• Quick installation for multiple cable types including flex, MC, MCI, MCI-A, HCF, AC, and EMT
• Surface mount cover and ground bar included for installation flexibility
• Two raised grounds for enhanced grounding options
• Concentric knockouts on side and back for easy cable access
• UL Listed for safety and compliance
