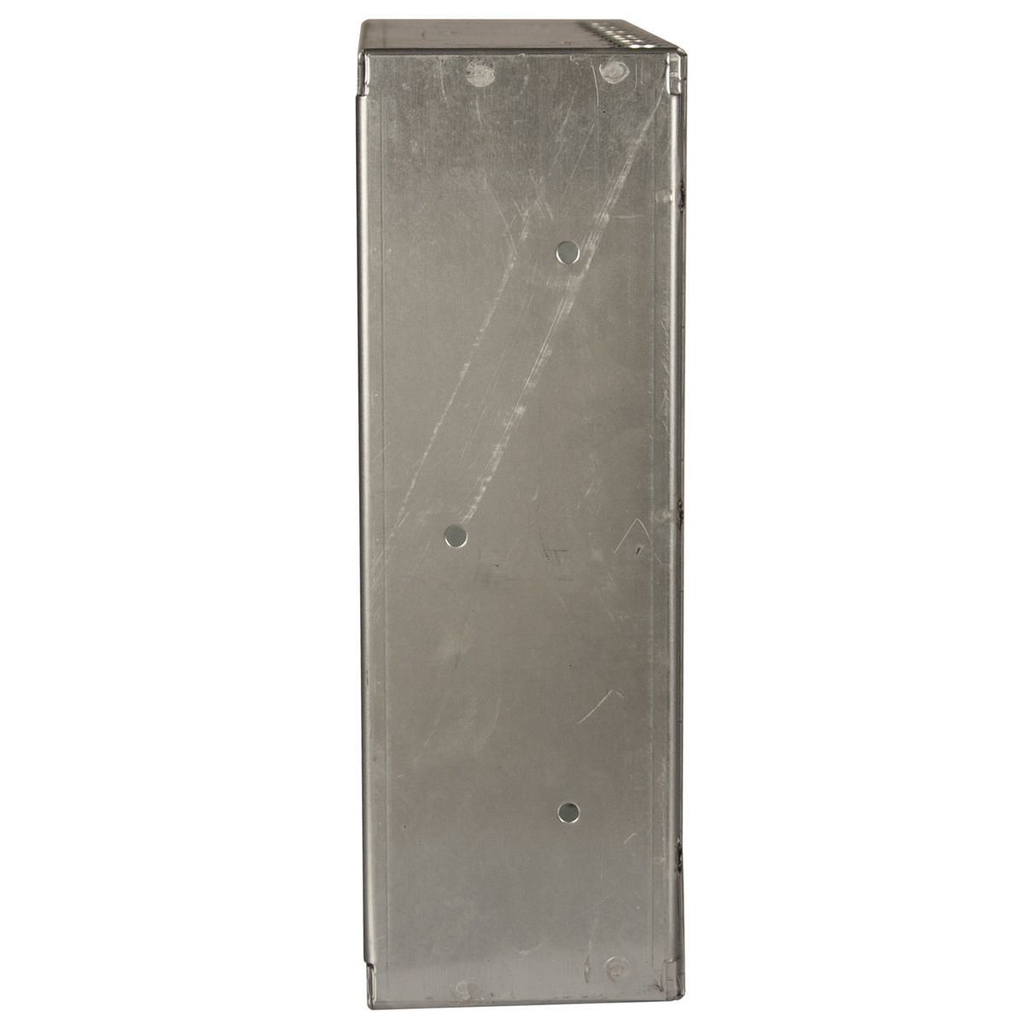

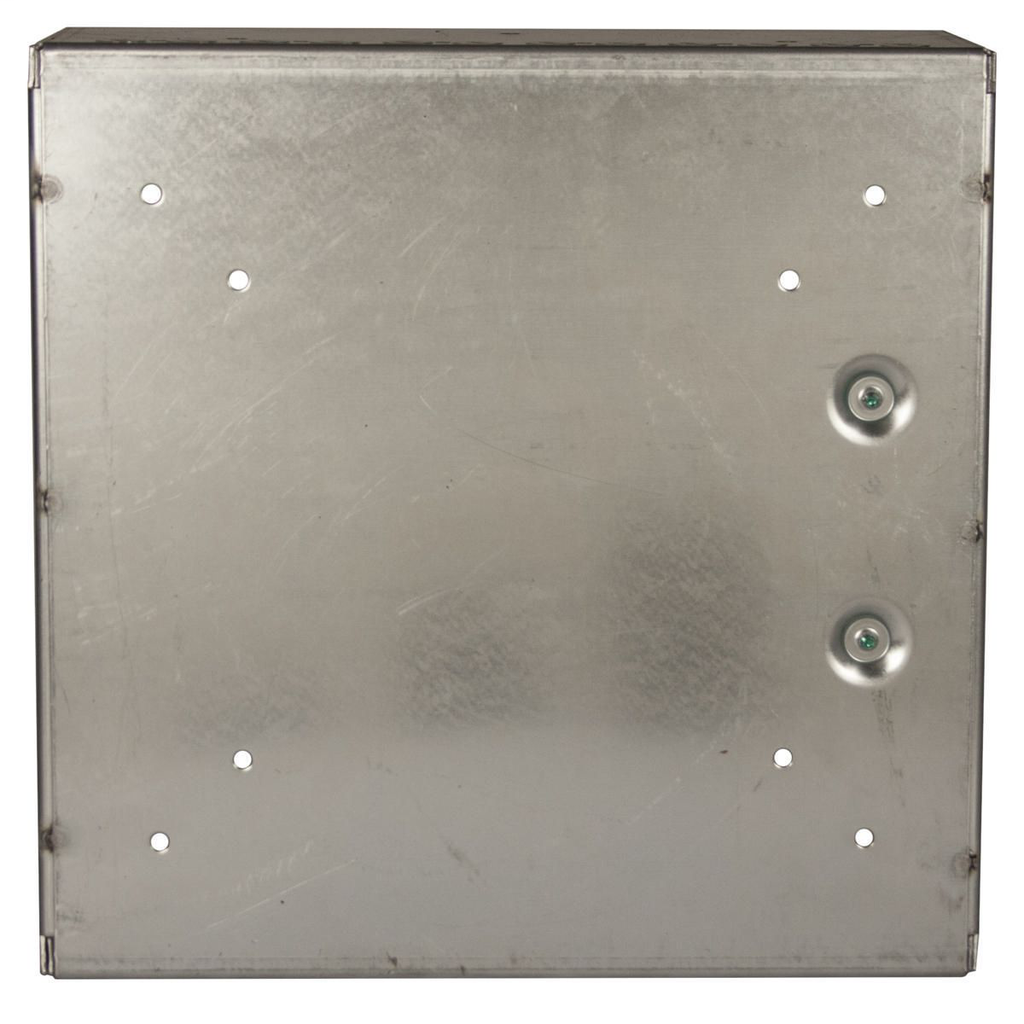

NEMA 1 SC121204NKSTRC Grand Slam Junction Box

The NEMA 1 SC121204NKSTRC Grand Slam Junction Box by RACO is designed for efficient termination of home runs and electrical wiring in commercial applications. This surface-mounted junction box features built-in STAB-IT® clamps for quick installation of flex, MC, MCI, MCI-A, HCF, AC, and EMT cables, providing significant labor savings and installation flexibility. It is ideal for electrical distributors and switchgear suppliers seeking reliable and space-efficient wiring solutions.

Specifications

• Dimensions: 12" x 12" x 4"
• Mounting Type: Surface Mounted
• Built-in STAB-IT® Clamps: 6 (14/2 to 10/3), supports up to 12 cables
• Knockouts: None (No Knockouts)
• Volume Capacity: 546 cubic inches
• Manufacturer: RACO
• Manufacturer Part #: SC121204NKSTRC

Features

• Patented STAB-IT® clamp tested at over three times faster installation than traditional MC connectors
• Designed for quick installation of multiple cable types including flex, MC, MCI, MCI-A, HCF, AC, and EMT
• Surface mount cover and ground bar included for ease of installation
• Two raised grounds for installation flexibility
• No knockouts for applications requiring a solid enclosure
• UL Listed for safety and compliance
