Description

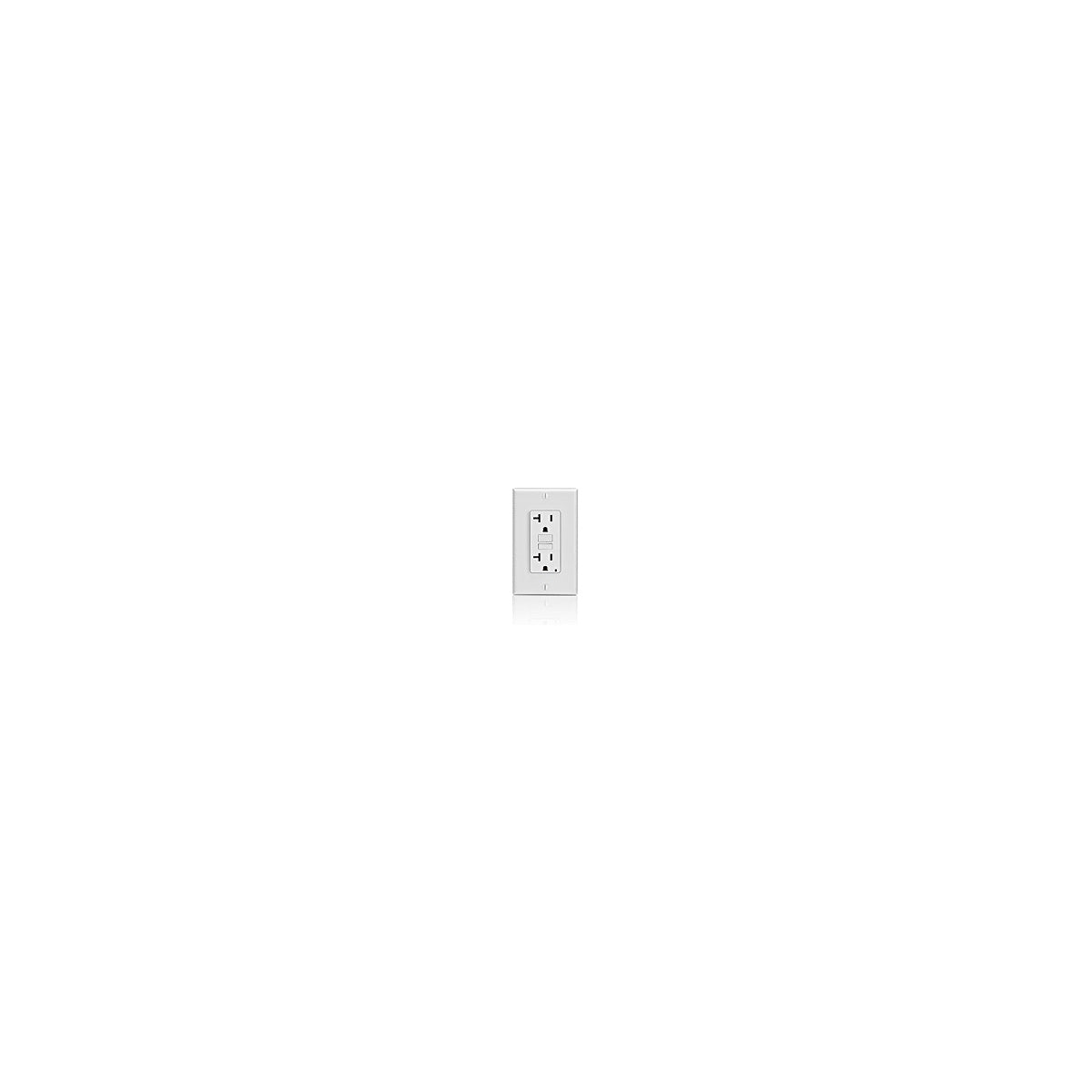

N7899-W, 20 Amp SmartlockPro Slim GFCI Receptacle
The N7899-W SmartlockPro Slim GFCI receptacle by Leviton is a professional grade ground fault circuit interrupter designed for residential electrical applications. It offers enhanced safety and ease of installation with a slim profile that fits easily into any wallbox, reducing depth and providing a sleek, flush-mounted appearance. Ideal for use in kitchens, bathrooms, garages, basements, and other wet locations, it ensures reliable ground fault protection and complies with NEC requirements for tamper resistance.
Specifications
- Amperage: 20 amperes
- NEMA Rating: 5-20R
- Material: Galvanized Steel
- Color: White
- Grade: Residential
- Number of Poles: 2
- Number of Wires: 3
- Grounding: Self-Grounding
- Clamp Type: Brass
- Dielectric Strength: 1250 volts
- Operating Temperature: -35 to 66 degrees Celsius
- ANSI Base: C-73
- At Rated Voltage: 1 horsepower
- Flammability Class: Rated V-2 Per UL94
- Product Weight: 0.3680 lbs
Features
- Slim, shallow design enables faster and easier installation in any electrical box, including shallow boxes
- Industry-leading professional grade lockout action prevents reset if the device is damaged or miswired
- External back wiring with visual indication ensures wires are properly seated and resists wire pullout
- Withstands high torque for secure terminal connections
- Self-test functionality with dual-function LED indicators for line-load reversal and power availability
- Standard brass self-grounding clip for reliable grounding
- Tamper-resistant to meet NEC Section 406.1 requirements for residential installations
- Compatible with all Decora devices and wallplates
- Meets or exceeds UL Standard 943 Class A for GFCI and UL 498 for receptacles
- UL Listed, CSA Certified, and NOM Certified
- Impact-resistant thermoplastic cover and body for durability
