N7899-HG, 20 Amp
SKU: #33620
Part: #N7899-HG
UPC: 078477601815
N7899-HG, 20 Amp
SKU: #33620
Part: #N7899-HG
UPC: 078477601815
Total Price: $31.97 per each Sold in increments of 1 each
Description

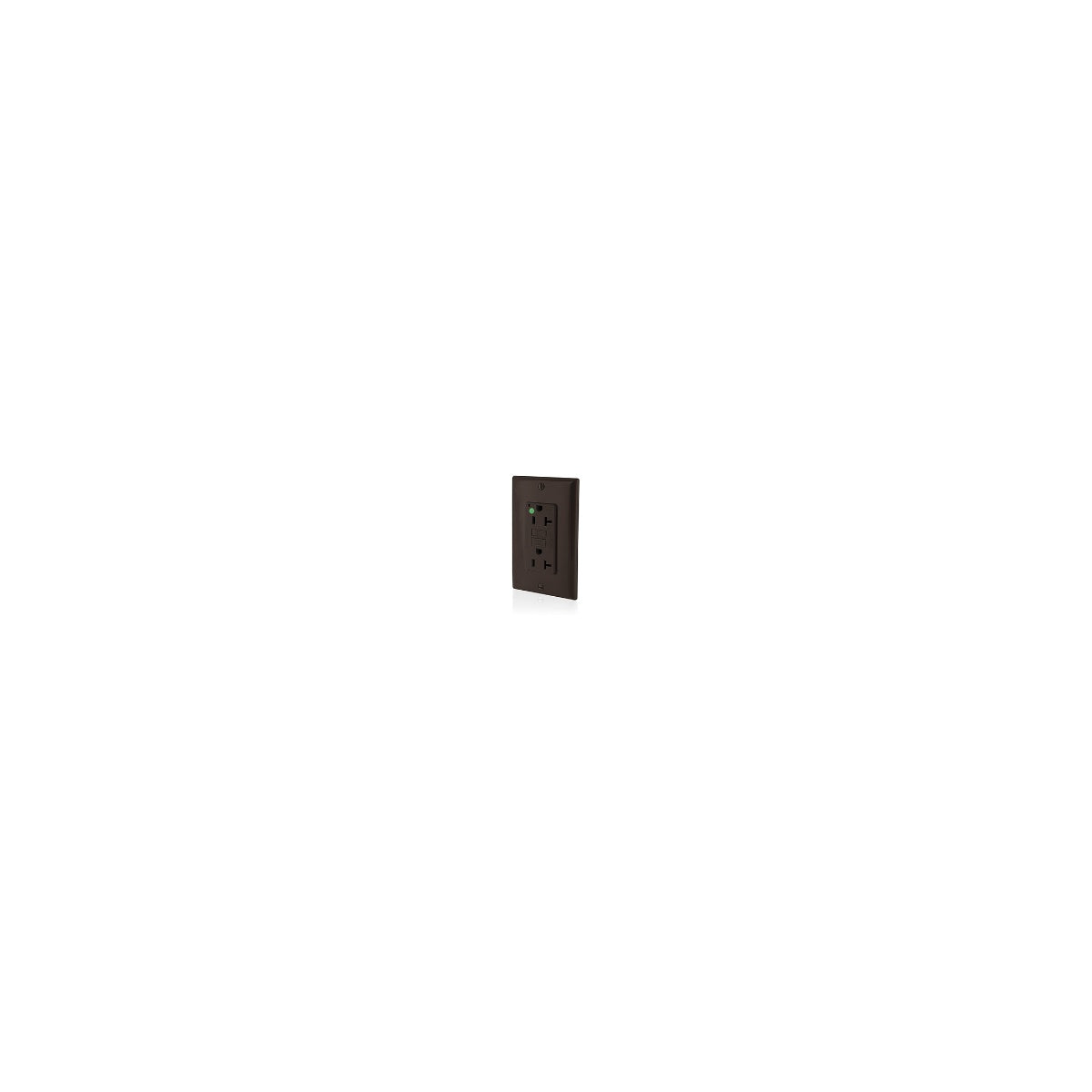

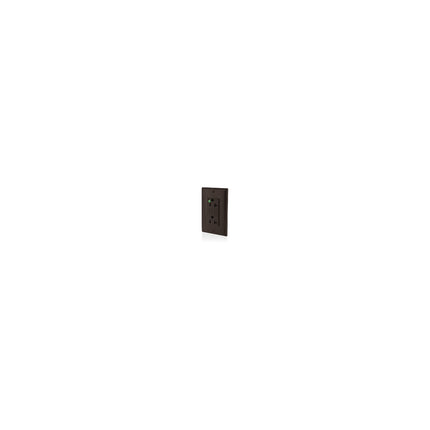

N7899-HG, 20 Amp Hospital Grade SmartlockPro Slim GFCI Receptacle
The Leviton N7899-HG is a 20 amp, 125 volt hospital grade SmartlockPro Slim GFCI receptacle designed for ground fault protection in electrical distribution systems. It is suitable for use in commercial and healthcare facilities, providing reliable protection against electrical shock by quickly interrupting power when a ground fault is detected. This device is ideal for electrical distributors and lighting solutions providers requiring tamper-resistant, high-quality wire and cable components and switchgear suppliers seeking dependable GFCI receptacles with advanced safety features.
Specifications
- Amperage: 20 amperes
- Voltage Rating: 125 Volt
- Frequency: 60 hertz
- At Rated Voltage: 1 horse power
- Number of Poles: 2
- Number of Wires: 3
- Material: Galvanized Steel (strap)
- Color: Brown
- ANSI Base: C-73
- NEMA Configuration: WD-1
- Clamp Type: Brass
- Operating Temperature: -35 to 66 degrees Celsius
- Flammability Class: Rated V-0 per UL 94
- Product Weight: 0.3740 lbs
- Manufacturer: Leviton
- Manufacturer Part #: N7899-HG
- UPC: 078477601815
Features
- Hospital Grade SmartlockPro Slim design with a low-profile, shallow depth for easier installation in all electrical boxes
- Patented Reset Lockout feature prevents resetting if the GFCI is damaged, miswired (line-load reversal), or not powered, ensuring end-of-life indication and safety
- Dual function LED indicator provides status for line-load reversal and power availability
- Impact-resistant polyester cover and thermoplastic body for extended service life
- Silver alloy contacts for superior conductivity and durability
- Patented bridge contact provides individual sets of contacts for the receptacle face and downstream receptacles
- Improved immunity to high frequency noise to reduce nuisance tripping
- Advanced electronics for superior resistance to electrical surges and over-voltages
- Tamper-resistant shutters comply with NEC Section 517.18C for pediatric locations, blocking access to contacts unless a two-prong plug is inserted
- Expanded wiring options with external back wire clamps for secure connections
- Standard self-ground clip for grounding
- Meets or exceeds UL 498, UL 943, CSA, ANSI, and NEMA WD-1 & WD-6 standards
- Two-year limited warranty
