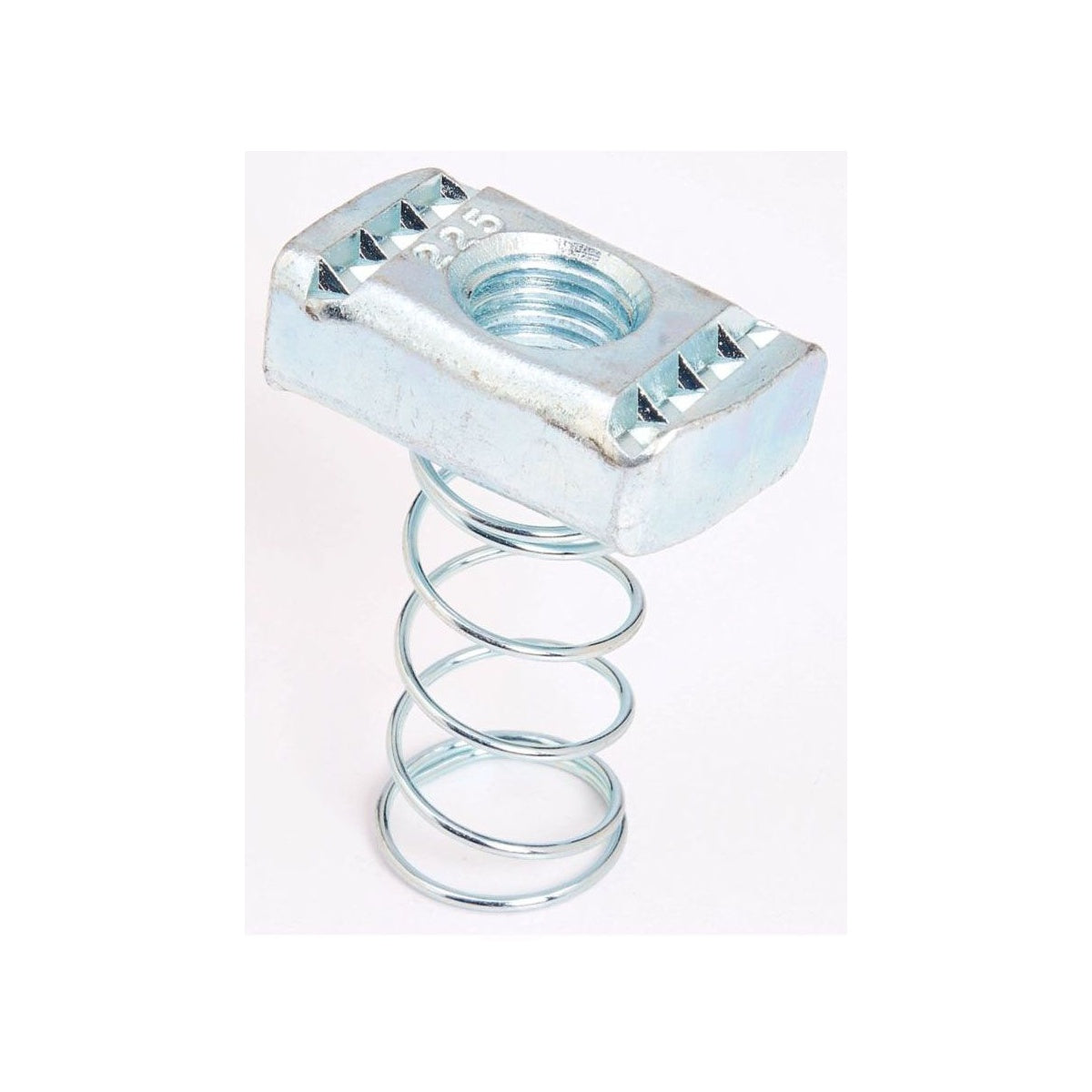

N225ZN Channel Nut – Electrical Distributor Hardware

The N225ZN Channel Nut is a key component of metal framing and strut systems used in electrical distribution and lighting solutions. Designed to provide essential gripping power and ease of installation, this channel nut is press formed, machined, and hardened from steel meeting ASTM A108 or ASTM A36 standards for larger sizes. It is suitable for securing wire and cable supports within switchgear assemblies or other electrical infrastructure.

Specifications

• Material: Steel
• Finish: Zinc Electroplated
• Width: 1.375 Inch
• Product Weight: 0.1160 lbs
• Manufacturer: B-Line
• Manufacturer Part #: N225ZN
• Thread Size: 1/2”-13
• Nut Thickness: 1/2” (12.7 mm)
• Fits Channel Sizes: Medium Channels (B22, B24, B32)
• Resistance to Slip (12 ga. Channel): 1500 lbs (6670 N)
• Pull-Out Strength (12 ga. Channel): 2000 lbs (8900 N)

Features

• Press formed, machined, and hardened steel construction for durability and strength
• Electro-plated zinc finish for corrosion resistance
• Designed to meet ASTM A108 or ASTM A36 standards for reliability in electrical installations
• Provides secure gripping power within metal framing systems
• Compatible with B-Line medium channel sizes for flexible installation options
• Meets physical and chemical requirements for bolts, screws, and nuts including ASTM A307, SAE J429, and ASTM A563
