MURRAY FEISS CK250 WALL/HAND-HELD REMOTE CONTROL KIT - Fan Control Solutions

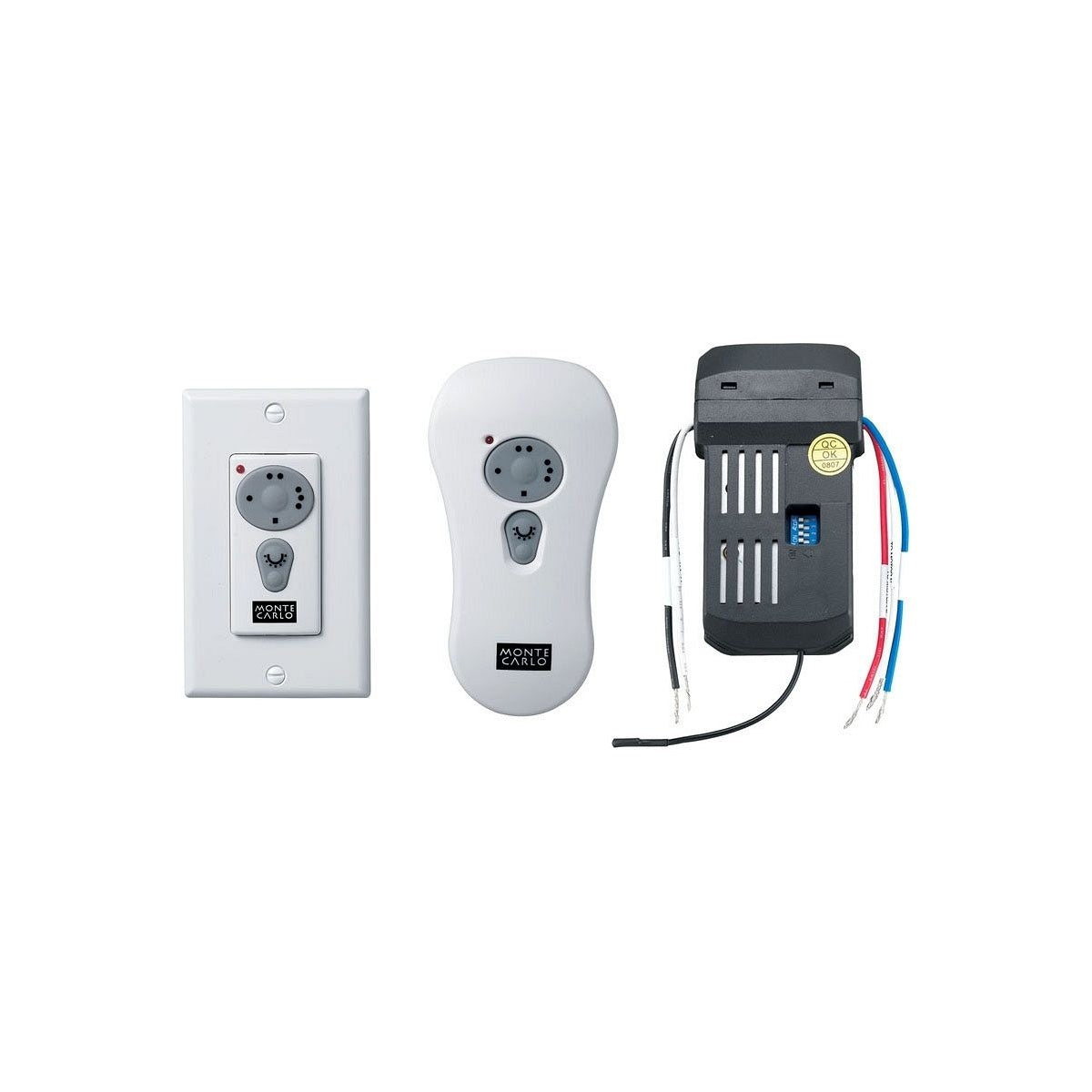

The MURRAY FEISS CK250 Wall/Hand-Held Remote Control Kit provides a versatile solution for controlling ceiling fans and dimming downlights. Designed for use with compatible ceiling fans, this kit offers both wall-mounted and hand-held remote control options, enabling convenient fan speed and light dimming adjustments without the need for hardwiring. Ideal for electrical distributors and lighting solutions providers, this remote control system integrates seamlessly with wire and cable installations and is suited for switchgear suppliers managing ceiling fan control systems.

Specifications

• Manufacturer Part #: CK250
• Product Weight: 0.7 lbs
• Power Supply: One 12V battery (Duracell MN21/Eveready A23/GP23A compatible)
• Control Type: Combo wall-mount and hand-held transmitter
• Speed Settings: 3-speed fan control (low, medium, high)
• Light Control: On/off and dimmer function
• Frequency Control: Dip switch with 16 frequency options
• Surge Protection: 1,000W surge protection
• Receiver Installation: Canopy installed receiver (metal housing required)
• Electrical Requirements: 120 Volts AC, 60 Hz; Max motor amps 1.0 (ceiling fan only); Max light watts 240 incandescent only

Features

• Non-reversing fan and dimming downlight control
• Battery-operated hand-held transmitter or wall control with no hardwiring required
• Dip switch control offering 16 different frequencies to avoid interference
• Includes white and almond face plates for customization
• Remote control features fan speed selection buttons and light dimmer with infinite dimming capability
• Compatible with a wide range of Monte Carlo ceiling fans
• Easy installation with wiring instructions for both downrod and flushmount fans
• Receiver safely enclosed within metal canopy housing for electrical code compliance
• One-year limited warranty with customer support available for installation and troubleshooting
