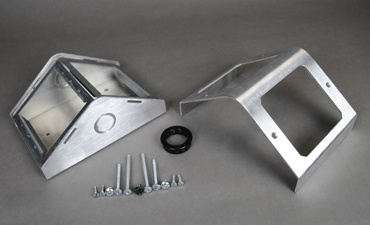

Multiplex Single-Service Fitting – Infloor Electrical and Communication Solutions

The Wiremold Multiplex Single-Service Fitting provides adaptable, large capacity service fittings designed for infloor electrical and communication installations. Ideal for commercial office spaces, libraries, and financial institutions, this fitting supports power, communication, and A/V connectivity needs. It is suitable for new construction or renovation projects and is compatible with various infloor raceway systems, including Walkerduct® Underfloor Duct® and Walkerduct Pro Series. The fitting is engineered to handle single service requirements and can feed multiple workstations, offering flexibility throughout the lifecycle of the installation.

Specifications

• Manufacturer Part #: MP4
• Country of Origin: United States
• Made in USA: Yes
• Product Weight: 1.38 lbs
• Overall Capacity: 55.3 cubic inches (906 cubic cm)
• Compatibility: Designed for 2" IPS underfloor duct systems and Walkerduct Pro Series single preset installation
• Conduit Knockouts: 1/2" and 3/4" trade size concentric knockouts on each end; 1" and 1 1/4" trade size concentric knockouts in baseplate
• Order Minimum: 1 unit
• UPC: 786564539971

Features

• Interchangeable faceplates for power, communication, and A/V, allowing service changes without replacing the fitting
• Brushed aluminum finish for durability and long-lasting appearance
• Mounts directly on presets of Walkerduct Pro Series without additional hardware, reducing installation time and cost
• Supports large capacity single service requirements, suitable for feeding multiple workstations
• Accepts industry-standard and proprietary devices for voice, data, and video applications
• cULus Listed to U.S. and Canadian safety standards
