Features

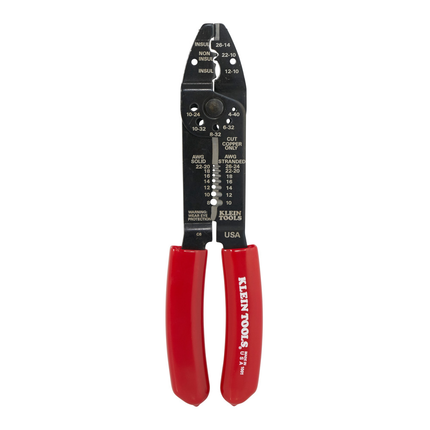

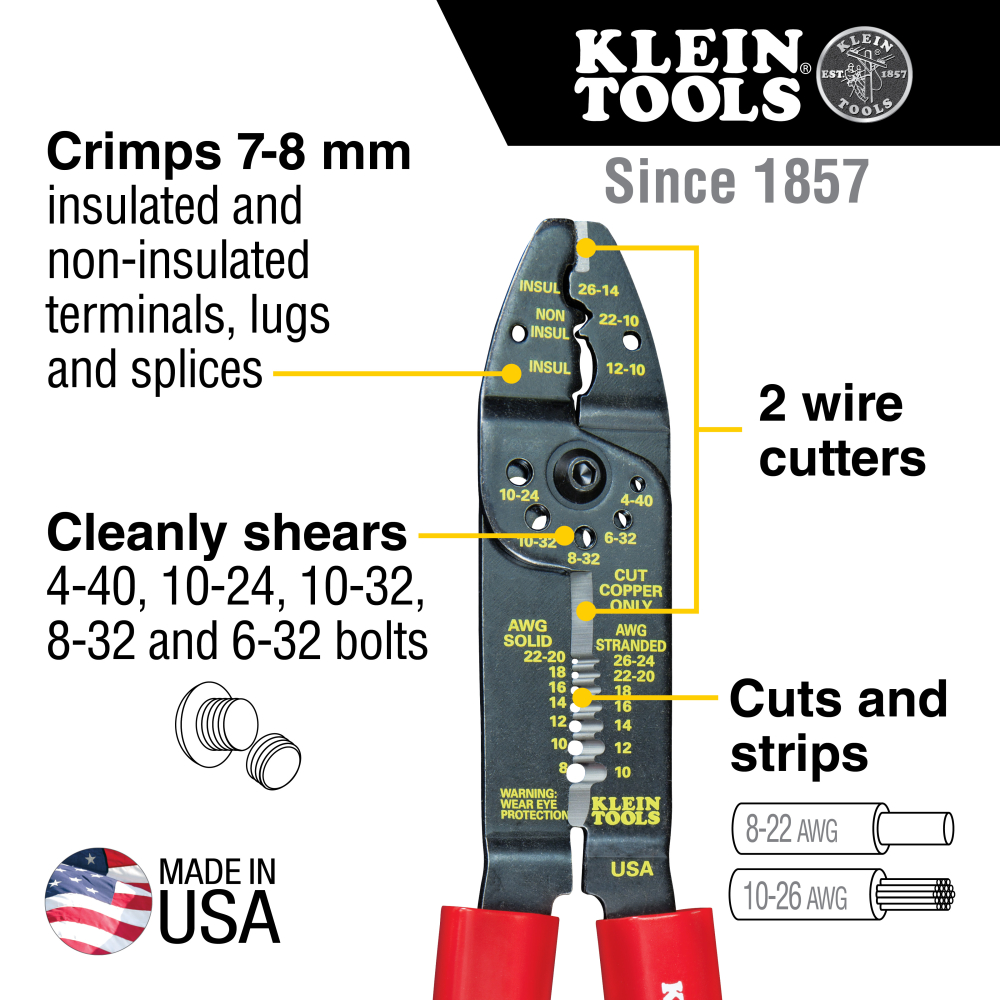

• Wire Strippers with 2 wire cutters; one at tip, the other halfway back near stripping holes double the utility of this tool
• Multi Tool crimps 7 - 8mm insulated and non-insulated terminals, lugs and splices
• Cleanly shears 4-40, 10-24, 10-32, 8-32 and 6-32 bolts; cuts and strips 8-22 AWG solid and 10-26 AWG stranded wire
• Pivot nut adjusts tension
• Made in USA
• Full-sized, plastic-covered cushioned handles
• Overall length - 8.5-Inch
• Crimping dies color-coded for easy identification

Warnings

• Always wear approved eye protection.

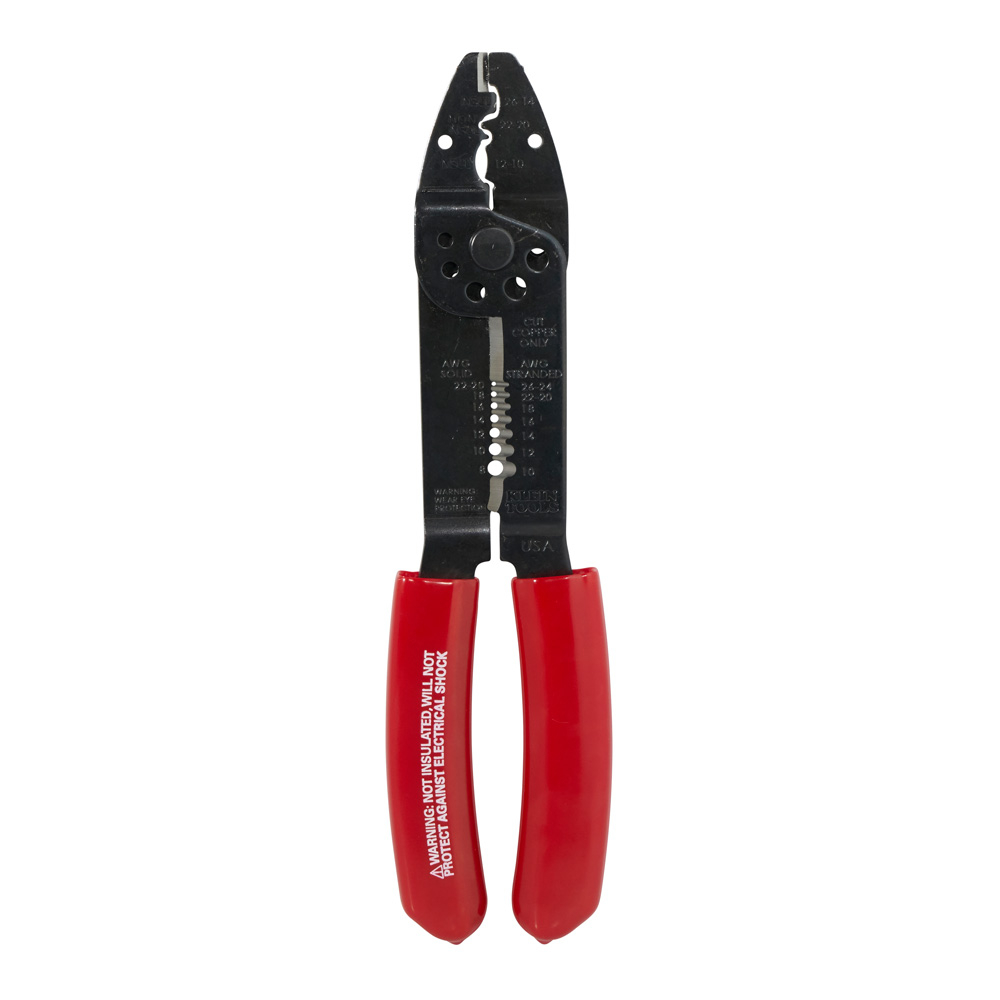

• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
• Never use on or near live electrical circuits.

Specifications

• Handle Color: Red
• Crimping Capacity: 10-22 AWG
• Application: Cuts and Strips 8-22 AWG Solid and 10-26 AWG Stranded Wire; Shears Bolts; Crimps 7-8 mm Terminals, Lugs and Splices
• Overall Length: 8.5" (21.6 cm)
• Weight: 7.5 oz (213 g)
• Strips and Cuts: 8-22 AWG Solid; 10-26 AWG Stranded
• Screw Shearing: 4-40, 6-32, 8-32, 10-24, 10-32
• Item Height: 0.6300 in
• Item Width: 4.3500 in
• Item Depth: 8.5000 in
• Item Weight: 0.4700 lbs
