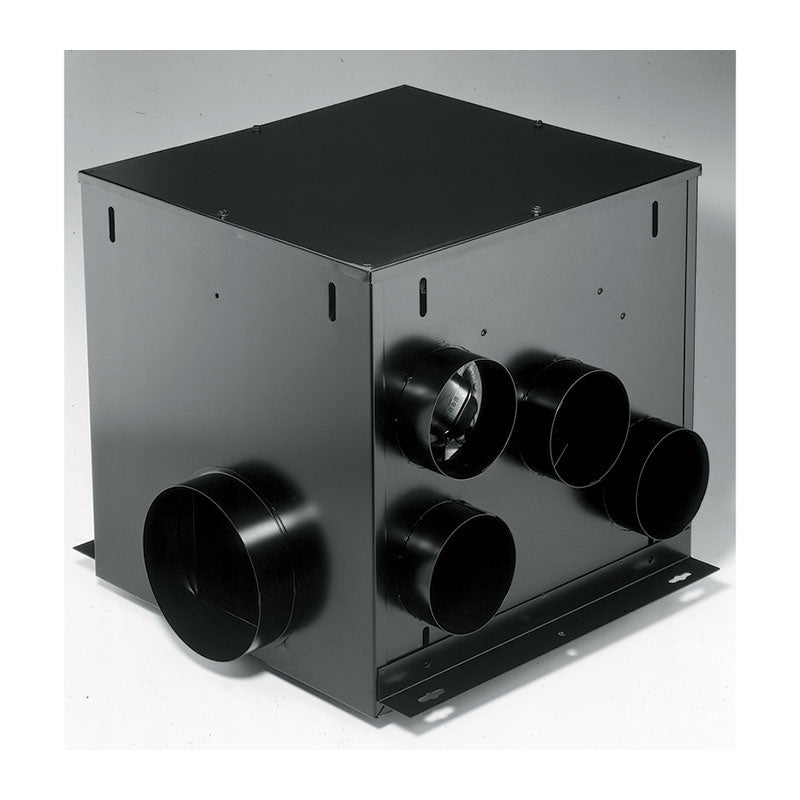

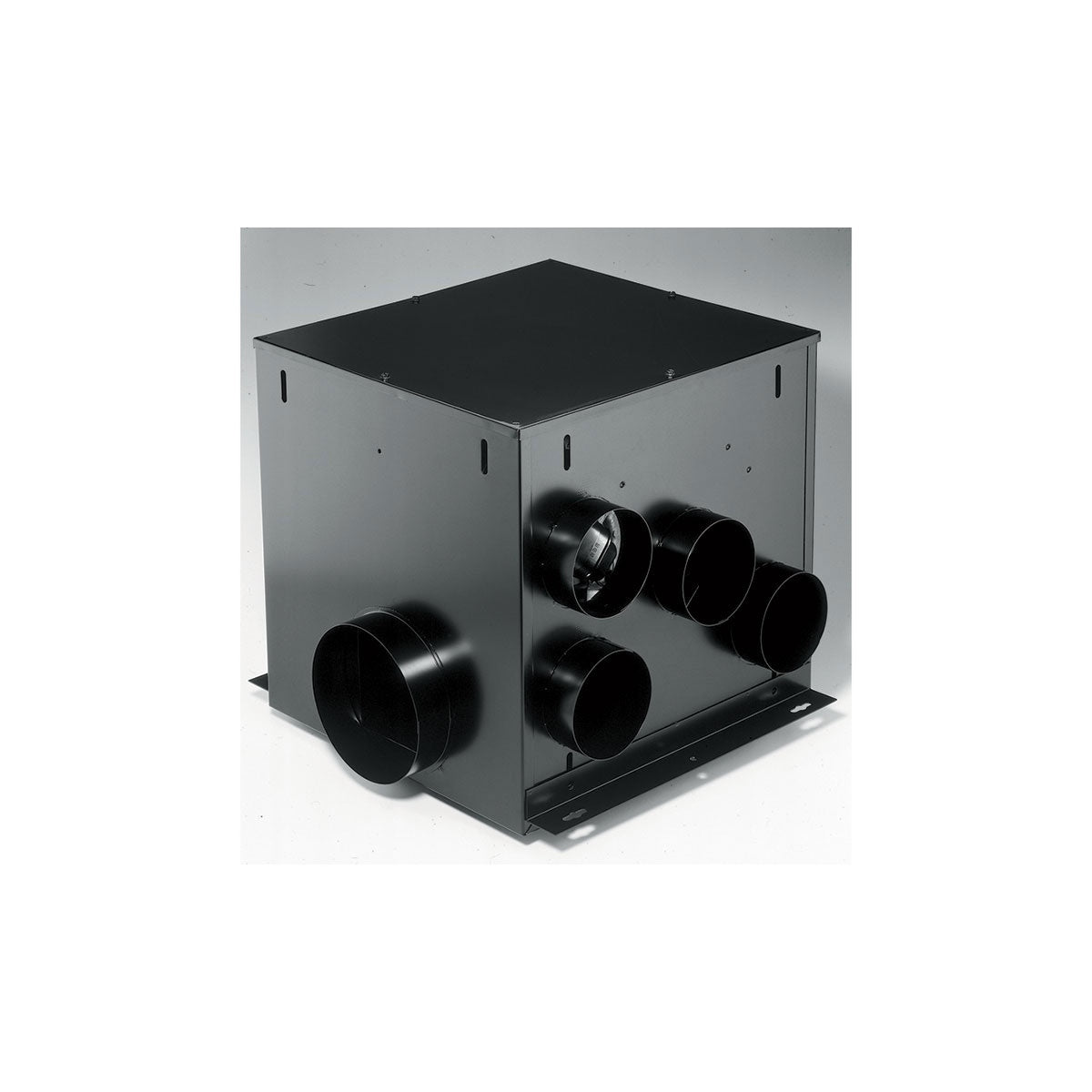

Multi-Port In-Line Ventilator, 290 CFM - Broan In-Line Ventilation Fan

The Broan Multi-Port In-Line Ventilator Model MP280 is a remote mounted, high-performance ventilation fan designed for quiet and efficient residential air quality improvement. It is ideal for installation in attics, basements, or other out-of-the-way locations to provide continuous ventilation with minimal noise. This ventilator supports multiple duct connections, making it suitable for whole-house ventilation solutions distributed through various rooms. Electrical distributors and lighting solutions providers will find this product compatible with wire and cable systems for residential HVAC applications.

Specifications

• Manufacturer: Broan
• Manufacturer Part #: MP280
• Airflow Rate: 290 cubic feet per minute (CFM)
• Duct Size: 4 inches (inlet), 6 inches (outlet)
• Amperage: 2.5 amperes
• Housing Width: 14-1/4 inches
• Housing Height: 14-3/4 inches
• Product Weight: 31.7 lbs
• Voltage: 120 VAC, 60 Hz
• Motor Type: Permanent Split Capacitor (PSC), permanently lubricated for continuous quiet operation
• Certification: HVI certified and UL listed

Features

• Multi-port design with (4) 4" round inlet ducts and a 6" round outlet for versatile ducting configurations
• Rugged 20 gauge steel housing with electrically-bonded epoxy paint finish for durability
• In-line installation ensures quiet operation, suitable for ceiling, wall, or floor mounting
• Easily removable access panel allows blower cleaning and servicing without disturbing ductwork
• All wiring and ductwork connections are accessible from outside the housing for simplified installation and maintenance
• High-pressure centrifugal blower designed for continuous operation in residential ventilation systems
• Designed for whole-house ventilation to improve indoor air quality by exhausting stale air and supplying fresh air
