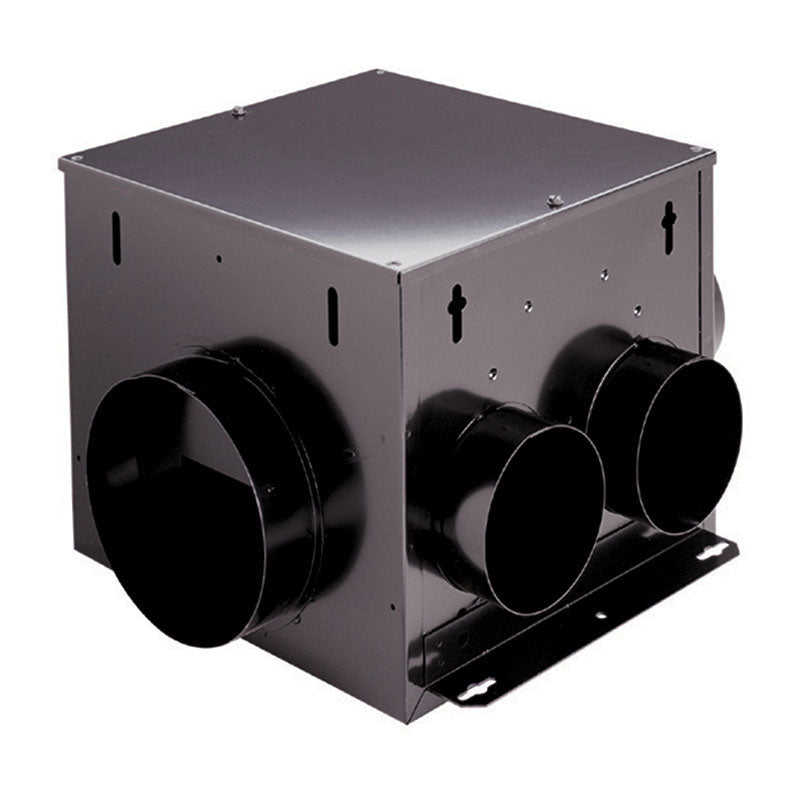

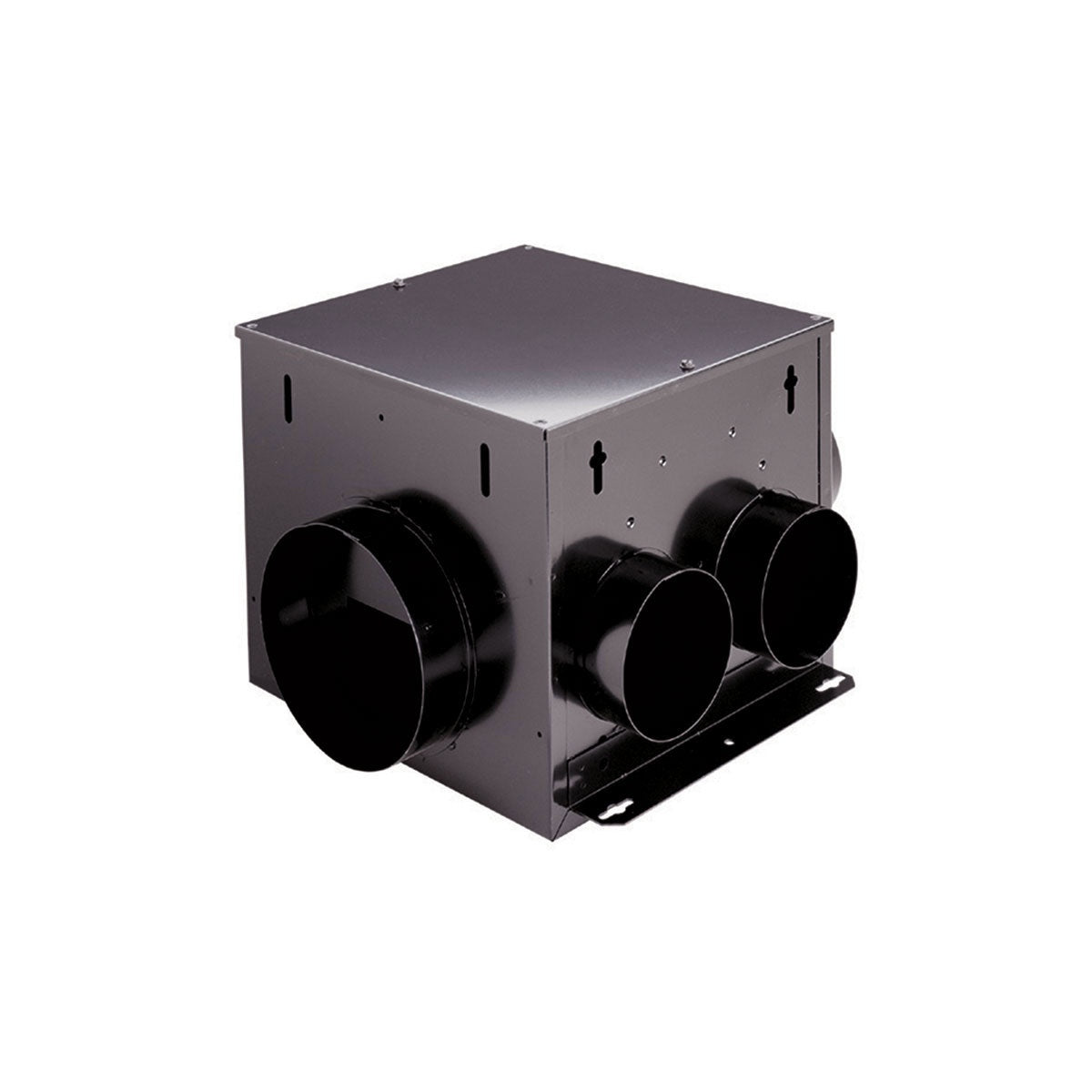

Multi-Port In-Line Ventilator, 150 CFM - In-Line Ventilation Fan

The Broan Multi-Port In-Line Ventilator Model MP140 is a remote mounted ventilation fan designed for quiet and efficient residential air movement. It is intended for continuous operation to improve indoor air quality by exhausting stale air and supplying fresh air throughout the home. This ventilator is suitable for installation in discrete locations such as attics or basements, ensuring powerful airflow with minimal noise. It is ideal for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers seeking reliable ventilation solutions.

Specifications

• Airflow Rate: 150 cubic feet per minute
• Duct Size: 4 inches
• Amperage: 0.8 amperes
• Housing Width: 11 inches
• Housing Height: 9-1/2 inches
• Product Weight: 15.6 lbs
• Manufacturer Part #: MP140
• Manufacturer: Broan

Features

• Quiet operation enabled by remote mounting of the high-performance ventilator
• Steel housing with epoxy paint finish for durability
• Designed for continuous operation with permanently lubricated motor
• Allows connection of up to four 4" round inlet ducts and one 6" round outlet duct
• Easy installation in any orientation: ceiling, wall, or floor
• Accessible panel for blower cleaning and servicing without disturbing ductwork
• UL listed and HVI certified for consistent performance

Downloads & Links

• Installation Guide MP100, MP140, MP200
• Spec Sheet MP100, 140, 200, 280
• Wall Controls Selection Guide
• Broan Bath and Ventilation Fans Catalog
