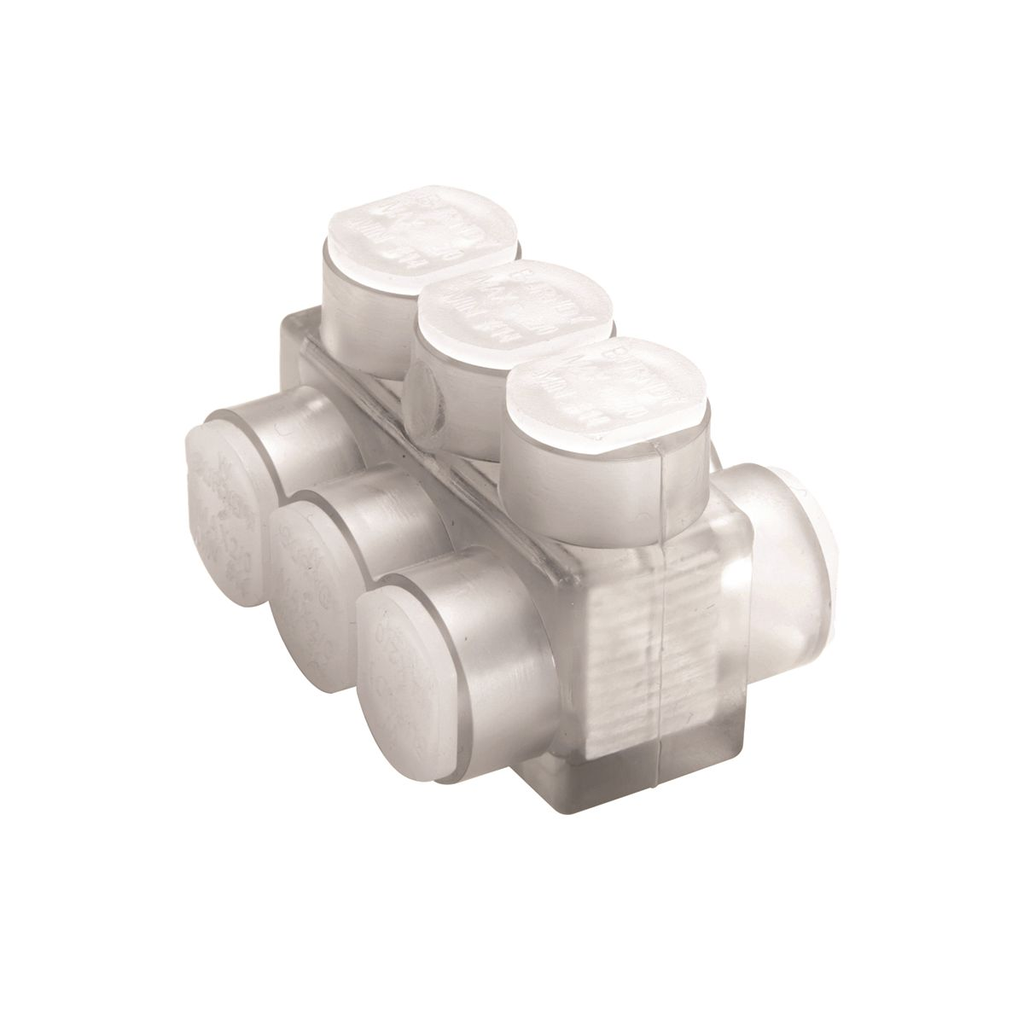

Multi-Port Double-Sided Entry Aluminum Multiple Tap Connector

This aluminum multiple tap connector is designed for indoor electrical applications, suitable for use with copper or stranded aluminum conductors. It features a clear plastisol insulation for easy visual confirmation of conductor insertion and is rated for conductor sizes from 14 AWG to 2/0 AWG. The connector supports multi-tap connections with 8 ports and a double-sided entry configuration, making it ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable connections in indoor lighting and electrical distribution systems.

Specifications

• Material: Aluminum
• Connection Type: Multi Tap
• Insulation Type: Plastisol
• Conductor Size: 14-2/0 AWG
• Width: 1.56 in
• Product Weight: 0.3600 lbs
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Burndy
• Manufacturer Part #: BIBD2/08

Features

• Clear insulated body allows visual confirmation of conductor insertion
• Plastisol insulation eliminates the need for taping
• Al/Cu rated for use with aluminum and copper conductors
• 8-port design with double-sided entry for versatile wiring configurations
• Pre-filled conductor ports with oxide inhibitor to prevent corrosion
• UL 486A-486B Listed and CSA Certified for safety and reliability
• Range-taking conductor ports accommodate wire sizes from 14 AWG to 2/0 AWG
• Manufactured in the USA ensuring quality control and standards compliance
