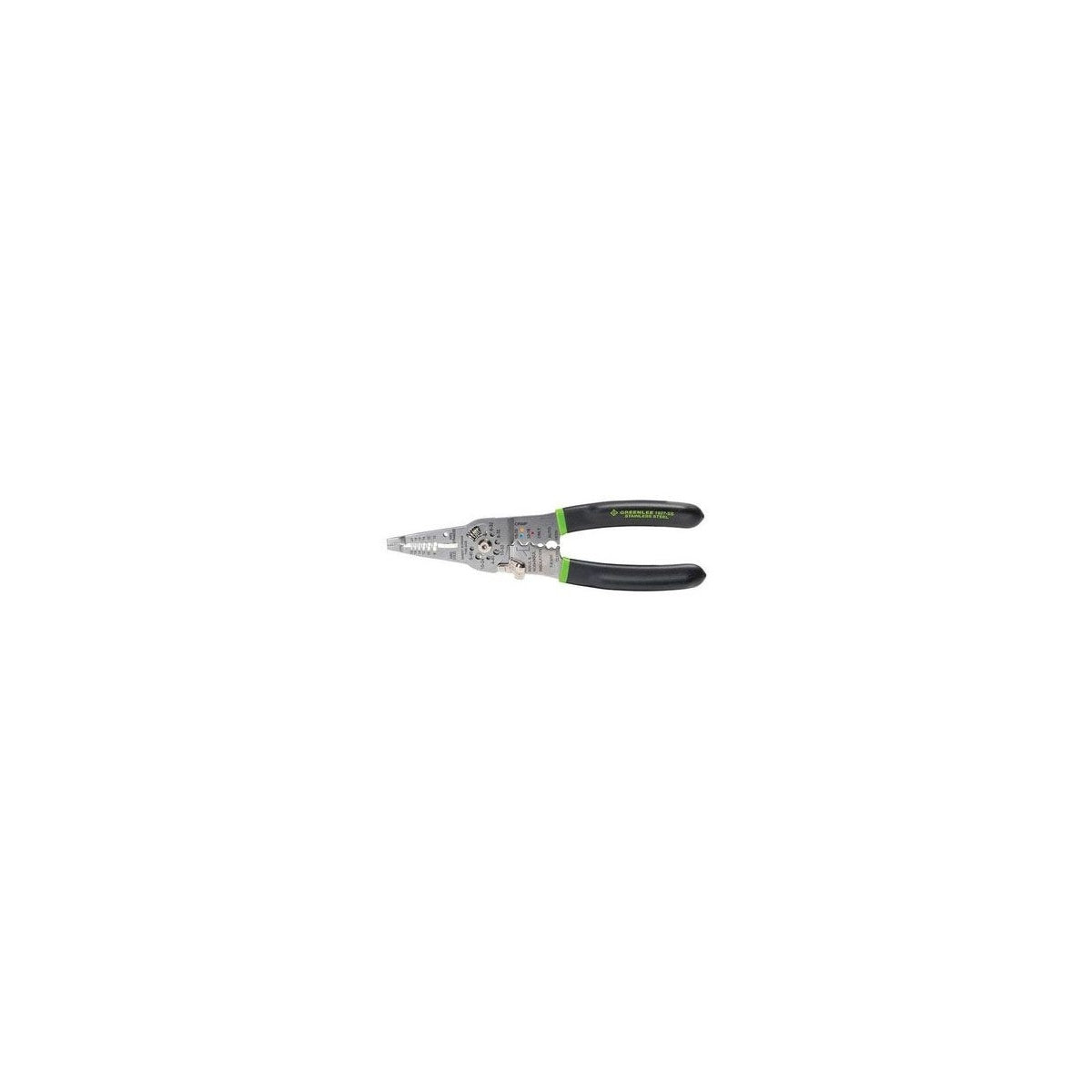

Multi-Functional Type 9 Inch Wire Stripper Cutter Crimper – Professional Stainless Steel Tool

This multi-functional wire stripper, cutter, and crimper is designed for professional electrical distributors and switchgear suppliers requiring precise handling of wire and cable. It is suitable for stripping, cutting, and crimping wire conductors, supporting both solid and stranded wires. The tool’s high-grade stainless steel construction ensures durability and corrosion resistance, making it a reliable choice in lighting solutions and electrical installations.

Specifications

• Application: Stripping, Cutting and Crimping Wire Conductors
• Capacity: 8-18 AWG Solid, 10-20 AWG Stranded
• Material: High Grade Stainless Steel
• Handle Type: Extended Standard Vinyl Cushion Grip
• Jaw Type: Plier-type nose with precision ground stripping holes and cutter
• Overall Length: 9" (226 mm)
• Type: Manual Fixed Hole Stripper/Cutter/Crimper with Spring and Lock
• Weight: 0.4 oz (11.3 g)
• Finish: Laser etched and stamped feature indicators with color-coded crimpers
• Package Type: Hanging Clamshell

Features

• High-grade stainless steel provides 5X longer life and resists wear and corrosion
• Precision ground stripping holes for easy, consistent insulation removal
• Strips 8-18 AWG solid and 10-20 AWG stranded conductors
• Cleanly shears bolts sized 4-40, 6-32, 8-32, 10-32, and 10-24
• Crimps 16-10 and 22-18 insulated and non-insulated terminals, plus 7-8 mm terminals
• Multiple functions include plier nose, strippers, cutter, looping holes, multiple crimpers, bolt re-thread/shears, and spring-back with low-profile lock
• High-grade knives resist chipping and marring
• Looping holes and serrated nose facilitate bending, pulling, and shaping wires
• Long-life spring and low-profile lock enable quick, repetitive stripping and cutting
• Vinyl cushion grip offers ergonomic fit and slip resistance
