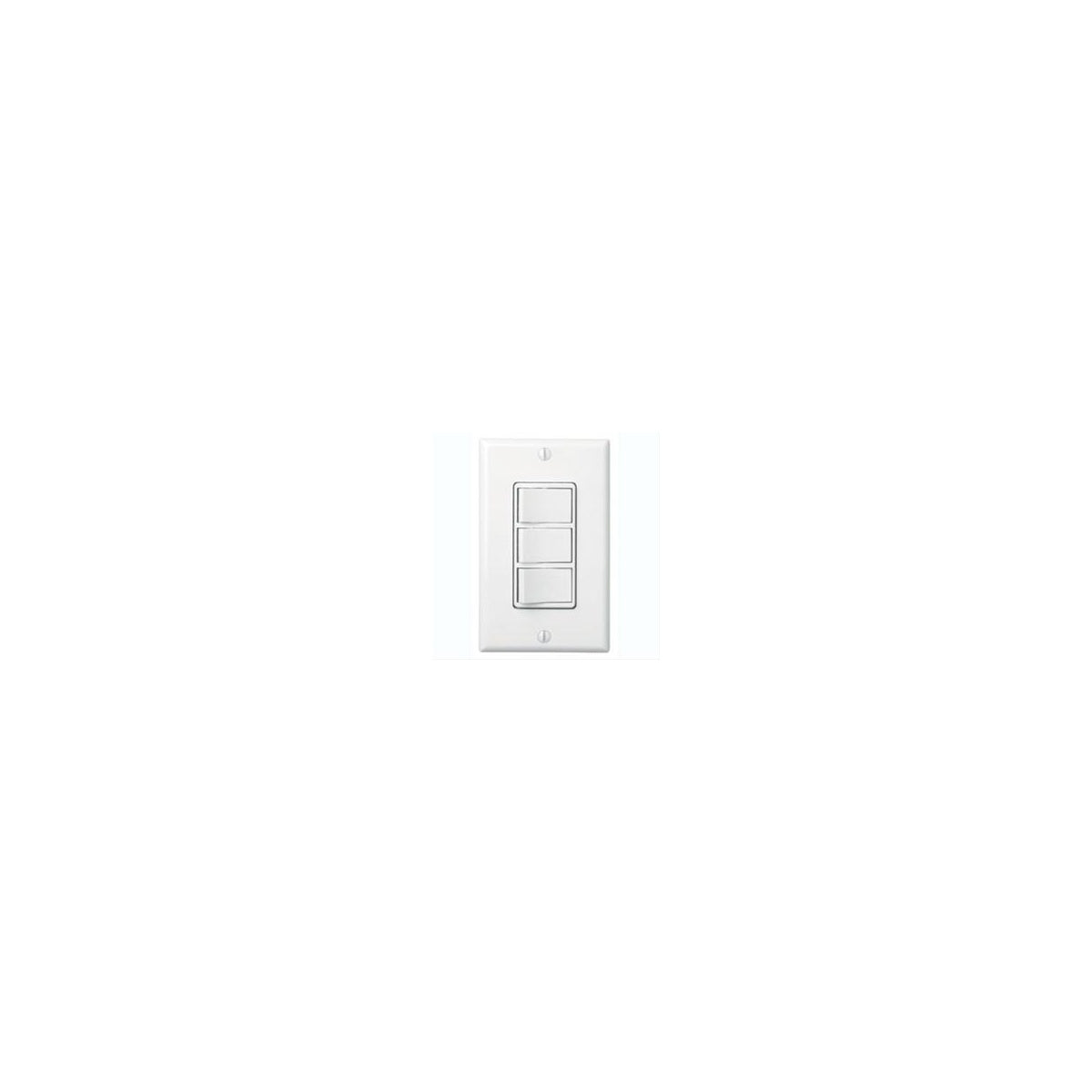

Multi-Function Control, White, Three Switch Control With Four-Function Control, Heater/Fan/Light, Night-Light

This Broan multi-function control is designed for precise operation of fan, light, heater, and night-light functions in residential or commercial ventilation systems. It is suitable for use by electrical distributors and lighting solutions providers requiring reliable wall control devices compatible with Broan SensAire® and Designer Series fan/lights. The device supports separate rocker switches for fan (on/off/auto), light (on/off), and night-light (on/off) control, making it ideal for integrated wire and cable installations and switchgear supplier portfolios.

Specifications

• Manufacturer: Broan
• Manufacturer Part #: 77DW
• Voltage Rating: 120 VAC
• Two-position rocker switches: 15 Amps @ 120 VAC
• Three-position rocker switch: 5 Amps @ 125 VAC (not for heater element)
• Total Load Capacity: 20 Amps @ 120 VAC maximum
• Fits single-gang switch box opening
• Product Weight: 0.9 lbs
• UPC: 026715106301

Features

• Controls fan, light, heater, and night-light functions independently
• Includes switch function labels for easy identification
• Designed for use with Broan SensAire¬Æ and Designer Series fan/lights
• Requires copper or copper-clad wire; aluminum wire not supported
• Mounts in a 2¬Ω‚Äù deep double-gang switch box with single device adapter plate
• Ground wire connection required for safety and code compliance
• Separate rocker switches for precise multi-function control
• Installation includes push-in and screw terminal wiring options with torque specifications
