MULTI CABLEBLOCK 2WAY 500-4 3OUT
SKU: #62963
Part: #CSB 500-3
UPC: 783786714995
MULTI CABLEBLOCK 2WAY 500-4 3OUT
SKU: #62963
Part: #CSB 500-3
UPC: 783786714995
Next day delivery
Description

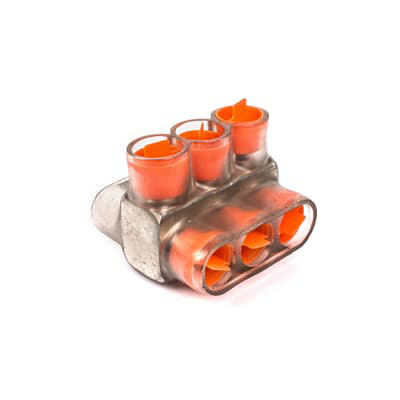

MULTI CABLEBLOCK 2WAY 500-4 3OUT – Aluminum Multi-Tap Cable Block
This aluminum multi-tap encapsulated cable block is designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It supports a two-way configuration with three outlets, accommodating wire sizes from 500 kcmil to 4 strands. The clear PVC insulation enables safe and time-saving installations without the need for taping, making it suitable for various lighting solutions and electrical distribution applications.
Specifications
- Wire Range: 500 kcmil–4 Str
- No. of Outlets: 3
- Screw Size: 3/8 Inch Hex
- Length: 3.99 Inches
- Width: 3.0 Inches
- Height: 2.75 Inches
- Product Weight: 7.7 lbs
- Insulation: Clear PVC
- Manufacturer Part #: CSB 500-3
Features
- Aluminum construction for durability and conductivity
- Dual-rated for use with copper or aluminum cable
- Clear encapsulation for visual inspection and safe installation
- Meets or exceeds ANSI C119.4 specifications
- Two-way configuration supports versatile wiring layouts
- No taping required due to clear PVC insulation
