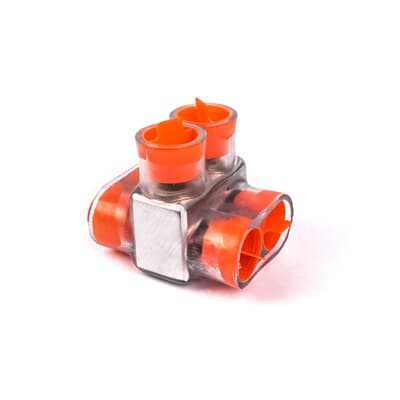

MULTI CABLEBLOCK 2WAY 350-10 2OUT – Aluminum Multi-Tap Cable Block

This aluminum multi-tap encapsulated cable block is designed for electrical distributors and switchgear suppliers requiring reliable wire connections. It supports a two-way configuration with a wire range of 350 kcmil to 10 AWG stranded wire, making it suitable for various wire and cable applications in lighting solutions and electrical distribution systems. The clear PVC insulation enhances safety and enables quick installation without the need for taping.

Specifications

• Manufacturer Part #: CSB 350-2
• Wire Range: 350 kcmil – 10 Stranded
• No. of Outlets: 2
• Screw Size: 3/8 Inch Hex
• Length: 2.22 Inches
• Width: 3.0 Inches
• Height: 2.50 Inches
• Product Weight: 3.9 lbs
• Insulation: Clear PVC

Features

• Aluminum construction for durability and conductivity
• Encapsulated design for secure wire connections
• Clear insulation for visual inspection and safe installation
• Two-way configuration allowing multiple outlet connections
• Compatible with copper or aluminum cable
• Meets or exceeds ANSI C119.4 specifications

Downloads & Links

• Spec Sheet
