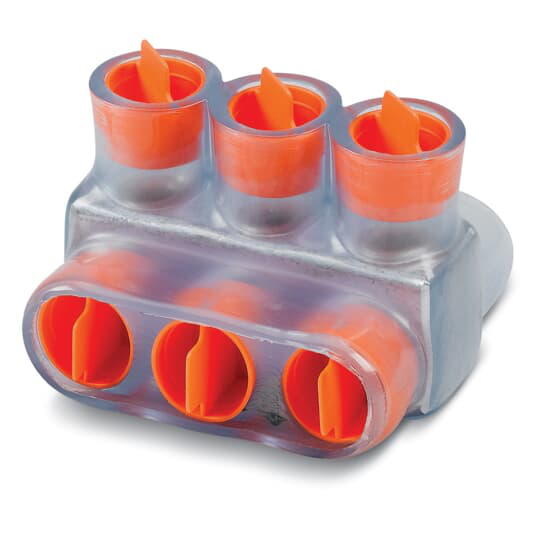

MULTI CABLEBLOCK 2WAY 250-6 3OUT – Aluminum Multi-Tap Cable Block

This aluminum multi-tap encapsulated cable block is designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It features a two-way configuration suitable for wire ranges from 250 kcmil to 6 Stranded wire sizes, supporting three outlets. The clear PVC insulation provides safe, time-saving installation without the need for taping, making it ideal for lighting solutions and other electrical applications.

Specifications

• Wire Range: 250 kcmil–6 Stranded
• No. of Outlets: 3
• Hex Size (Screw): 5/16 Inch
• Length: 3.09 Inches
• Width: 2.64 Inches
• Height: 2.13 Inches
• Material: Aluminum
• Insulation: Clear PVC
• Product Weight: 3.8 lbs
• Manufacturer Part #: CSB 250-3

Features

• Two-way configuration supports multiple outlet connections
• Dual-rated for use with copper or aluminum cable
• Clear PVC insulation eliminates taping, enabling faster installation
• Meets or exceeds ANSI C119.4 specifications for safety and performance

Downloads & Links

• Spec Sheet
