MULTI CABLEBLOCK 1WAY 250-6 2OUT
SKU: #63010
Part: #CSR 250
UPC: 783786715312
MULTI CABLEBLOCK 1WAY 250-6 2OUT
SKU: #63010
Part: #CSR 250
UPC: 783786715312
Next day delivery
Description

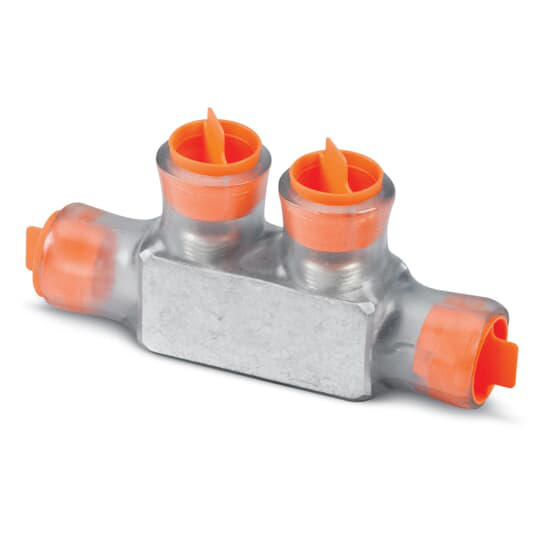

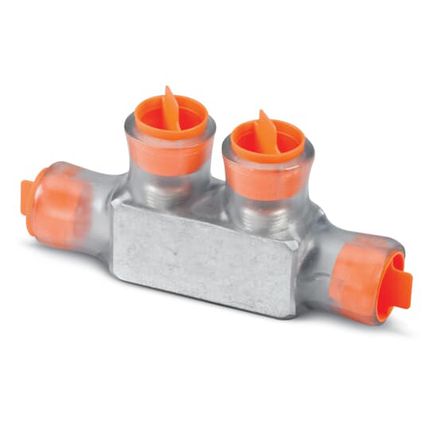

MULTI CABLEBLOCK 1WAY 250-6 2OUT – Aluminum Multi-Tap Encapsulated Splice
This aluminum multi-tap encapsulated cable block is designed for one-way configurations with two outlets, supporting wire sizes from 250 kcmil to #6 stranded wire. It is suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections with clear insulation for safe installation. The product is ideal for use in electrical distribution systems where secure and durable splicing is needed without taping.
Specifications
- Wire Range: 250 kcmil – #6 Stranded
- No. of Outlets: 2
- Length: 4.0 Inches
- Width: 1.06 Inches
- Height: 2.0 Inches
- Hex Size: 5/16 Inch
- Insulation: Clear PVC
- Product Weight: 2.2 lbs
- Manufacturer Part #: CSR 250
Features
- Aluminum construction for durability and conductivity
- Encapsulated design with clear PVC insulation for safe, time-saving installation without taping
- One-way configuration with two outlets for versatile wiring applications
- Compatible with copper or aluminum cable
- Meets or exceeds ANSI C119.4 specifications
