MULTI CABLEBLOCK 1WAY 2/0-500 2OUT
SKU: #63014
Part: #CSR 500
UPC: 783786715336
MULTI CABLEBLOCK 1WAY 2/0-500 2OUT
SKU: #63014
Part: #CSR 500
UPC: 783786715336
Next day delivery
Description

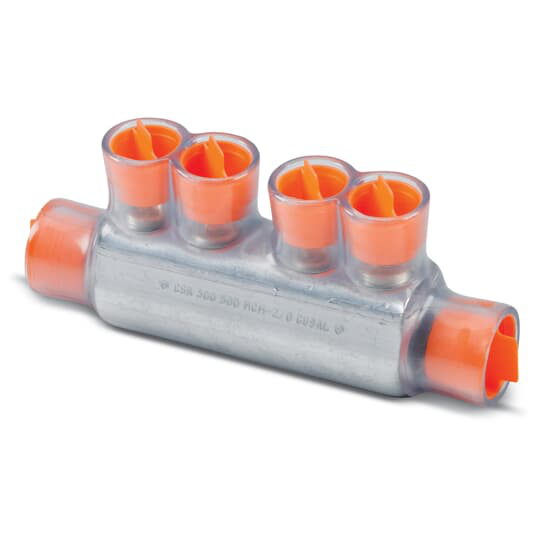

MULTI CABLEBLOCK 1WAY 2/0-500 2OUT – Aluminum Multi-Tap Cable Block
This aluminum multi-tap encapsulated cable block is designed for one-way electrical splicing with two outlets. Suitable for wire ranges from 2/0 to 500 kcmil, it provides reliable connections for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring durable and insulated multi-tap splices.
Specifications
- Wire Range: 2/0–500 kcmil
- Number of Outlets: 2
- Screw Size: 3/8 Hex
- Length: 6 1/2 inches
- Width: 1 5/8 inches
- Height: 2 7/8 inches
- Product Weight: 7.0 lbs
Features
- Aluminum construction with encapsulated design for durability and protection
- Clear PVC insulation enables safe and time-saving installation without taping
- Dual-rated for use with copper or aluminum cable
- Meets or exceeds ANSI C119.4 specifications
