MULBERRY 30523 WP DUPLEX COVER FS MOUNT – Weatherproof Electrical Cover

The MULBERRY 30523 WP Duplex Cover is a heavy-duty, weatherproof electrical cover designed for use with all duplex receptacles and combination devices. Manufactured by Mulberry Metal Products, this cover is intended for secure and durable protection in wet or outdoor environments, making it suitable for electrical distributors and lighting solutions requiring reliable wire and cable protection. The cover features a four-screw flush mount design to ensure stable installation in switchgear or electrical panel applications.

Specifications

• Material: .094 inch Heavy Duty Die Cast Aluminum, Stainless Steel Springs, Screws, and Shaft
• Finish: Powder Coated for maximum weatherability
• Mounting: 4-screw flush mount (FS)
• Compatible with: All duplex receptacles and combination devices
• UL Listed and CSA Certified (implied from similar product range)

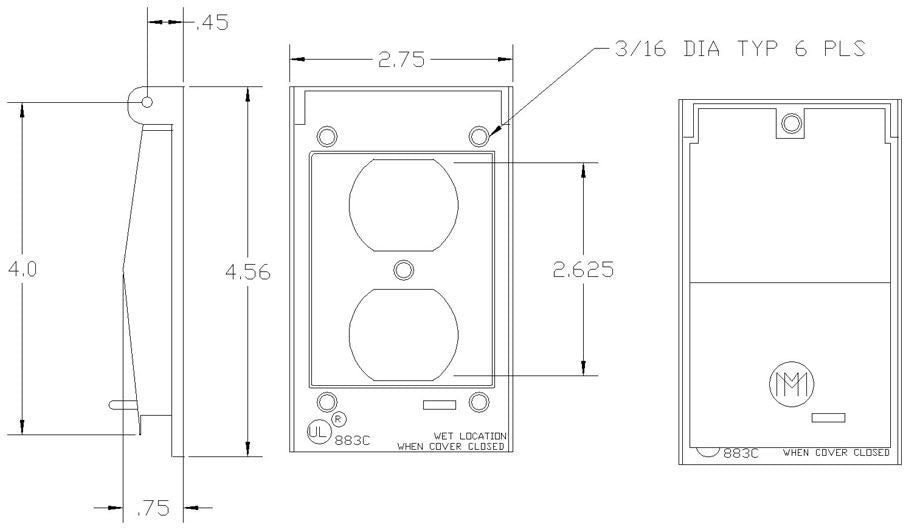

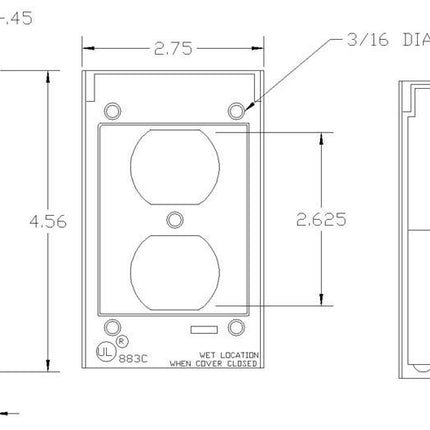

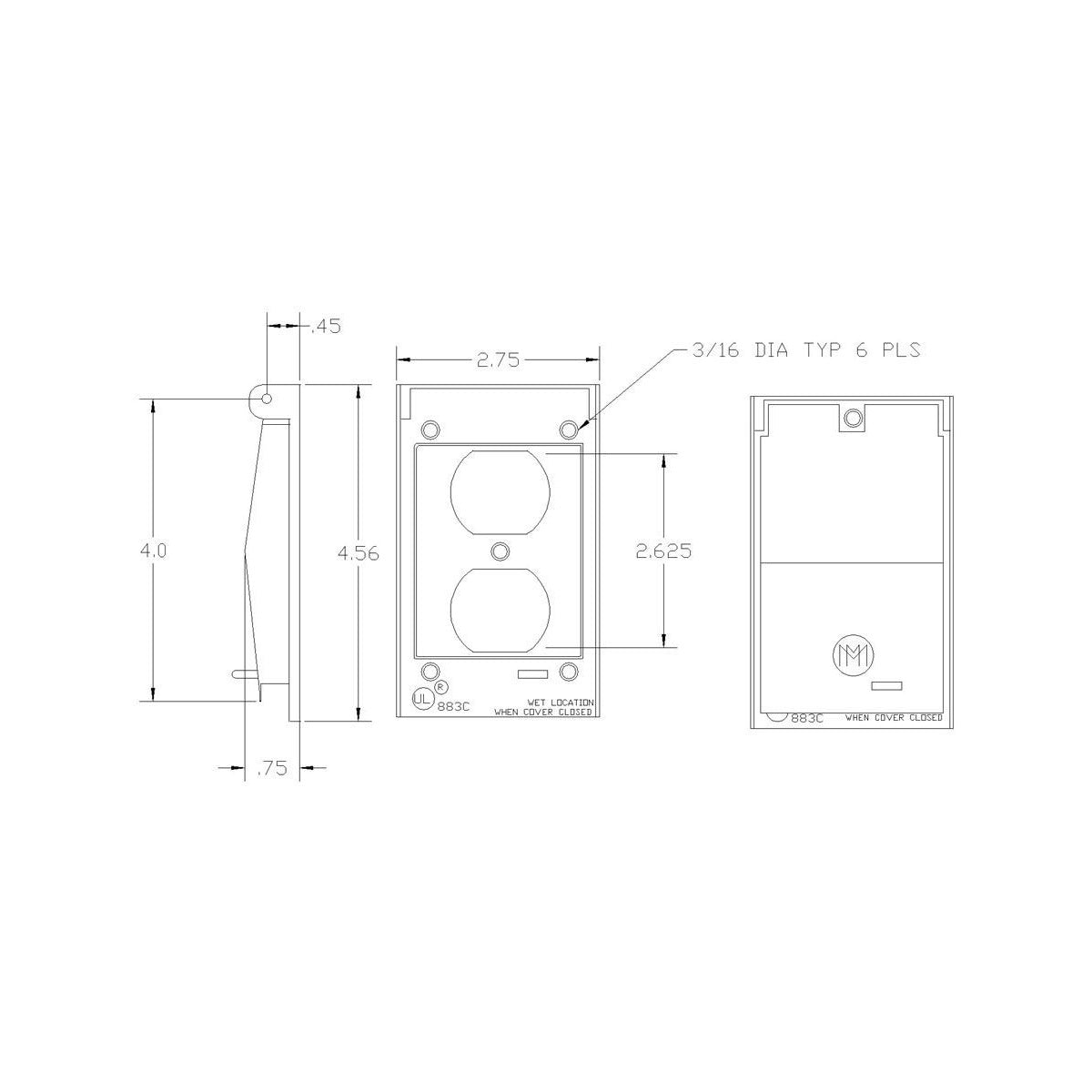

• Dimensions: 4.56" height, 2.75" width, 0.75" depth (from technical drawing)

Features

• Heavy-duty die-cast aluminum construction for durability and corrosion resistance
• Stainless steel hardware including springs, screws, and shaft for enhanced longevity
• Superior powder coat finish for weather resistance in wet locations
• Self-closing cover design with lock hasp compatibility (1/4" inner diameter)
• Designed for wet locations when cover is closed
• Made in the USA
