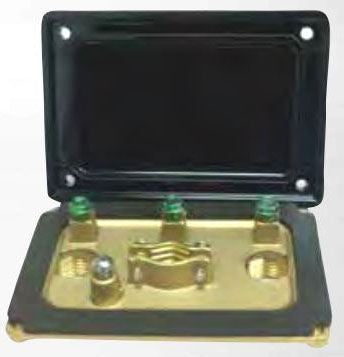

MULBERRY 30385 POOL BOX 3H 1/2IN Swimming Pool Junction Box

The MULBERRY 30385 Pool Box is a swimming pool junction box designed to meet NEC Article 680 requirements for wet locations. Manufactured by Mulberry Metal Products, this box features a solid brass base and a specially formulated gasket to ensure a watertight seal. It includes a Lexan 503® nonconductive, UV-stabilized cover and four grounding posts for secure electrical connections. This product is suitable for electrical distributors and lighting solutions providers requiring reliable wire and cable junction boxes for pool and wet area installations.

Specifications

• Catalog Number: 30385
• Hub Size: 3-1/2” hubs
• Cubic Capacity: 22.0 in³
• Carton Quantity: 12 units
• Weight per 100 units: 155 lbs.
• Material: Solid brass base
• Cover: Lexan 503® nonconductive, UV-stabilized

Features

• Meets NEC Article 680 requirements for swimming pool installations
• Specially formulated gasket for watertight sealing
• Four grounding posts with green screws for secure grounding
• Continuous sealing ridge to keep the interior dry
• Four brass mounting screws included
• Made in the USA

Downloads & Links

• Spec Sheet
