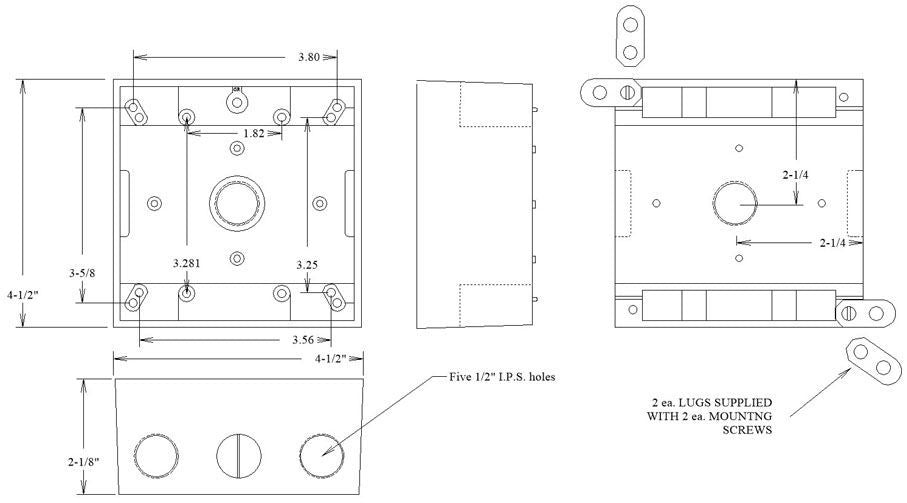

MULBERRY 30245W 2-Gang Weatherproof Box

The MULBERRY 30245W is a heavy-duty 2-gang weatherproof box designed for branch circuit wiring in wet, damp, or dry locations. Manufactured by Mulberry Metal Products, this box is suitable for electrical distributors and switchgear suppliers seeking durable and reliable wire and cable enclosures. It features a superior powder coat finish for maximum weatherability and is made from .094 inch thick die-cast aluminum, ensuring long-lasting protection in demanding environments.

Specifications

• Material: .094 inch Heavy Duty Die Cast Aluminum
• Color: White
• Dimensions: 4.5 in. high x 4.5 in. wide x 2.0 in. deep
• Hub Size: 1/2 inch
• Cubic Capacity: 30.5 cubic inches
• Outlets: 5 (2 in each end, 1 in back)
• UL Listed, c-UL-us Listed
• NEMA 3R Rated
• Made in the USA

Features

• Weatherproof design suitable for wet locations
• Detachable lugs included for flexible mounting options
• Self-tapping ground screw included for easy grounding
• Superior powder coat finish assures maximum weather resistance
• Heavy-duty die-cast aluminum construction for durability
• Compliant with ARRA and U.S. manufacturing standards

Downloads & Links

• Spec Sheet
