MULBERRY 30239W 2G WP BOX 4H-1/2IN W/LG WH Electrical Enclosure

The MULBERRY 30239W is a weatherproof 2-gang lug box designed for use in branch circuit wiring in wet, damp, or dry locations. Manufactured by Mulberry Metal Products, this electrical enclosure is suitable for electrical distributors and lighting solutions requiring durable wire and cable protection. It is also applicable for use by switchgear suppliers needing reliable junction boxes with superior weather resistance.

Specifications

• Material: .094 in Heavy duty Die Cast Aluminum
• Color: White

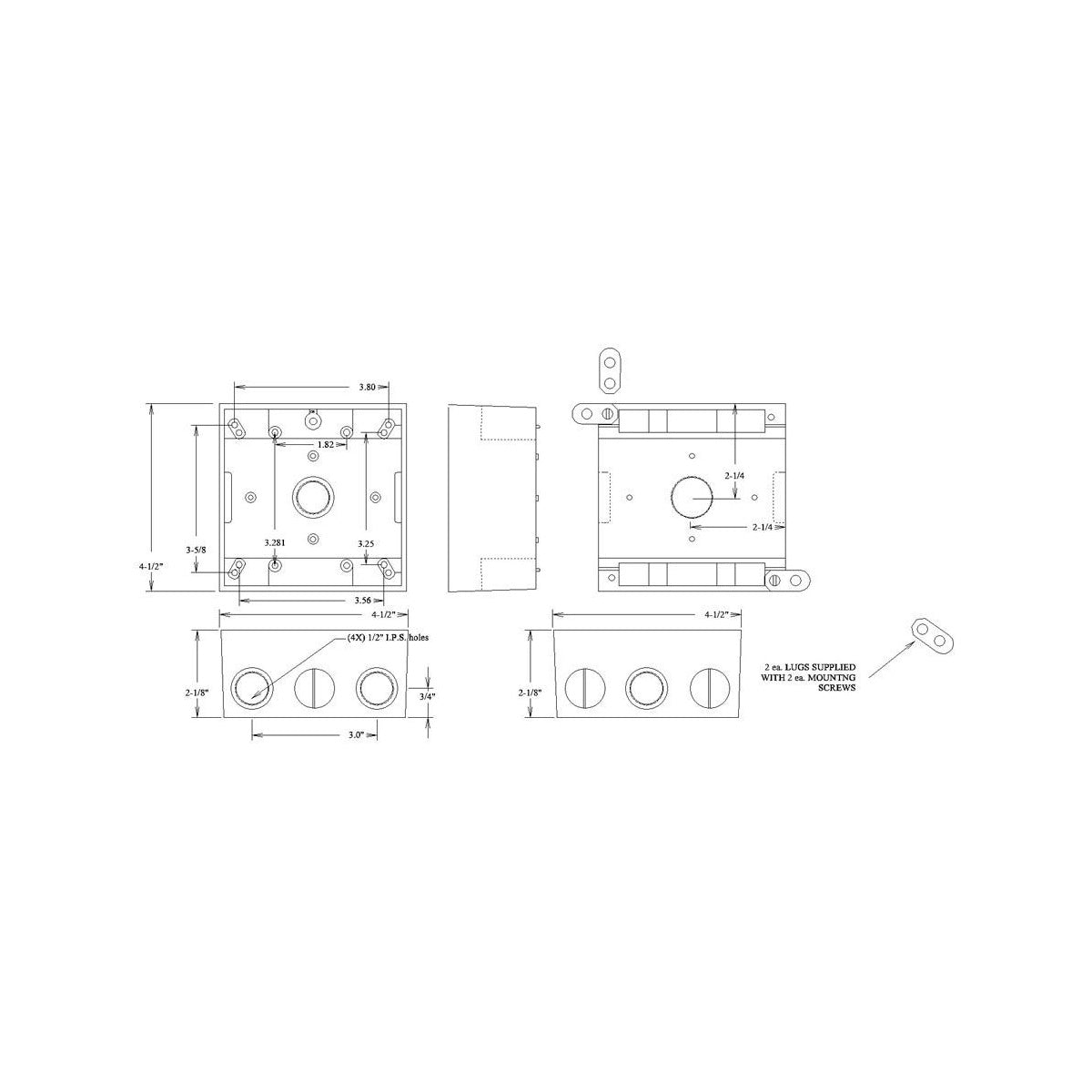

• Dimensions: 4.5 in. high x 4.5 in. wide x 2.0 in. deep
• Weight: 0.4 lbs
• Hub Size: 1/2 inch
• Number of Outlets: 4 (2 in one end, 1 in other end, 1 in back)
• UL Listing: c-UL-us listed for use in the United States and Canada
• NEMA Rating: NEMA 3R
• Country of Manufacture: Made in the USA

Features

• Heavy-duty die-cast aluminum construction ensures durability
• Superior powder coat finish for maximum weatherability
• Detachable lugs included for secure cable connections
• Includes 2 close-up plugs and a self-tapping ground screw
• Suitable for wet locations and outdoor use

Downloads & Links

• Spec Sheet
