MULBERRY 30236W 2G WP BOX 3H-3/4IN W/LG WH Weatherproof Electrical Box

The MULBERRY 30236W is a heavy-duty 2-gang weatherproof lug box designed for use in branch circuit wiring in wet, damp, or dry locations. Manufactured by Mulberry Metal Products, this box is suitable for electrical distributors and lighting solutions requiring durable wire and cable enclosures. It offers reliable protection and mounting options for switchgear and electrical components in outdoor or harsh environments.

Specifications

• Material: 0.094 inch Heavy Duty Die Cast Aluminum
• Color: White
• Hub Size: 3/4 inch I.P.S. (1 in each end, 1 in back)

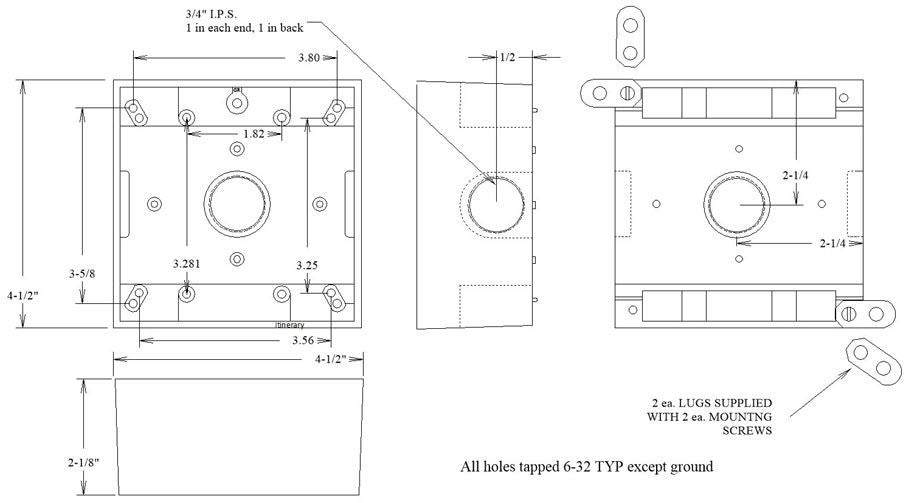

• Dimensions: 4.5 in. high x 4.5 in. wide x 2.0 in. deep
• Cubic Capacity: 30.5 cubic inches
• UL Listing: c-UL-us listed for use in the United States and Canada
• NEMA Rating: NEMA 3R Rated for weather resistance
• Weight per 100 units: 110 lbs

Features

• Suitable for wet locations with superior powder coat finish for maximum weatherability
• Includes detachable lugs, 2 close-up plugs, and self-tapping ground screw
• Made in the USA with heavy-duty die-cast aluminum construction
• Designed for branch circuit wiring in wet, damp, or dry environments

Downloads & Links

• Spec Sheet
