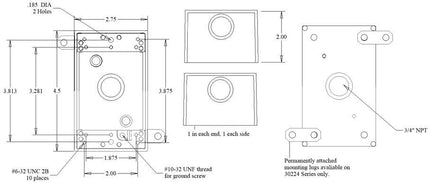

MULBERRY 30228 WP ALUM BOX 6H-3/4IN W/LUG Weatherproof Electrical Box

The MULBERRY 30228 is a heavy-duty weatherproof single gang box designed for use in wet, damp, or dry branch circuit wiring locations. Manufactured from durable .094 inch thick die-cast aluminum, this gray box is suitable for protecting wiring devices, switches, and electrical connections from dirt, dust, and moisture. It features permanently attached rotating mounting lugs for versatile installation and includes a pre-tapped ground screw hole for easy grounding. This product is ideal for electrical distributors and switchgear suppliers seeking reliable weatherproof wire and cable enclosures.

Specifications

• Material: .094 inch Heavy Duty Die Cast Aluminum
• Color: Gray
• Dimensions: 4.5 in. high x 2.75 in. wide x 2.0 in. deep
• Number of Outlets: 6
• Hub Size: 3/4 inch
• Mounting Lugs: Permanently Attached, Rotating
• Cubic Capacity: 18.0 cubic inches
• UL Listed, NEMA 3R Rated
• Made in the USA

Features

• Permanently attached rotating lugs for maximum mounting versatility
• Heavy-duty mounting straps reinforced for superior durability
• Pre-tapped, easily accessible ground screw hole on mounting strap
• Superior powder coat finish for enhanced weather resistance
• Designed to protect electrical wiring devices in wet and outdoor environments
• Compliant with ARRA requirements and manufactured in the USA

Downloads & Links

• Spec Sheet
