MULBERRY 30227 WP ALUM BOX 6H-1/2IN W/LUG Weatherproof Electrical Box

The MULBERRY 30227 is a heavy-duty, weatherproof single gang box designed for branch circuit wiring in wet, damp, or dry locations. Manufactured in the USA by Mulberry Metal Products, this gray die-cast aluminum box provides reliable protection for wiring devices, switches, and electrical connections against dirt, dust, and moisture. It is ideal for electrical distributors and switchgear suppliers seeking durable lighting solutions and wire and cable enclosures compliant with industry standards.

Specifications

• Material: Heavy Duty Die-Cast Aluminum
• Color: Gray

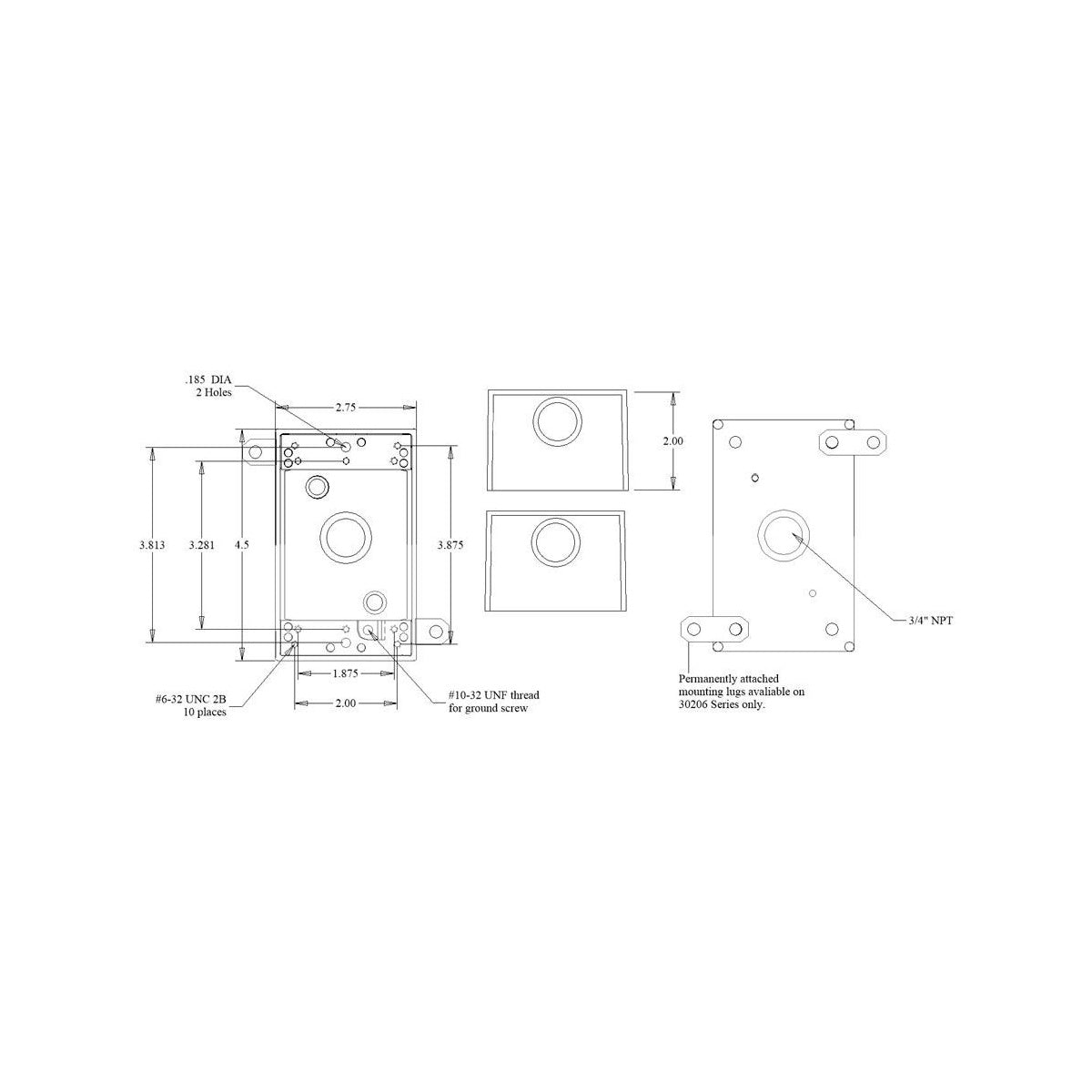

• Dimensions: 4.5 in. high x 2.75 in. wide x 2.0 in. deep
• Hub Size: 1/2 inch
• No. of Outlets: 6 (1 in each end, 2 in one side, 1 in other side, 1 in back)
• Cubic Capacity: 18.0
• Weight: 0.1550 lbs (per unit)
• UL Listed, NEMA 3R Rated
• Manufacturer Part #: 30227
• UPC: 095327302272

Features

• Permanently attached rotating mounting lugs for maximum installation versatility
• Heavy-duty mounting straps exceeding UL pull-test requirements
• Pre-tapped, easily accessible ground screw hole located along the mounting strap surface
• Superior powder coat finish for enhanced weatherability and corrosion resistance
• Designed and manufactured in the USA, meeting ARRA compliance
• Includes ground screw and close-up plugs for complete installation readiness

Downloads & Links

• Spec Sheet
