MULBERRY 30215Z WP BOX 5H-1/2IN W/LUG BRZ – Weatherproof Electrical Box

The MULBERRY 30215Z is a heavy-duty weatherproof single gang box designed for use in branch circuit wiring in wet, damp, or dry locations. Manufactured by Mulberry Metal Products, this box is constructed from .094 inch thick die-cast aluminum with a bronze powder coat finish, making it suitable for electrical distributors and lighting solutions requiring durable and reliable wire and cable protection. It features permanently attached rotating mounting lugs and an easy access ground screw for efficient installation, meeting UL and NEMA 3R standards.

Specifications

• Material: .094 IN Heavy duty Die Cast Aluminum
• Color: Bronze

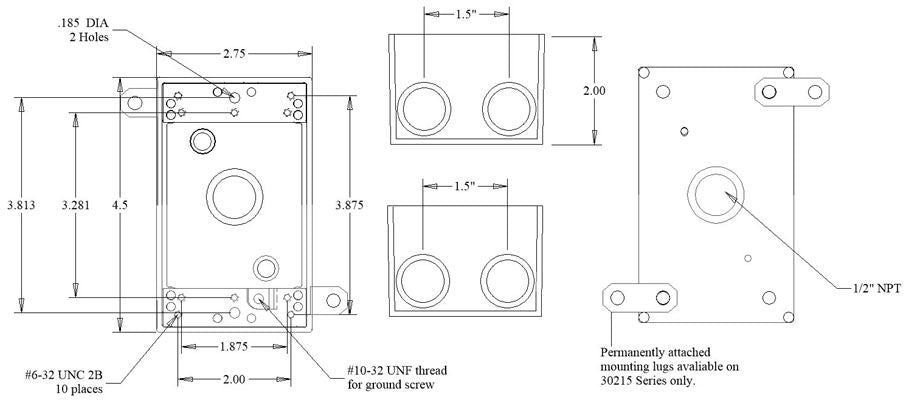

• Dimensions: 4.5 in. high x 2.75 in. wide x 2.0 in. deep
• Hub Size: 1/2 inch
• Number of Outlets: 5
• Cubic Capacity: 18.0
• UL Listed, NEMA 3R Rated
• Ground Screw: Pre-tapped, easily accessible

Features

• Permanently attached rotating mounting lugs for maximum mounting versatility
• Heavy-duty mounting straps reinforced and securely fastened to exceed UL pull-tests
• Superior powder coat finish ensures maximum weatherability
• Comes with ground screw and two close-up plugs
• Made in the USA and ARRA compliant

Downloads & Links

• Spec Sheet
