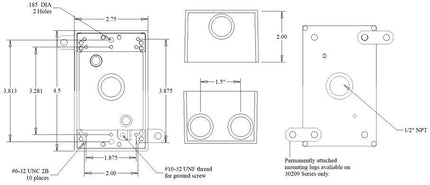

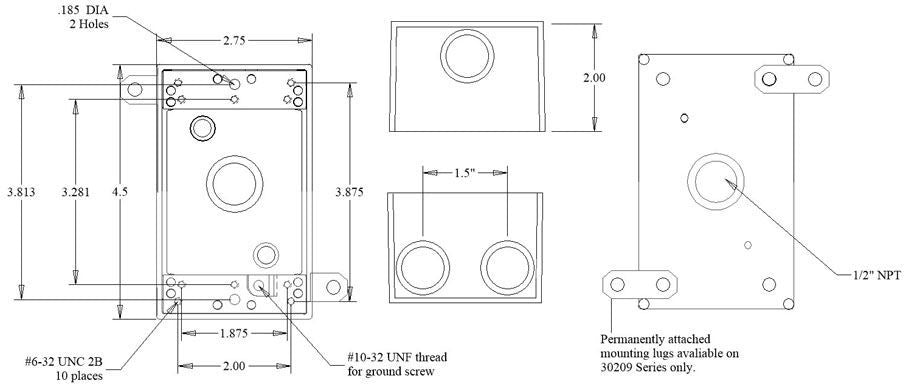

MULBERRY 30209Z WP BOX 4H-1/2IN W/LUG BRNZ – Weatherproof Electrical Box

The MULBERRY 30209Z is a heavy-duty, weatherproof single gang box designed for use in wet, damp, or dry branch circuit wiring applications. Manufactured by Mulberry Metal Products, this box is suitable for electrical distributors and lighting solutions requiring robust wire and cable protection in outdoor or harsh environments. It features permanently attached, rotating mounting lugs for versatile installation and a pre-tapped ground screw hole for easy grounding.

Specifications

• Material: 0.094 inch Heavy Duty Die Cast Aluminum
• Color: Bronze
• Dimensions: 4.5 in. high x 2.75 in. wide x 2.0 in. deep
• Hub Size: 1/2 inch
• Number of Outlets: 4 (2 in one end, 1 in the other end, 1 in back)
• Cubic Capacity: 18.0
• Weight: 0.1 lbs (per unit)
• UL Listed, NEMA 3R Rated
• Made in the USA

Features

• Permanently attached rotating mounting lugs for maximum mounting versatility
• Heavy-duty mounting straps exceed UL pull-test requirements
• Pre-tapped ground screw hole conveniently located on mounting strap for easy ground screw installation
• Superior powder coat finish ensures maximum weatherability
• Includes ground screw and two close-up plugs
• Suitable for wet locations and branch circuit wiring

Downloads & Links

• Spec Sheet
