MULBERRY 30209W WP BOX 4H-1/2IN W/LUG WHT Weatherproof Electrical Box

The MULBERRY 30209W is a heavy-duty, weatherproof single gang box designed for branch circuit wiring in wet, damp, or dry locations. Manufactured by Mulberry Metal Products, this box is constructed from .094 inch thick die-cast aluminum and features a superior powder coat finish for maximum weatherability. It is suitable for electrical distributors, lighting solutions providers, and switchgear suppliers requiring durable and reliable wire and cable enclosures for outdoor or harsh environments.

Specifications

• Material: .094 inch Heavy Duty Die-Cast Aluminum
• Color: White

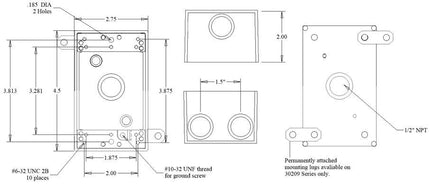

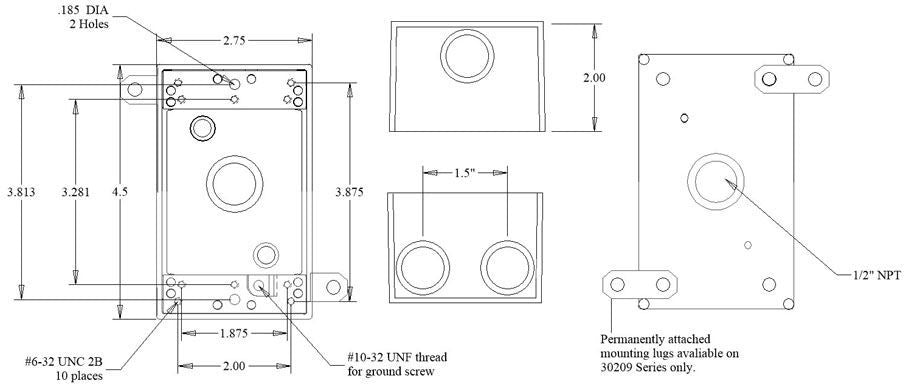

• Dimensions: 4.5 in. high x 2.75 in. wide x 2.0 in. deep
• Hub Size: 1/2 inch
• No. of Outlets: 4 (2 in one end, 1 in the other, 1 in back)
• Cubic Capacity: 18.0 cubic inches
• Mounting Lugs: Permanently attached, swiveling
• UL Listed, NEMA 3R Rated
• Ground Screw: Pre-tapped, easy access located on mounting strap
• Weight per 100 units: 60 lbs
• Made in the USA

Features

• Permanently attached rotating mounting lugs for versatile installation
• Heavy-duty mounting straps exceed UL pull-test requirements
• Superior powder coat finish ensures long-lasting weather resistance
• Pre-tapped ground screw hole positioned for easier ground screw installation
• Includes ground screw and two close-up plugs with each box
• Suitable for wet locations and outdoor applications

Downloads & Links

• Spec Sheet
