MSBRND - SMART BOX FAN & FIXTURE BOXES Electrical Distributor Solution

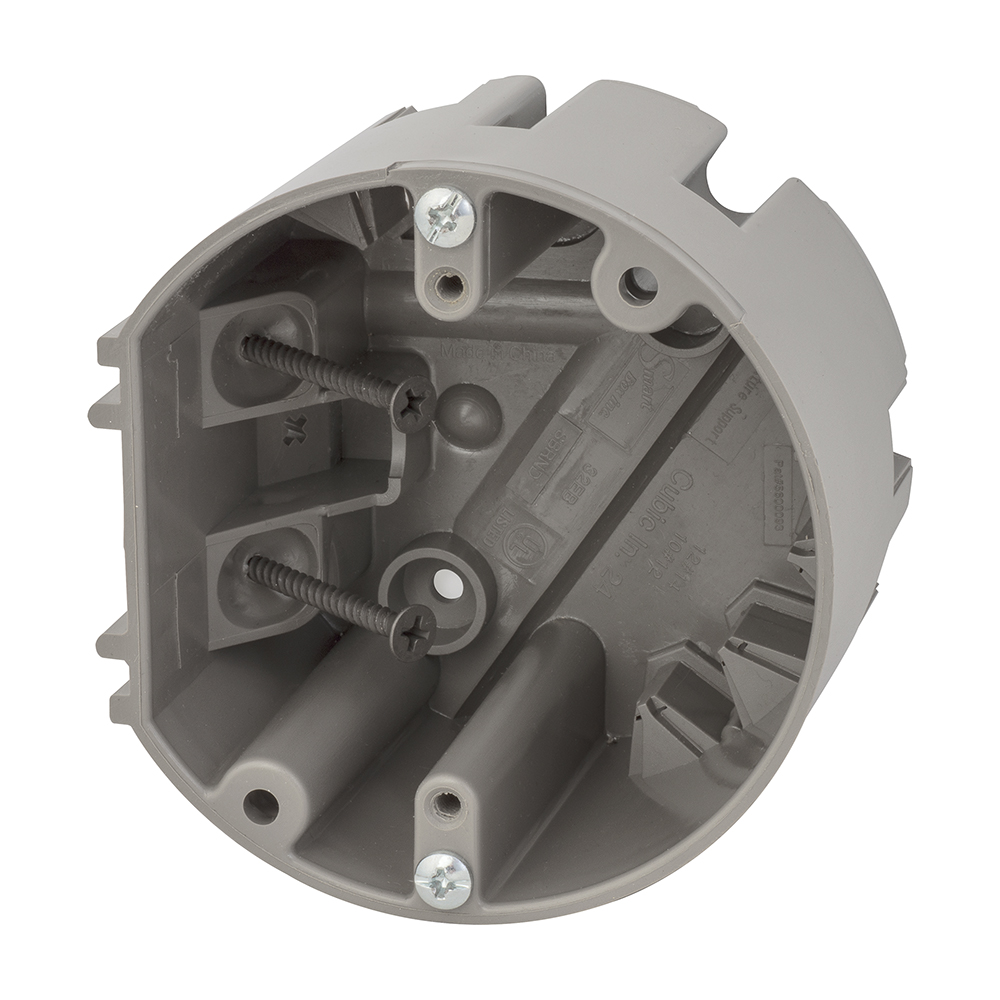

The MSBRND Smart Box by Southwire is designed for mounting light fixtures, fans (MSBFAN only), smoke, and carbon monoxide detectors. Suitable for both new work and old work applications, this fixture box offers a reliable solution for electrical distributors and lighting solutions providers requiring durable and easy-to-install wire and cable management components.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: MSBRND
• Material: Polycarbonate
• Dimensions (HxWxD): 4.00 in. x 3.70 in. x 2.76 in.
• Product Weight: 0.36 lbs.
• Volume: 24.00 cu. in.
• UPC: 784297017681
• Country of Origin: China
• Certifications: UL Listed E205857, RoHS Compliant
• Type of Installation: New Work & Old Work

Features

• Quicker installation compared to nail-on boxes
• Easily removable without damaging walls
• Extra thick wall material for enhanced stability and rigidity
• Heavy-duty design supporting up to 50 lb. light fixtures
• Extra deep for increased wire capacity
• Upgradeable from MSBRND to MSBFAN model
