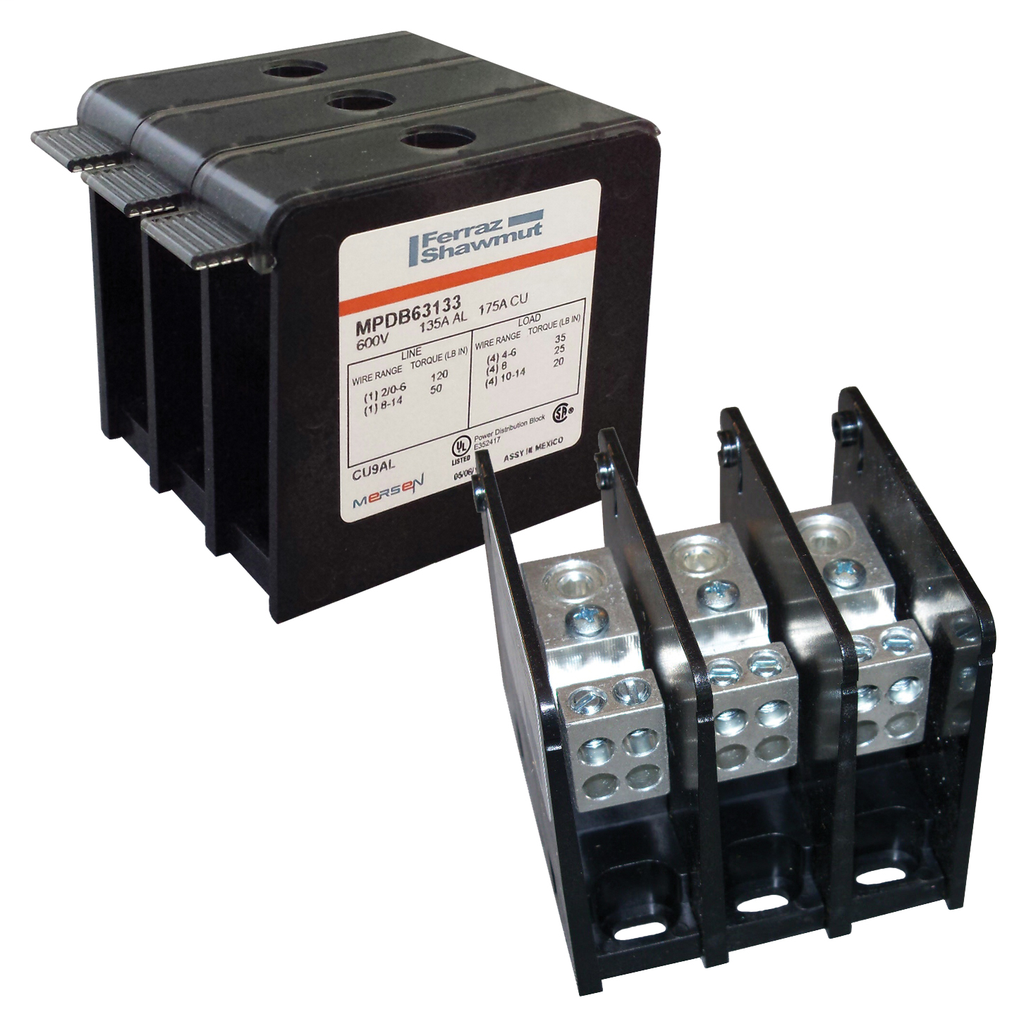

MPDB UL1953 AL MINI 1000V 175A Adder 1 2/0-#14 in-1 2/0-#14 out Box/Box Power Distribution Block

The MPDB UL1953 AL MINI 1000V 175A is a power distribution block designed for electrical distributors and switchgear suppliers, providing a reliable solution for splicing cables, splitting primary power into secondary circuits, and establishing fixed junction tap-off points. This block is suitable for wire and cable applications requiring safe and efficient power distribution in industrial and commercial electrical systems. It meets UL and CSA approvals and complies with UL508A and the National Electrical Code® spacing requirements.

Specifications

• Amperage Rating: 175 A
• Amperage: 135 amperes
• Material: Tin-plated Aluminum
• Connector Material: Tin-plated Aluminum
• Number of Terminals: 1
• Mounting: Direct Screw Mount
• Connection: Box To Box
• Max. Operating Temperature: 80 degrees celsius
• Dimensions (W x H x L): 0.93 in x 2.81 in x 3.08 in
• Country of Origin: Mexico
• Manufacturer Part #: MPDB63150
• UPC: 782001450144

Features

• Safe and easy method for cable splicing and power distribution
• Supports splitting primary power into multiple secondary circuits
• UL and CSA approved, meeting spacing requirements for feeder and branch circuits
• Optional adder poles for increased flexibility and multi-pole configurations without tools
• One-piece tin-plated aluminum connectors compatible with AL or CU wire
• Designed for fixed junction tap-off points
• Compact miniature size category for space-efficient installations

Downloads & Links

• Spec Sheet
