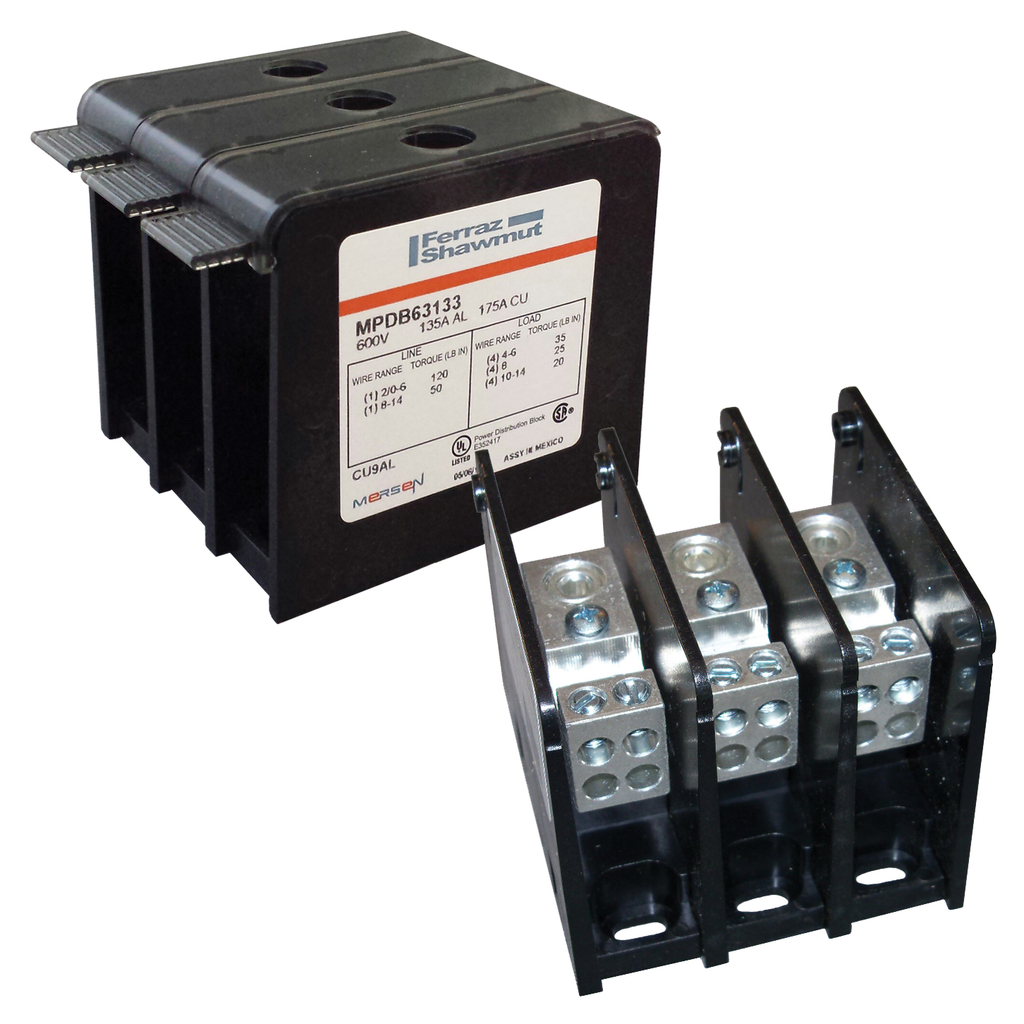

MPDB UL1953 AL MINI 1000V 175A 3-pole Power Distribution Block

The MPDB UL1953 AL MINI 1000V 175A 3-pole power distribution block by Mersen is designed for safe and efficient splicing of cables, splitting primary power into secondary circuits, and serving as fixed junction tap-off points. Suitable for use by electrical distributors and switchgear suppliers, this block meets UL and CSA approvals and complies with UL508A and the National Electrical Code® spacing requirements for feeder and branch circuits. It features a tin-plated aluminum construction with direct screw mounting and is ideal for wire and cable management in electrical distribution and lighting solutions.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: MPDB63133
• Material: Tin-plated Aluminum
• Connector Material: Tin-plated Aluminum
• Number of Poles: 3
• Number of Terminals: 3-pole
• Amperage Rating: 175 A
• Amperage: 135 amperes
• Maximum Operating Temperature: 80 degrees Celsius
• Mounting: Direct Screw Mount
• Connection: Box To Box
• Dimensions (L x W x H): 3.08 in x 2.91 in x 2.81 in
• Product Weight: 0.5600 lbs
• Country of Origin: Mexico
• Application: Splicing cables, splitting primary power into secondary circuits, fixed junction tap-off points
• UPC: 782001449421

Features

• UL Listed to subject 1953 and CSA Certified Class 6228 01
• Safe and easy method for cable splicing and power distribution
• Meets spacing requirements for feeder and branch circuits per UL508A and NEC
• Available in miniature size category for compact installations
• Tin-plated aluminum connectors accept both aluminum and copper wire
• Optional adder poles for increased flexibility and customization (field installable without tools)
• Glass-filled polycarbonate insulators provide durability and shock resistance
• Optional polycarbonate safety covers with test probe holes for circuit checking
• RoHS compliant and lead-free construction
