Product Information

• Approx. Lumens (mean - horizontal): 2750
• Diameter (mm): 54.00
• ANSI Code 2: M98/O
• Approx. Lumens (initial - vertical): 5200
• Warm-up Time (min): 2-4
• Diameter (in): 2.126
• Abbrev. With Packaging Info.: MP70UMED 20/CS 1/SKU
• Average Rated Life - (hr): 10000
• Color Rendering Index (CRI): 75
• Maximum Base Temperature - Fahrenheit: 410
• Light Center Length - LCL (mm): 86
• Base: E26 Medium
• Family Brand Name: Metalarc Pro-Tech®
• Arc Length (mm): 9.5
• Maximum Overall Length - MOL (mm): 138
• Approx. Lumens (initial - horizontal): 5200
• Lamp Finish: Clear
• Color Temperature/CCT (K): 3000
• Average Rated Life - Vertical (hr): 15000
• Hot Restrike Time (min): 5-7
• Maximum Bulb Temperature - Celsius: 400
• Average Rated Life - Horizontal (hr): 10000
• Maximum Base Temperature - Celsius: 210
• Fixture Requirement: O
• Light Center Length - LCL (in): 3.39
• Nominal Wattage (W): 70.00
• ANSI Code: M98/O
• Maximum Bulb Temperature - Fahrenheit: 752
• Maximum Overall Length - MOL (in): 5.43
• Nominal Voltage (V): 85.00

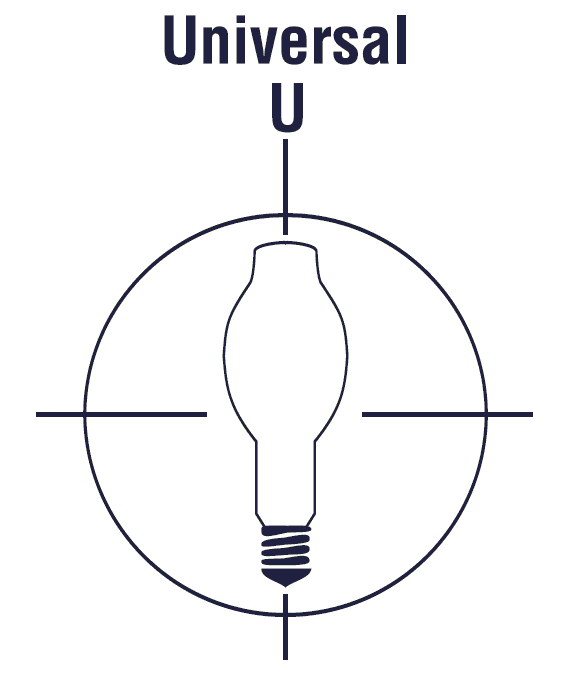

• Operating Position: Universal
• Approx. Lumens (mean - vertical): 2750
• Arc Length (in): 0.37
• Bulb: E17

Additional Product Information

Packaging Information

• Pallet Qty: 1320
• SKU's/Case: 20
• Case Depth (in): 7.700
• Cases/Pallet: 66
• SKU's/Pallet: 1320
• Case Weight (lbs): 5.820
• SKU Qty: 1
• Case Qty: 20
• Case Length (in): 14.000
• SKU UPC: 046135645471
• Case Width (in): 11.800
• Case Cube (ft): 0.736

Product Documents, Graphs, and Images

Footnotes

• Use with 4000V pulse rated sockets only.
• O = Lamps classified as O-type, comply with ANSI standard C78.389 for containment testing and may be used in open luminaries. See lamp warning.
