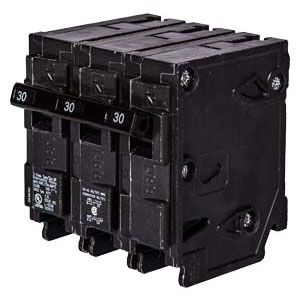

MP360 Miniature Circuit Breaker for Electrical Distribution

The Siemens MP360 Miniature Circuit Breaker is designed for low voltage residential applications, providing circuit protection for load center mains, feeders, and miniature circuit breakers. It is suitable for use in 100 AMP, 3-phase output WML meter stacks, making it an ideal component for electrical distributors and switchgear suppliers managing residential power distribution systems.

Specifications

• Number of Poles: 3
• Continuous Current Rated Value: 60 A
• Supply Voltage Frequency Rated Value: 50/60 Hz
• Ambient Temperature During Operation Maximum: 40 ¬∞C
• Mounting Type: Plug-In
• Standard: HACR Rated
• Manufacturer: Siemens
• Manufacturer Part Number: MP360
• Product Weight: 1.0050 lbs

Features

• Miniature thermal magnetic circuit breaker for reliable overload and short circuit protection
• Plug-in mounting type for easy installation and replacement in panelboards and load centers
• HACR rated for compatibility with heating, air conditioning, and refrigeration equipment
• Designed specifically for 3-pole, 240 VAC residential power distribution
• Suitable for use in 100 AMP, 3-phase output WML meter stacks only
