Description

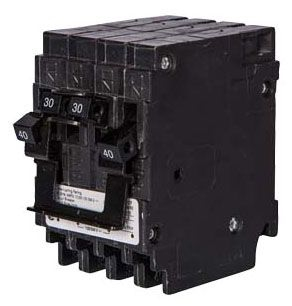

MP230230CT2 Miniature Circuit Breaker - Siemens Electrical Protection
The MP230230CT2 is a Siemens miniature thermal magnetic circuit breaker designed for low voltage residential applications. It is suitable for electrical distributors and switchgear suppliers requiring reliable circuit protection in load centers, feeders, and panelboards. This breaker features a plug-in mounting type and supports wire sizes compatible with both copper and aluminum conductors, making it a versatile component in lighting solutions and wire and cable systems.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: MP230230CT2
- Current Rating: 30 amperes
- Number of Poles: 4 (Quadplex)
- Mounting Type: Plug-In
- Voltage Rating: 120/240 V
- Interrupt Rating: 10 kA
- Wire Size Compatibility: 14-6 AWG Copper, 12-6 AWG Aluminum
- Dimensions: Height 3 in, Width 2 in
- Operating Temperature: Maximum 40 °C
- Certifications: UL Listed, CSA Certified, SWD, HACR Rated
- Product Weight: 0.8330 lbs
Features
- Half-inch width per pole construction optimizes panel space
- Plug-in design enables easy installation and replacement
- Thermal magnetic trip mechanism provides reliable overcurrent protection
- Certified to meet UL, CSA, and HACR standards ensuring compliance and safety
- Compatible with both copper and aluminum wiring for flexible installation
