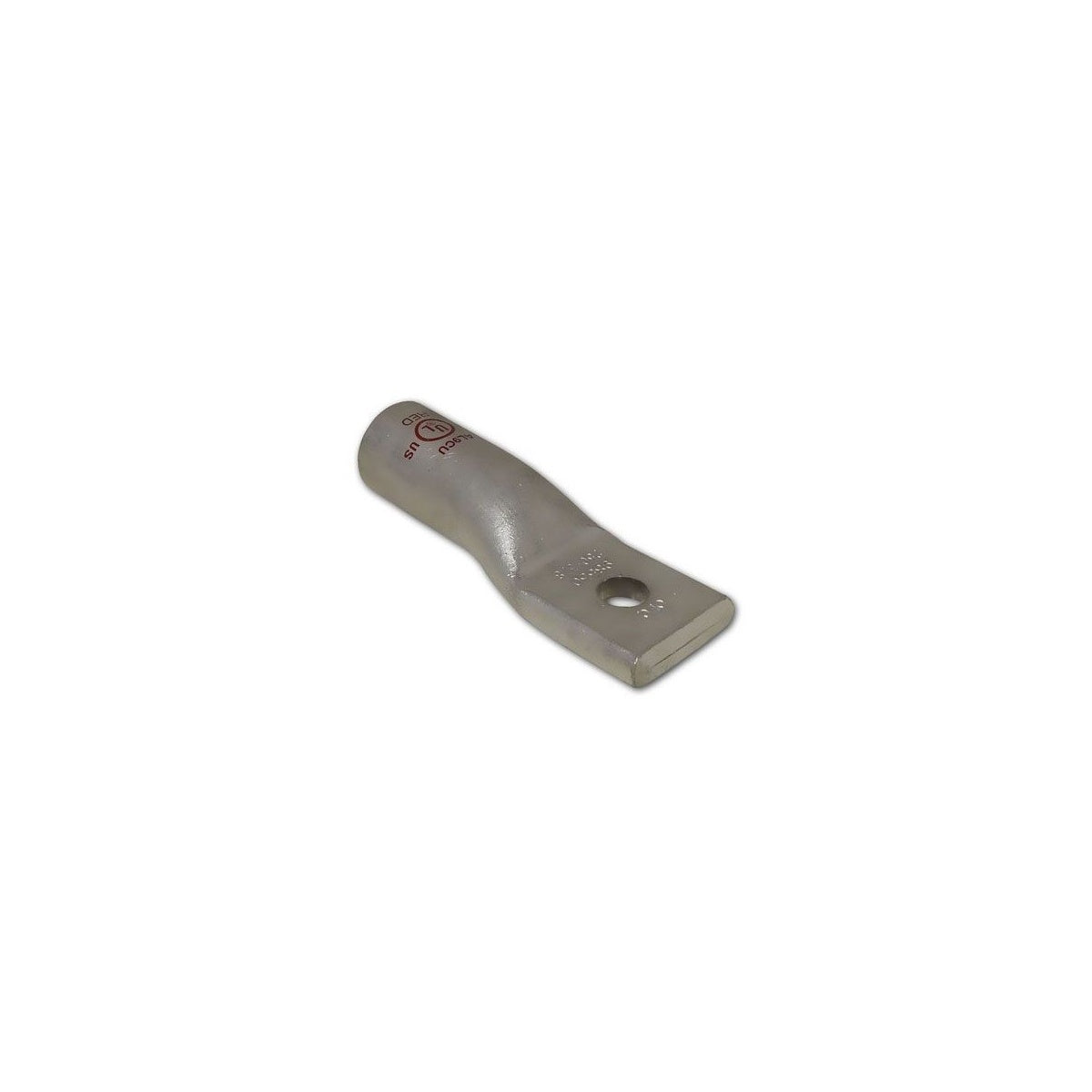

MORRIS 93052 MLA3/0-3/8 ALUM 1 HOLE LUG
SKU: #404497
Part: #93052
UPC: 601986930529
MORRIS 93052 MLA3/0-3/8 ALUM 1 HOLE LUG
SKU: #404497
Part: #93052
UPC: 601986930529
Total Price: $7.74 per each Sold in increments of 1 each
Description
MORRIS 93052 MLA3/0-3/8 ALUM 1 HOLE LUG Electrical Connector
The MORRIS 93052 MLA3/0-3/8 aluminum long barrel compression lug is designed for secure electrical connections in wire and cable applications. It is suitable for both aluminum and copper conductors, making it a reliable choice for electrical distributors and switchgear suppliers seeking high conductivity and corrosion resistance in lighting solutions and power distribution systems.
Specifications
- Material: 6061-T6 Aluminum
- Manufacturer: Morris Products
- Manufacturer Part #: 93052
- Wire Range: 3/0 Stranded
- Stud Size: 3/8 inch
- Color Code: Ruby
- Dimensions (inches): A: 0.48, C: 0.76, J: 3.00, B: 1.40, D: 1.03, F: 0.28, E: 0.41, G: 0.50, PL: 1.12
- Product Weight: 0.1310 lbs
- UPC: 601986930529
Features
- UL Listed for use with both aluminum and copper conductors
- Pre-filled with oxide inhibitor to prevent corrosion
- Constructed from high-conductivity seamless aluminum
- Electro-tin plating reduces contact resistance and enhances conductivity
- Single mounting hole for easy installation
- Color-coded die index and crimp marks printed on barrel for precise application
