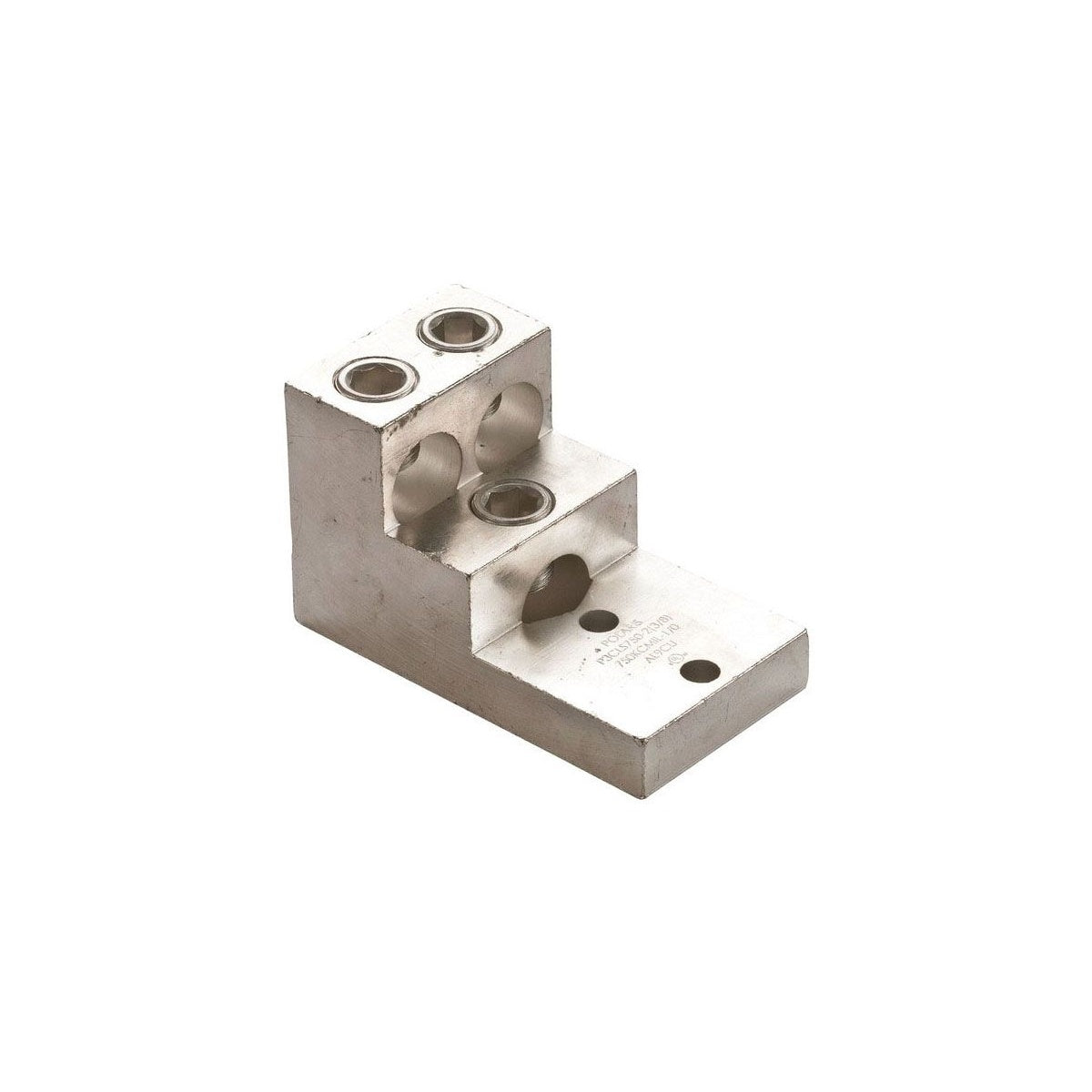

MORRIS 90918 600 3COND PANELBOARD LUG – Aluminum Mechanical Lug

The MORRIS 90918 600 3COND PANELBOARD LUG is a dual-rated mechanical lug designed for use in electrical distribution and panelboard applications. Manufactured from high-strength 6061-T6 aluminum alloy, it ensures maximum conductivity and durability. This lug is suitable for both copper and aluminum conductors, making it a versatile choice for electrical distributors, lighting solutions, wire and cable installers, and switchgear suppliers.

Specifications

• Material: 6061-T6 Aluminum
• Conductor Capacity: 600MCM-2STR (Three Conductors)
• Length: 4.92 inches
• Width: 2.70 inches
• Height: 3.00 inches
• Hole Spacing: 1.38 inches
• Stud Size: 0.375 inches
• Product Weight: 2.4 lbs
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• UPC: 601986909181

Features

• Manufactured from high-strength 6061-T6 aluminum alloy for optimal strength and conductivity
• Dual rated for use with both copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and protect against corrosion
• Assembly requires only a screwdriver or Allen wrench
• Connectors are reusable
• UL486B Listed and UL recognized for safety and reliability
• NEMA standard 1-3/8" center hole spacing for easy installation
