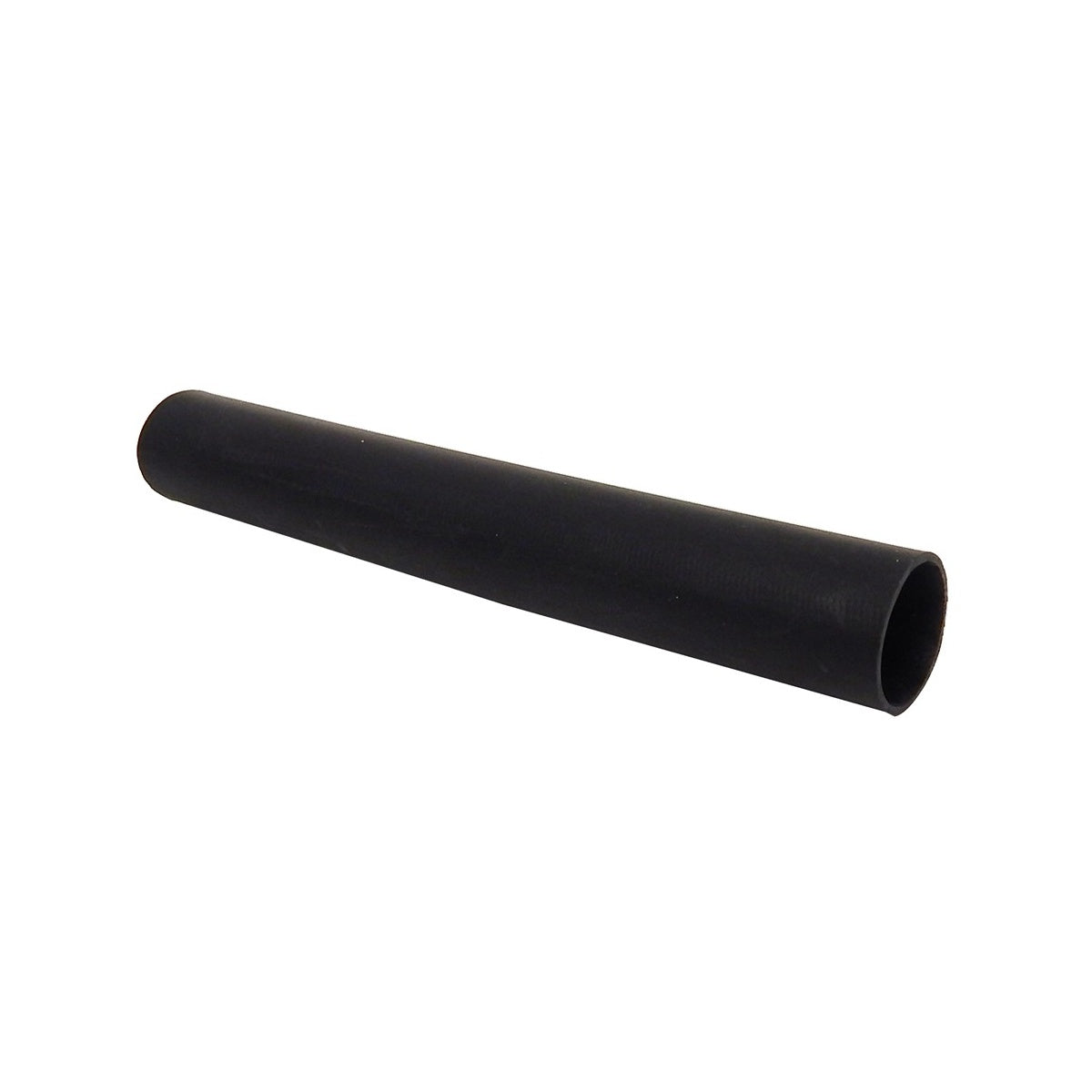

MORRIS 68172 4FT 2.00-.63 250-500 HEAT SHRINK - Heat Shrink Tubing

The MORRIS 68172 heat shrink tubing is designed for insulating and protecting cable joints and terminations in electrical and mechanical applications. This product is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable protection. It features a 4-foot length made from durable polyolefin material, providing environmental protection and insulation with a thermoplastic adhesive liner. The tubing is rated for 600-2500V and offers continuous operating temperatures from -67°F to 230°F (-55°C to 110°C), making it suitable for a variety of demanding installations.

Specifications

• Manufacturer: Morris Products
• Manufacturer Part #: 68172
• Length: 4 in
• Material: Polyolefin
• Cable Range: 250-500 MCM
• Diameter Before Shrinking: 2.00 in
• Diameter After Shrinking: 0.63 in
• Wall Thickness: 0.16 in
• Operating Voltage: 600-2500V
• Operating Temperature: -67°F to 230°F (-55°C to 110°C)
• Shrink Temperature: 248°F (120°C)
• Product Weight: 1.05 lbs
• Color: Black

Features

• Thermoplastic adhesive liner for complete environmental protection and insulation
• High resistance to impact, abrasion, corrosion, and chemicals
• Suitable for low voltage electrical and mechanical applications requiring flexibility and lightweight materials
• UL 486D certified for safety and reliability
• Provides reliable mechanical protection, suitable for underground and direct burial installations

Downloads & Links

• Spec Sheet
