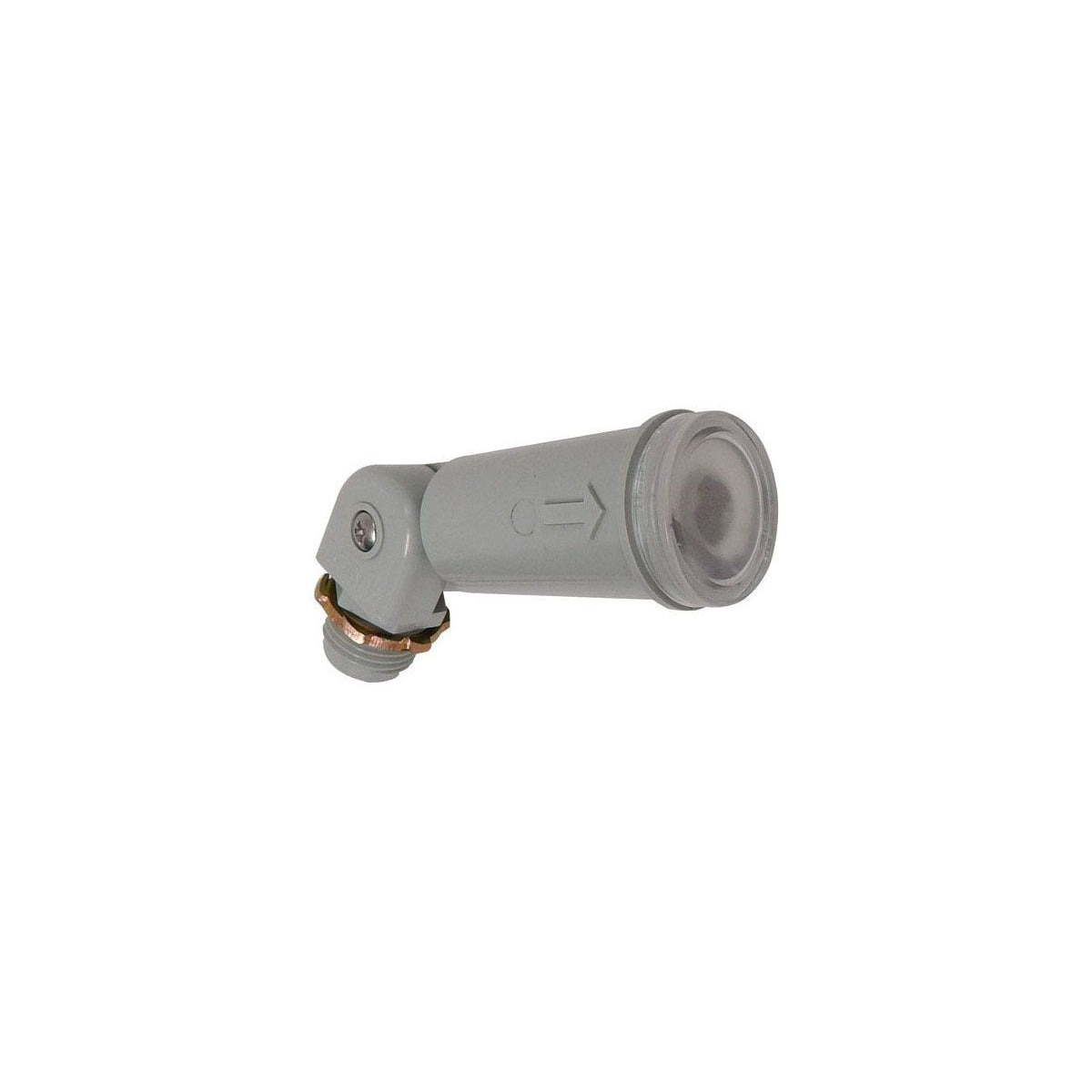

MORRIS 39060 Pencil Type Photoeye 120V Lighting Control

The MORRIS 39060 Pencil Type Photoeye is a weatherproof lighting control device designed for precise dusk-to-dawn operation in residential and commercial lighting systems. Its thin cylindrical shape allows installation in tight spaces between floodlights or other fixtures. This photoeye is suitable for electrical distributors and lighting solutions providers seeking reliable photocontrol components compatible with wire and cable installations.

Specifications

• Voltage: 120V
• Tungsten Rating: 1200W
• Ballast Rating: 1000 VA
• Power Consumption: Below 0.9 Watts Average
• Temperature Range: -40¬∞F to +150¬∞F
• Contact Position at Night: Normally Closed
• Housing Material: Weatherproof Polycarbonate
• Switch Type: Single Pole, Single Throw
• Thread Size: Standard 1/2" I.P.S. Pipe Threaded Nipple
• Leads: 6" Color Coded with Wiring Diagram on Control

Features

• Field adjustable swivel base for directing photocell away from stray light
• ‚ÄúO‚Äù ring sealed to prevent water ingress through the knuckle
• Heavy-duty thermal bi-metal switch with 30-45 second time delay to prevent unwanted lamp cycling caused by lightning or car headlights
• Compact pencil type design for installation in narrow or confined spaces
• Typically mounts on fixtures or boxes, suitable for dusk-to-dawn lighting control

Downloads & Links

• Spec Sheet
