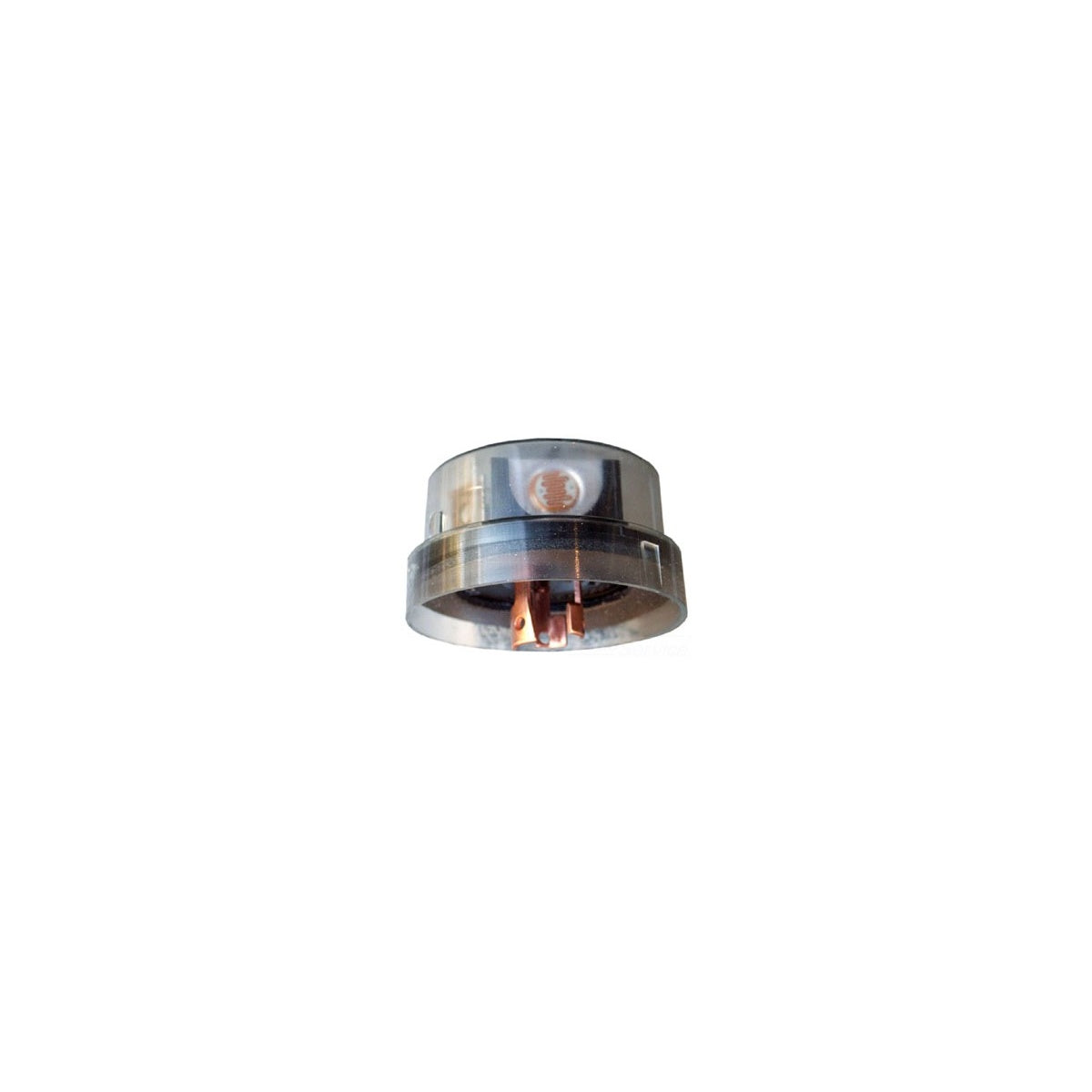

MORRIS 39050 Locking Type Photoeye 120V Photocontrol

The MORRIS 39050 locking type photoeye is a weatherproof photocontrol designed for residential and commercial lighting applications. It provides dusk-to-dawn automatic control of lighting systems, suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers. This model features a heavy-duty thermal bi-metal switch with a 30-45 second time delay to prevent unwanted lamp cycling caused by transient light sources such as lightning or vehicle headlights.

Specifications

• Voltage: 120V
• Tungsten Rating: 1000W
• Ballast Rating: 1800 VA
• Power Consumption: Below 1.5 Watts Average
• Temperature Range: -40¬∞F to +150¬∞F
• Contact Position at Night: Normally Closed
• Housing Material: Weatherproof Polycarbonate
• Connector Type: Locking-type with 3/4‚Äù Long 3/8‚Äù Threaded Nipple & Nut for 1/2‚Äù Knockout
• Lead Length: 6‚Äù Color Coded Leads with Wiring Diagram
• Product Weight: 0.2630 lbs

Features

• Heavy-duty thermal bi-metal switch with 30-45 second time delay to eliminate unwanted cycling
• Locking-type design for secure installation in dusk-to-dawn fixtures
• Compact, weatherproof polycarbonate housing suitable for outdoor use
• Easy wiring with color-coded leads and clear wiring diagram
• Operates reliably within a wide temperature range

Downloads & Links

• Spec Sheet
