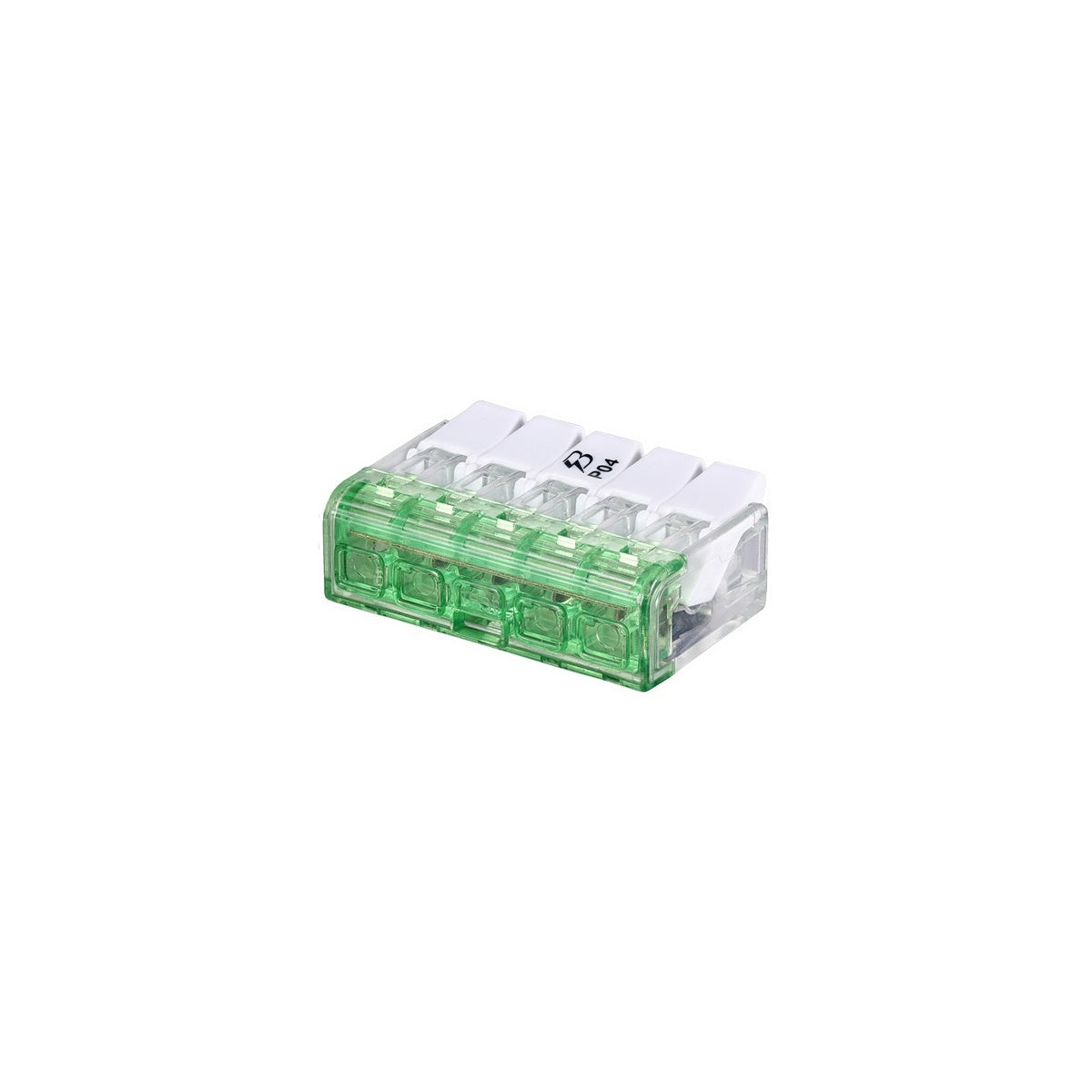

MORRIS 23296 5 Pole Push-In Wire Connector Lever - Push-In Wire Connectors

The MORRIS 23296 5 Pole Push-In Wire Connector Lever is designed for quick and reliable electrical connections in various applications including OEM lighting manufacturing, junction boxes, control panels, security/alarm systems, prefabricated wiring systems, and lighting retrofits. This product is suitable for electrical distributors and lighting solutions providers requiring efficient wire management with push-in technology that accepts both stranded and solid conductors.

Specifications

• Poles: 5
• Voltage: 600V
• Current: 32 Amps
• Wire Range (Solid/Stranded): 24-12 AWG
• Dimensions (L x W x H): 0.78" x 1.18" x 0.39"
• Housing Material: Polycarbonate
• Flame Retardant Rating: UL 94V-2
• Working Temperature: 221¬∞F (105¬∞C)
• UL Listed for Copper Conductors Only
• Product Weight: 0.0150 lbs

Features

• Push-in installation eliminates twisting or taping, reducing installation time and costs
• Accepts stranded or solid conductors for versatile wiring applications
• Low wire insertion force allows fast and easy connections
• No-twist connection reduces repetitive motion fatigue
• See-thru housing enables visual inspection of connections
• Test port included for continuity testing
• Electrolytic tin-plated copper internal bus ensures high conductivity
