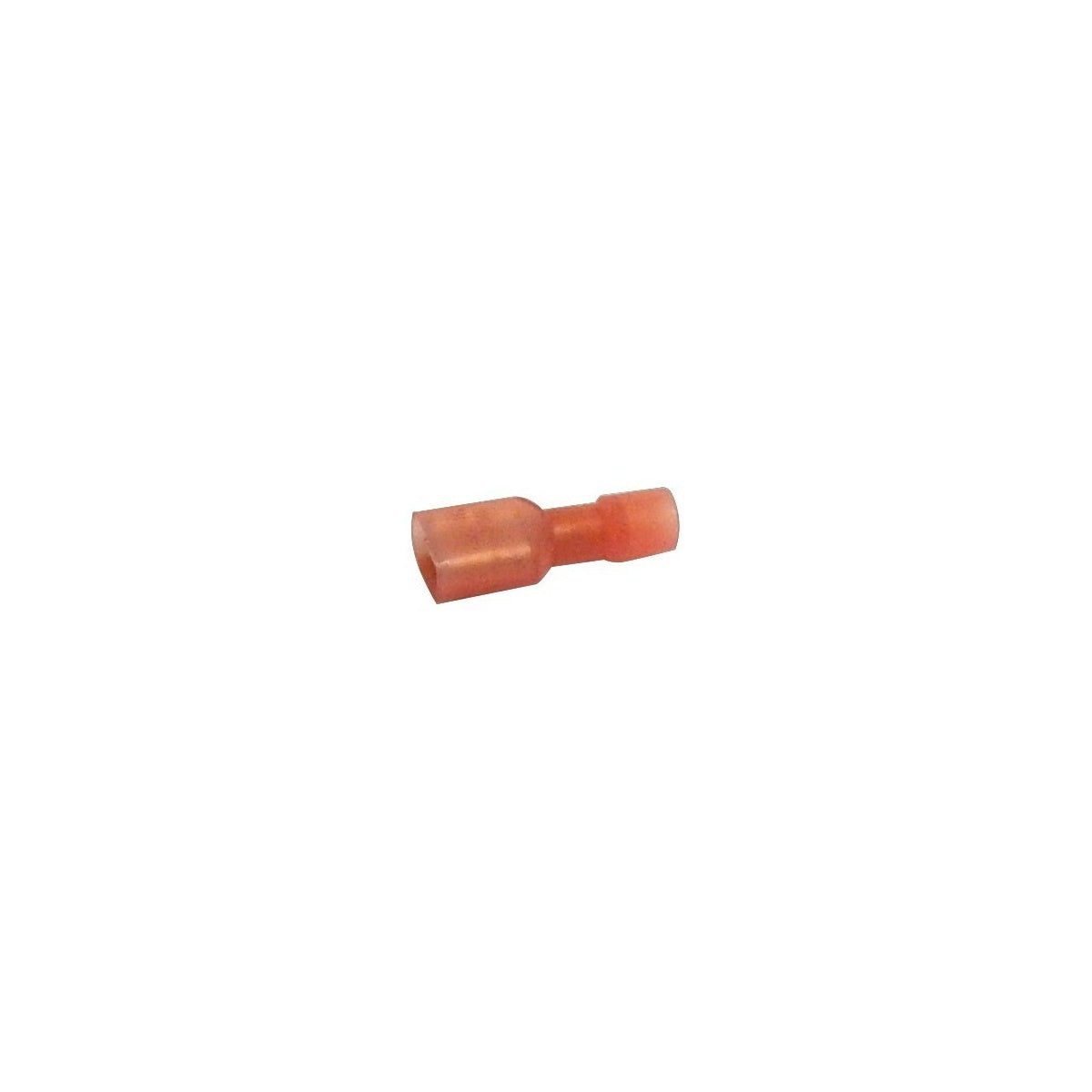

MORRIS 11962 22-16 Nylon Fully Insulated Female Disconnect - Wire and Cable Connector

The MORRIS 11962 is a nylon fully insulated female disconnect designed for reliable electrical connections in wire and cable management applications. It is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant connectors for 22-16 AWG wire sizes. This product supports lighting solutions and general electrical wiring needs with its robust construction and standardized dimensions.

Specifications

• Material: Brass/Copper
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: 0.110" x 0.020"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 16 AWG - 10 Amps, 18 AWG - 7 Amps, 20 AWG - 4 Amps, 22 AWG - 3 Amps

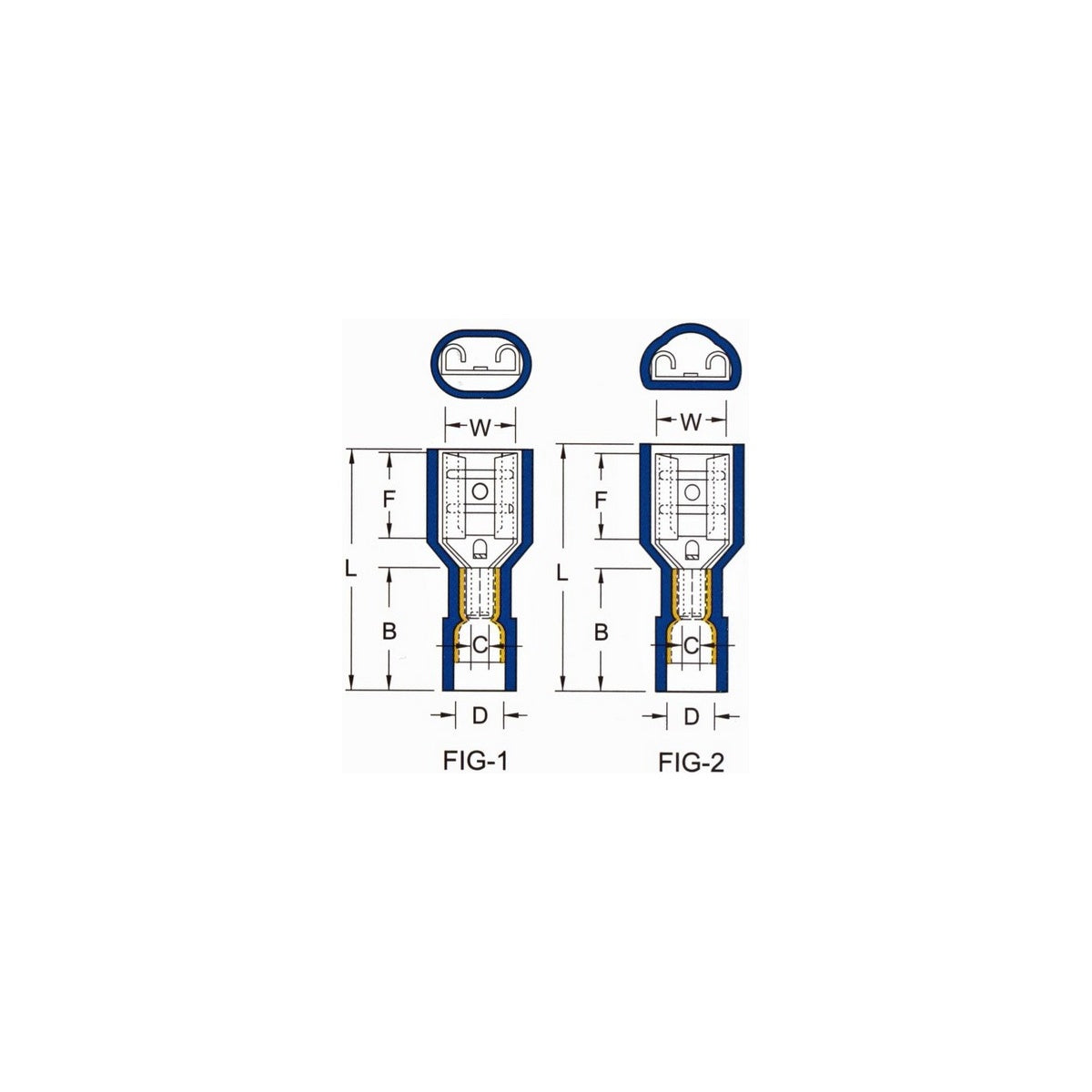

• Dimensions (inches): L - 0.768, B - 0.433, C - 0.067, D - 0.157, F - 0.252, W - 0.126
• Stock Thickness: 0.012 inches
• Bag Quantity: 100
• Master Bag Quantity: 1000
• UPC: 601986119627
• Manufacturer Part #: 11962

Features

• Nylon color-coded insulation for easy identification
• Manufactured from high-strength copper alloy
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand ‚Äúhang up,‚Äù provides strain relief, and offers UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel with extended copper sleeve ensures excellent electrical contact and pull-out force resistance
• Double crimp design with copper sleeve on barrel for secure connection
• UL, cUL, and RoHS certified
