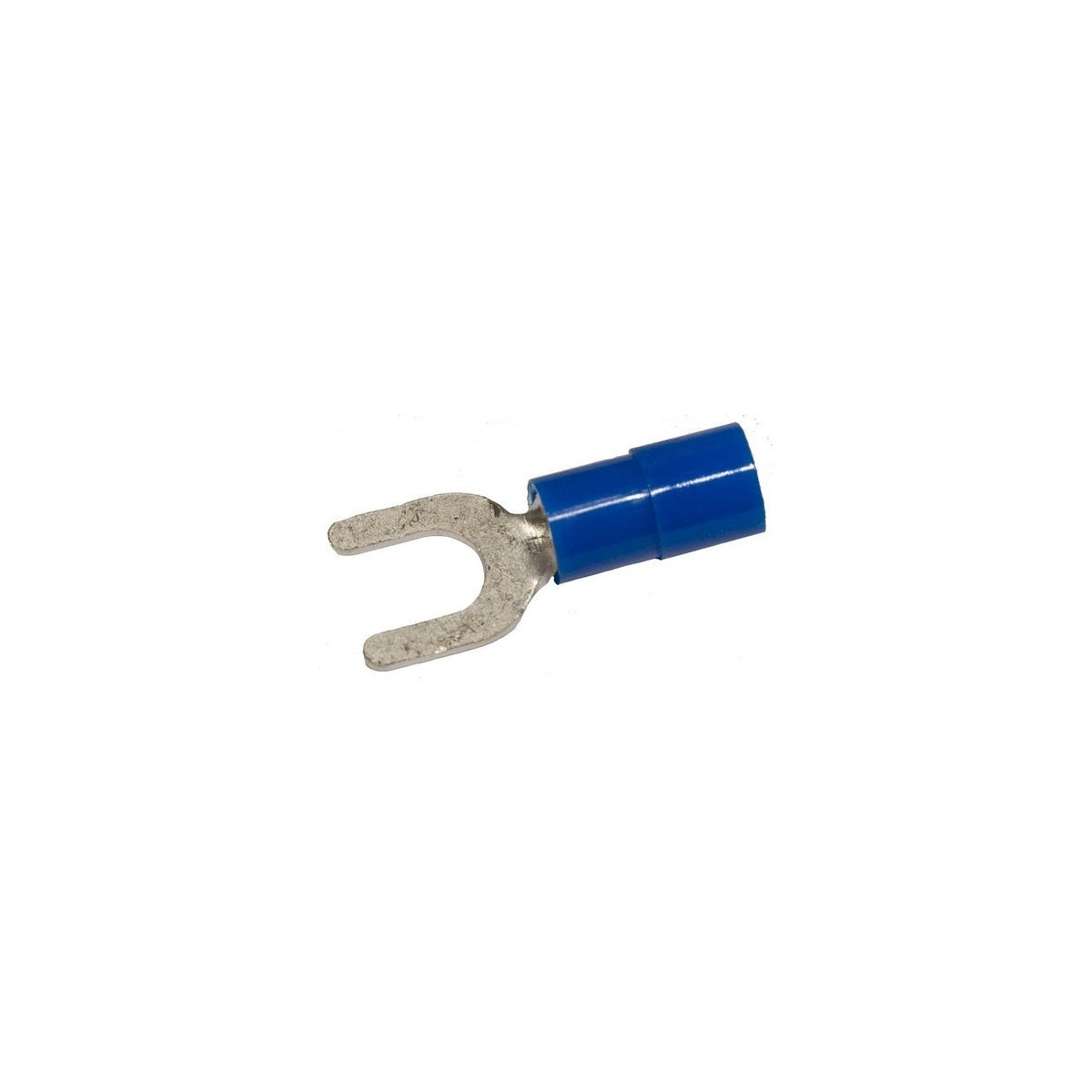

MORRIS 11628 16-14 Nylon Insulated Spade Terminal

The MORRIS 11628 is a nylon insulated fork spade terminal designed for reliable electrical connections in wire management and lighting solutions. Suitable for wire sizes 16-14 AWG and stud size #10, it is manufactured from high-strength copper alloy with electro-tin plating for corrosion resistance. This product is ideal for electrical distributors and switchgear suppliers requiring durable and efficient wire and cable termination components.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #10
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Finish: Electro-Tin Plated
• Dimensions (inches): L 0.866, D 0.177, D1 0.091, D2 0.209, E 0.433, F 0.256, W 0.366, T 0.031
• Bag Quantity: 100
• Master Bag Quantity: 1000
• Certifications: UL, cUL, RoHS Compliant

Features

• Color-coded nylon insulation for easy wire size identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation design eliminates strand hang-up, improving crimping reliability
• Wire range stamped on the terminal surface for easy interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent electrical contact and mechanical stress relief
