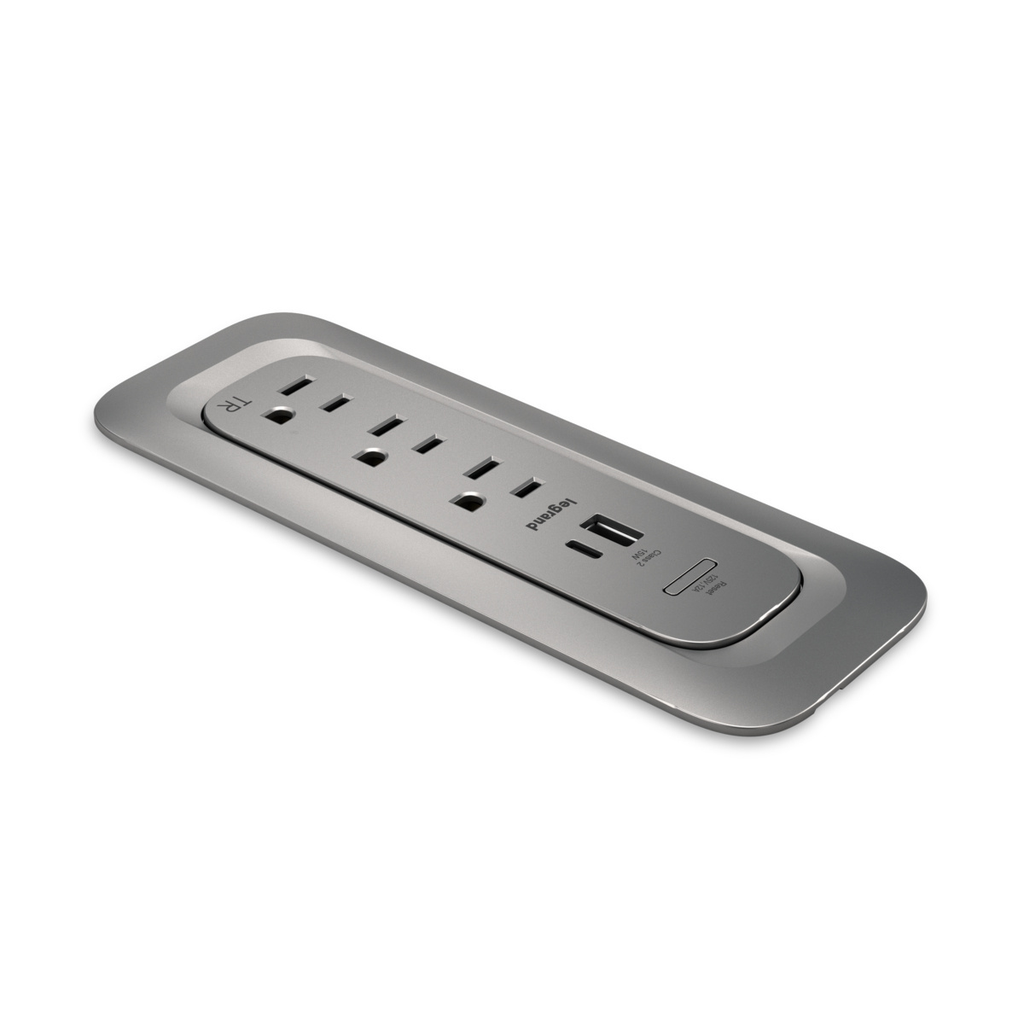

ModPower Primary Unit, In Surface - Modular Power System

The ModPower Primary Unit, In Surface by Wiremold is a modular, code-compliant power solution designed for flexible commercial and office workspaces. This in-surface power unit provides convenient access to power and charging, ideal for reconfigurable environments such as workstations, training areas, and meeting rooms. It features tamper-resistant receptacles and integrated USB A and USB C ports, combining safety and versatility. The system supports up to six units connected together, offering scalable power distribution while maintaining compliance with electrical codes. Its sleek magnesium finish and slim design allow for unobtrusive installation directly into furniture surfaces, with included mounting accessories for a clean, professional look.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: MDSF10-MG
• Color: Magnesium
• Dimensions: 7.625 in (Length) x 2.75 in (Width) x 2.625 in (Height)
• Weight: 3.4386 lbs
• Electrical Outlets: Three 15A, 125Vac tamper-resistant receptacles
• USB Ports: One USB Type-A and one USB Type-C, 5Vdc, 3.1A shared output
• Circuit Breaker: 15A built-in for overcurrent protection
• Cord Set: 10 ft input cord with NEMA 5-15P plug, 3 ft output cord with female connector
• Mounting: In-surface installation with included mounting box and clamp system
• Country of Origin: China
• Compliance: UL Listed to UL962A Supplement SD, CSA certified to CSA Standard C22.2 No. 203-16, FCC Part 15 compliant
• Maximum System Length: 48.5 ft total with up to 6 units connected

Features

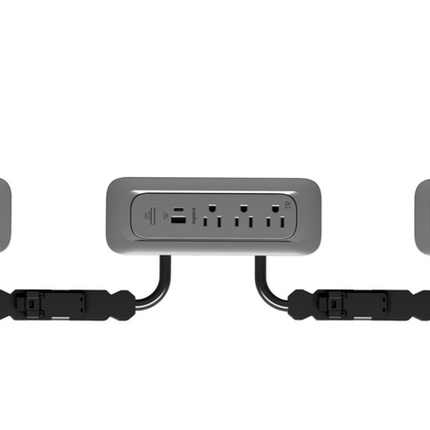

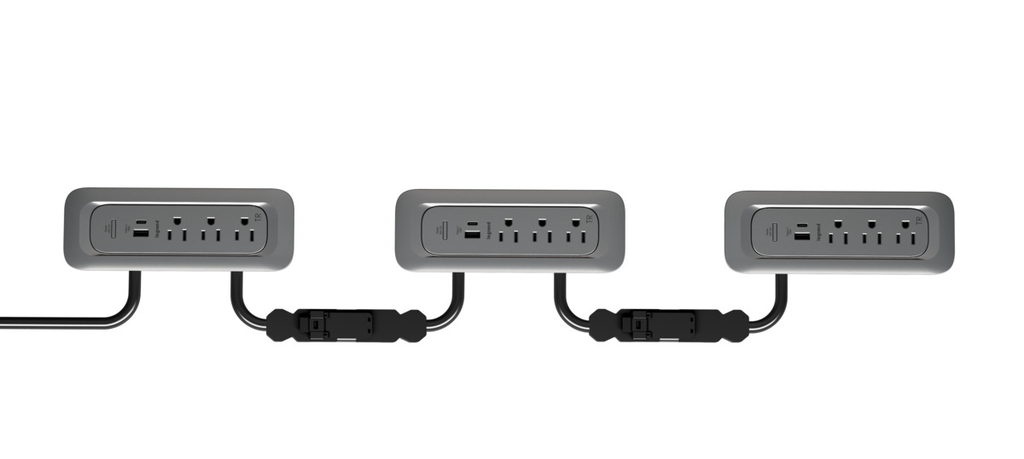

• Modular system allowing up to six units to be connected for flexible power distribution
• Code-compliant design meeting National Electrical Code and UL962A standards
• Tamper-resistant receptacles enhance safety in commercial environments
• Integrated USB A and USB C ports provide versatile charging options

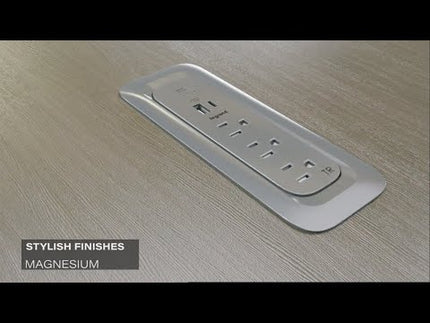

• Sleek magnesium finish with included bezel conceals mounting hardware for clean aesthetics
• UL Spill Water Compliant for safe use on horizontal surfaces like tabletops
• Easy installation with cutout template, clamp mounting, and snap-on bezel
• Includes cable management clips to secure cords and reduce clutter
• Touch-safe connectors with latching mechanism prevent unintended disconnection
