ModPower Primary Unit, In Surface
SKU: #280242
Part: #MDSF10-WH
UPC: 786776195347

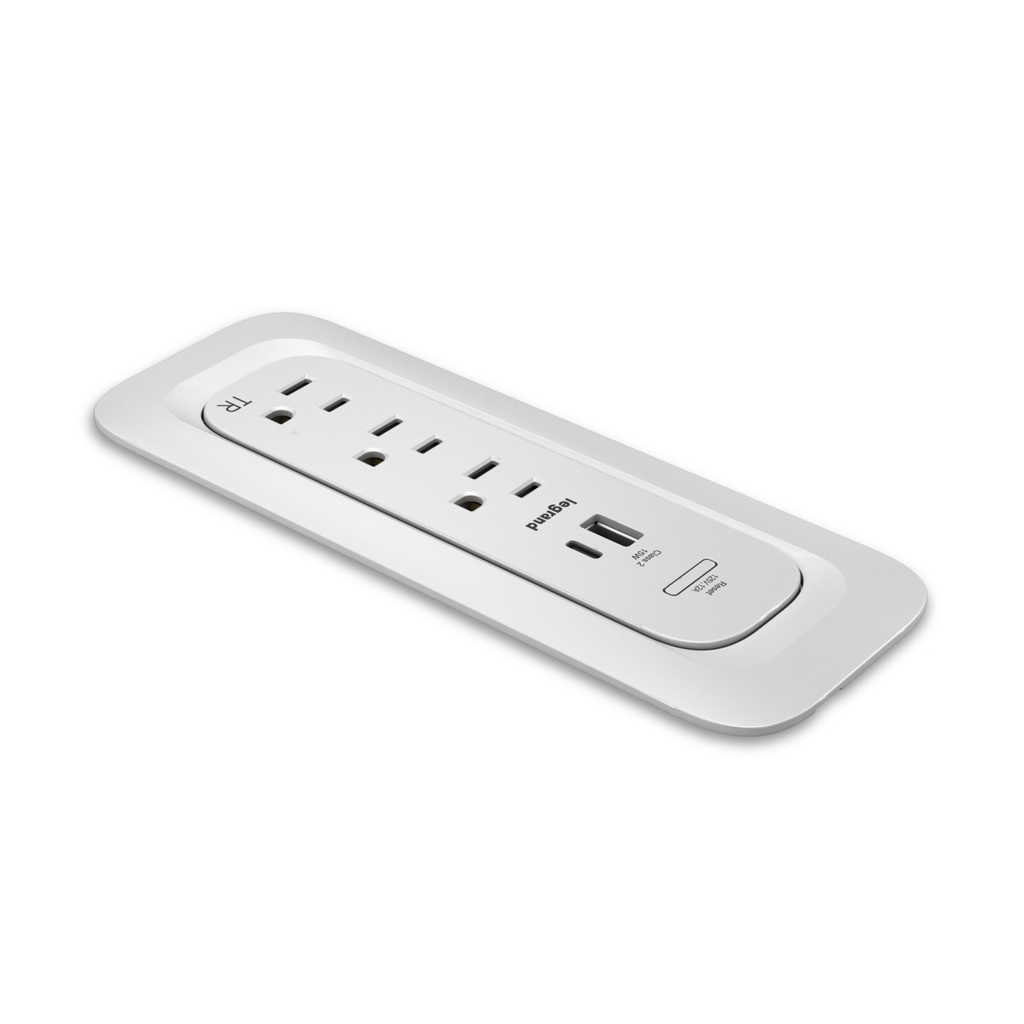

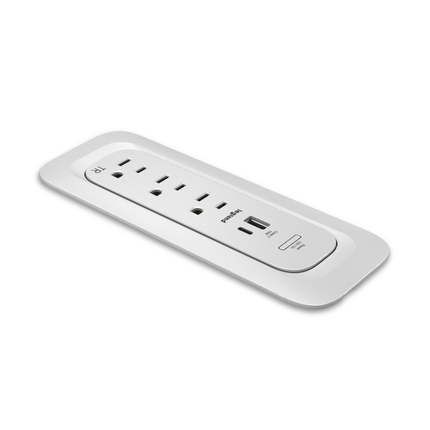

ModPower Primary Unit, In Surface
SKU: #280242
Part: #MDSF10-WH
UPC: 786776195347
Description
ModPower Primary Unit, In Surface - Modular Power System
The ModPower Primary Unit, In Surface by Wiremold is a code-compliant modular power solution designed for flexible commercial spaces. Ideal for integration into workstations, training areas, and meeting rooms, this unit provides convenient and accessible power and charging options. It features tamper-resistant receptacles and USB ports, making it suitable for modern office environments. This in-surface unit is designed to be installed flush within a table or furniture surface, with a clean aesthetic that hides mounting screws and includes cable management clips for organized wire routing.
Specifications
- Manufacturer: Wiremold
- Manufacturer Part #: MDSF10-WH
- Color: White
- Dimensions: 7.625 in (Length) x 2.75 in (Width) x 2.625 in (Height)
- Weight: 3.4386 lbs
- Country of Origin: China
- Electrical Outlets: Three 15A tamper-resistant receptacles
- USB Ports: One USB Type-A and one USB Type-C, shared 5V DC, 3.1A
- Circuit Breaker: 15A
- Cord Length: 10 ft input cord with NEMA plug, 3 ft output cord with female connector
- Installation: In-surface mounting with included mounting box and bezel
- Compliance: UL Listed to UL962A Supplement SD, CSA Certified to CSA Standard C22.2 No. 203-16
- FCC Compliance: Meets FCC Part 15, Subpart B
Features

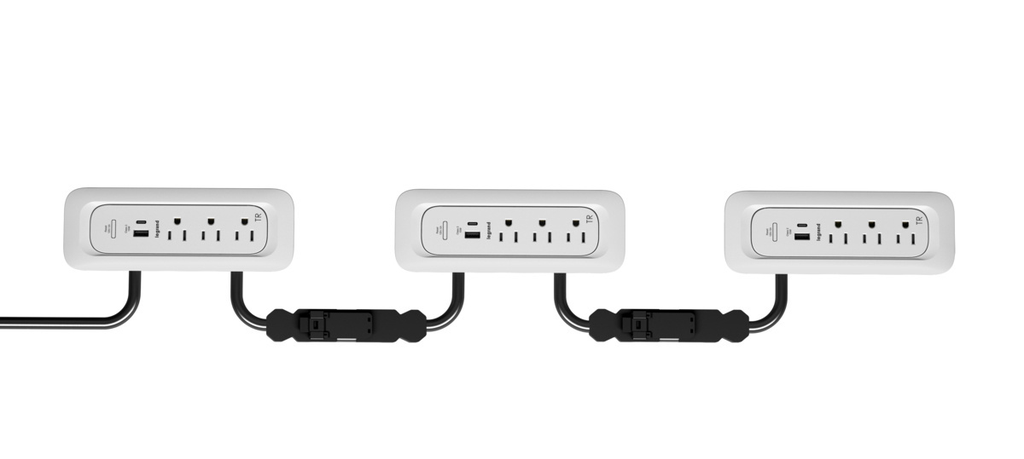

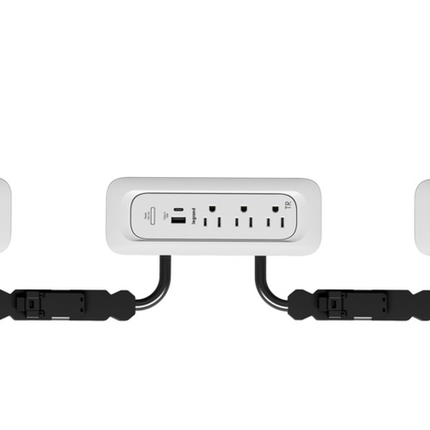

- Modular system allows connection of up to six units for flexible power distribution
- Code-compliant design meets National Electrical Code and UL standards for furniture power distribution
- Tamper-resistant receptacles enhance safety by preventing unauthorized access
- USB ports provide convenient charging for mobile devices

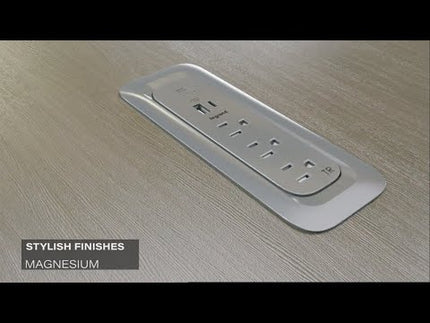

- Sleek, low-profile design fits flush into furniture surfaces for a clean appearance
- Includes mounting box and bezel to hide screws and facilitate installation
- Comes with cable management clips to secure cords and reduce clutter
- UL Spill Water compliant, suitable for installation in horizontal surfaces such as tabletops
- Easy installation with clamp system and template for precise cutout
