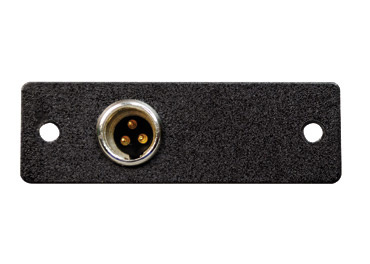

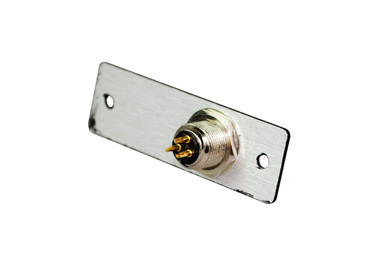

Mini XLR 3-Pin Male to Solder Cups – Audio Connector

The Wiremold Mini XLR 3-Pin Male to Solder Cups (Model AV8010BK) is designed for secure audio connectivity within Wiremold A/V compatible pathways. This single device plate provides a reliable connection point for audio applications, suitable for integration into poke-thru devices, floor boxes, vista columns, raceways, and work surface portals. As part of Wiremold's AVIP Series, it supports professional audio wiring needs for electrical distributors and lighting solutions providers.

Specifications

• Contact Resistance: 50 mΩ max
• Insulation Resistance: 500 MΩ
• Dielectric Withstanding Voltage: 1000 VAC for 1 minute
• Current Rating: 5A @ 125 VAC
• Dimensions: 2.2" Length x 0.7" Width x 0.74" Depth
• Country of Origin: Mexico
• Manufacturer: Wiremold
• Manufacturer Part Number: AV8010BK
• Product Weight: 0.0590 lbs

Features

• Metal, screwed-in connections ensure a secure and durable connection that resists being pulled out or disconnected during use
• Fits into existing Wiremold pathways and faceplates for quick and easy installation
• Single plate design compatible with Wiremold A/V pathways
• Designed specifically for audio applications requiring Mini XLR 3-pin male connections to solder cups
