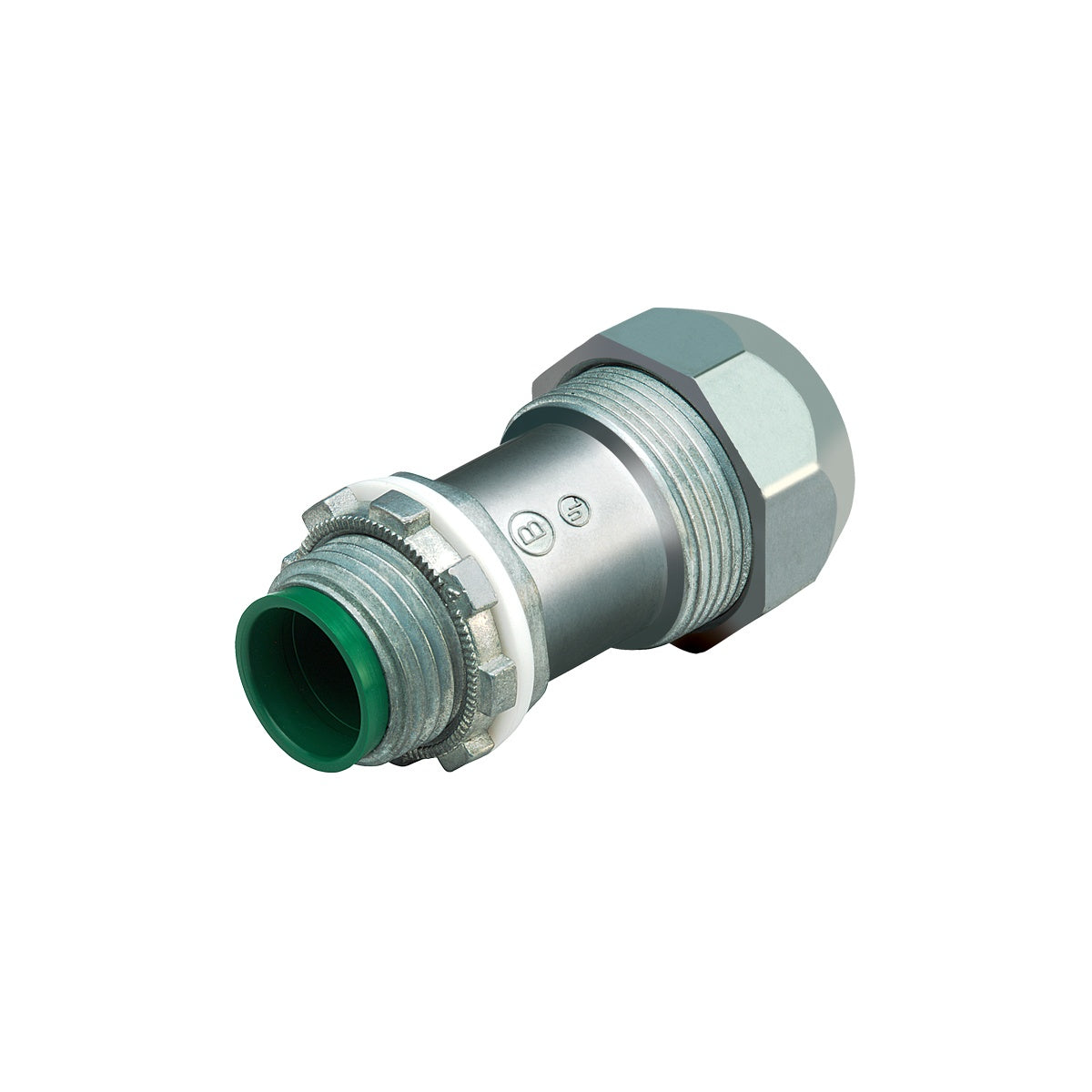

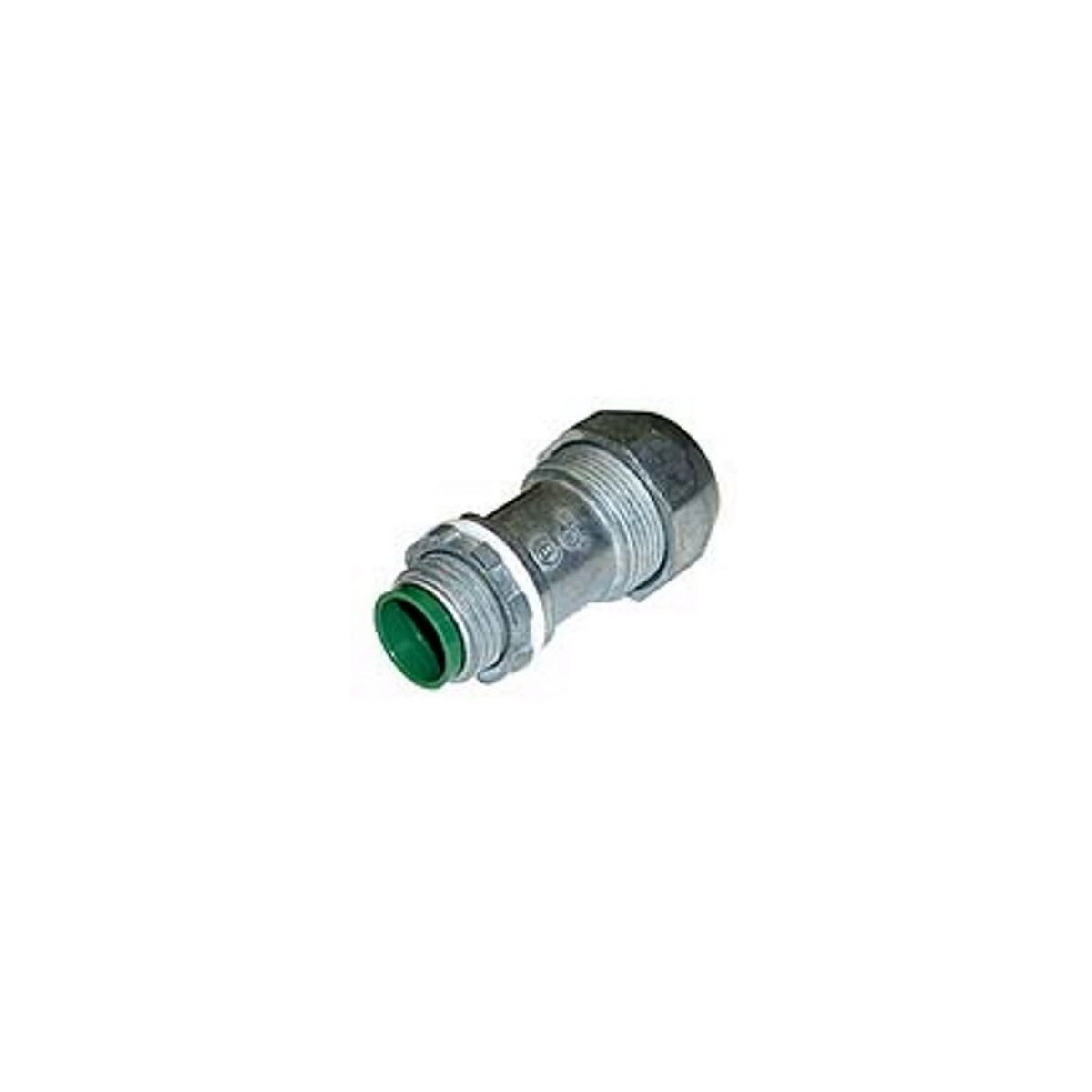

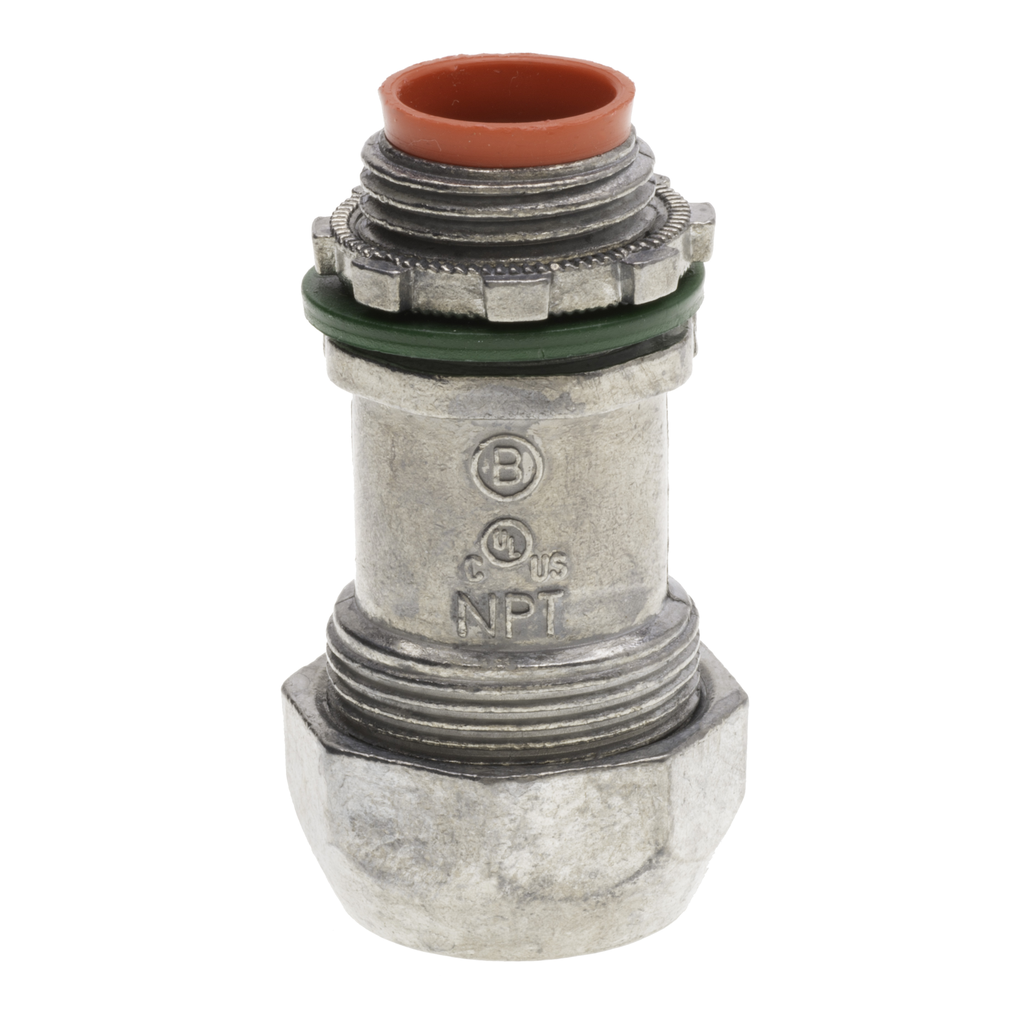

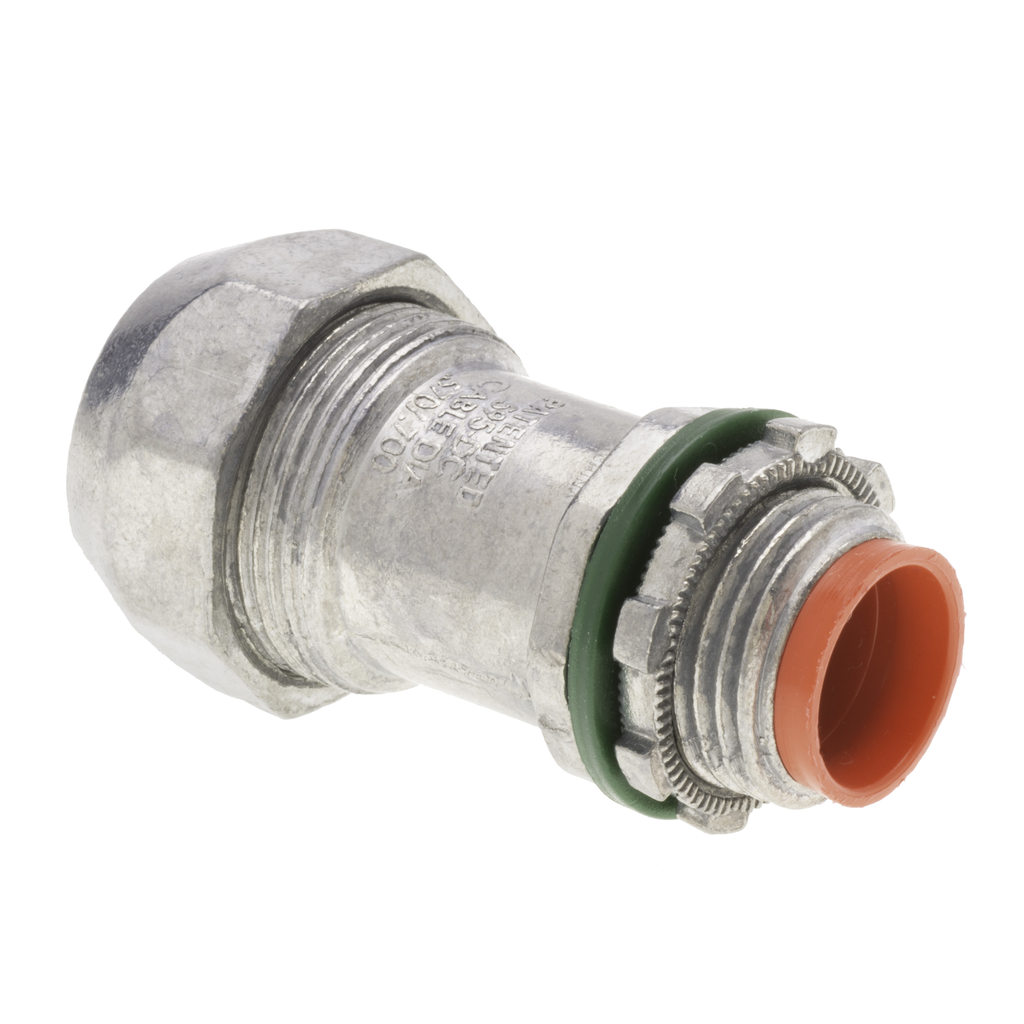

Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 3/8", Insulated

The Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 3/8", Insulated, by Bridgeport Fittings, is designed to connect PVC jacketed MC cable (such as parking deck/lot cable) or TECK cable to electrical boxes or enclosures. This connector provides a durable, corrosion-resistant solution ideal for electrical distributors and lighting solutions suppliers dealing with wire and cable or switchgear applications. It features a heavy-duty, reinforced die cast zinc body with a ball burnish finish and is engineered for rain-tight and concrete-tight sealing, suitable for various NEMA types.

Specifications

• Manufacturer Part #: 595-DCI2
• Material: Zinc Die Cast
• Finish: Ball burnish
• Length: 1.75 in
• Width: 1.21875 in
• Conductor Range: 12/2 to 10/3 AWG
• Number of Conductors: 1 Cable
• Application: Recommended for 12/2 to 10/3 PVC Jacket MC Cable diameter .50 - .61; Rain-Tight and Concrete-Tight
• Product Weight: 0.19415 lbs
• Country of Origin: China

Features

• Insulated throat protects inner wiring from abrasion and supports temperatures up to 105°C
• Heavy-duty die cast zinc body provides durability and corrosion resistance
• Polyethylene gasket creates a concrete-tight seal
• NPT tapered threads allow installation in threaded boxes
• Knockout gasket provides a positive seal at 1/2" knockout
• Compatible with 14/2 to 10/3 AWG jacketed MC and TECK cables
• NEMA TYPE 2, 3, 3R, 4 rated; DC2C versions also rated NEMA TYPE 4X
